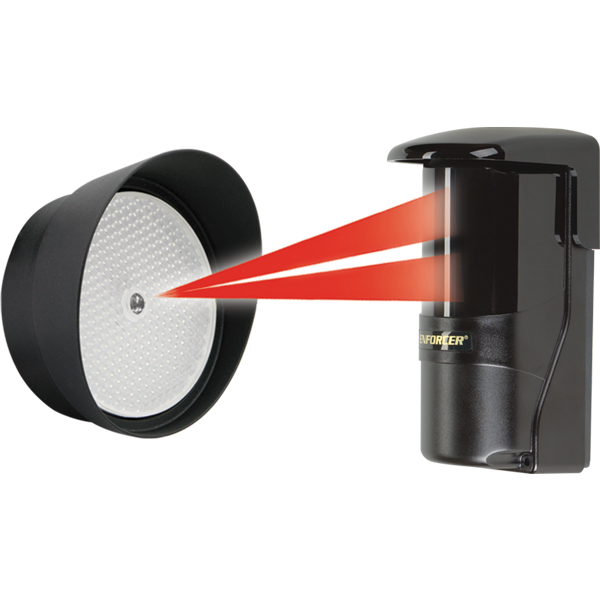

SECO-LARM - E-931-S50RRGQ - Reflective Photobeam Sensor, Range: Up To 50Ft (15M), 12-30Vdc/Vac 60Hz 100Ma
Part number:
E-931-S50RRGQ
Price:
Reflective Photobeam Sensor, range: up to 50ft (15m), 12-30VDC/VAC 60Hz 100mA, Monitored output: N.C./10kΩ Resistor, Form C relay: 500mA@30VAC/VDC, dual-color LED for beam alignment, for outdoor gates/ garage doors/ etc, N.C. tamper circuit, weatherproof for indoor/outdoor use (IP55), Light-On Operation. ETL UL325-2018 Compliant on August 1st.
Features:
- For outdoor gates, garage doors, etc.
- Weatherproof (IP55) construction for indoor/outdoor use
- Anti-condensation housing
- Dual-color LED alignment system
- Form C relay: 500mA@30VAC/VDC
- Tamper switch: N.C. 500mA@30VAC/VDC
- 31/4” (82mm) Round reflector with hood included
- Compact size
- Monitored output: N.C., 10kΩ Resistor
Typical Applications
- For garage or overhead doors, outdoor gates
- Industrial automation: detect objects on manufacturing line
| Type | Reflective photoelectric beam sensor |
| Current Draw | Standby – 55mA@12VDC, Active – 40mA@12VDC |
| Sensing Range | Up to 50′ (15m) |
| Operating Voltage | 12-30V DC/AC 60Hz, 100mA |
| Reaction time | 10ms |
| Light Source | IR LED |
| LEDs – Red | Solid, No beam signal, triggered |
| LEDs – Green | Solid, Good beam signal, properly aligned |
| LEDs | Alternating Flash – Poor beam signal |
| Alarm Output | SPDT relay output (NO/NC/COM) |
| Switching Capacity | 500mA@30VAC/VDC |
| Tamper Switch | 500mA@30VAC/VDC |
| Operating Temperature | -13º~140º F (-25º~60º C) |
| Enclosure | Weatherproof IP55 |
