SECO-LARM - AS-7021 - Stand-Alone Parking Alert
Part number:
AS-7021
Price:
Stand-Alone Parking Alert, Ultrasonic sensor allows precise parking in a garage or parking lot, adjustable sensing distance, simple traffic light colors indicate distance, battery operated with low-battery indicator

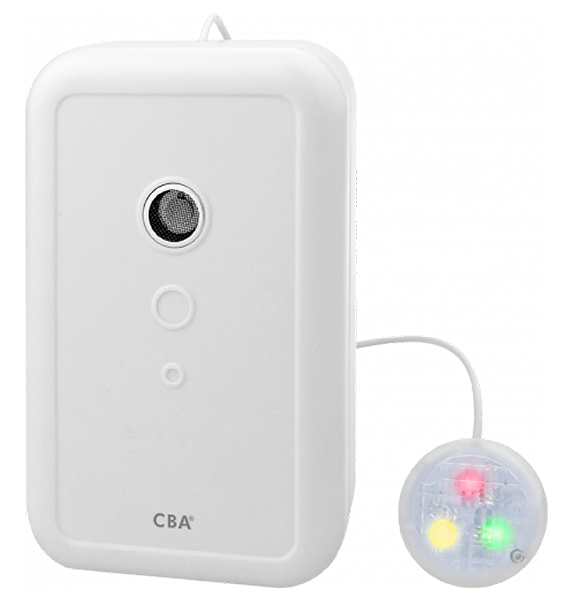

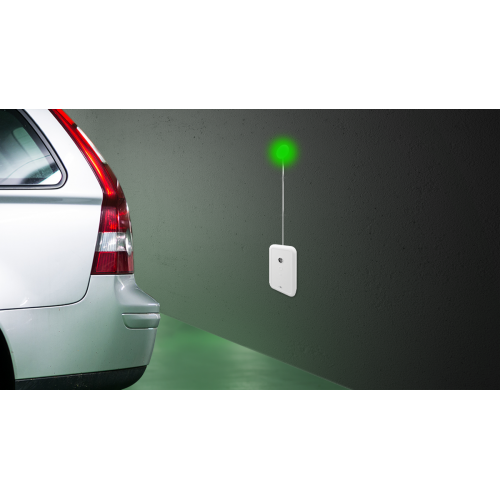

The CBA® AS-7021 Parking Alert allows you to stop in the right spot every time. The sensor uses ultrasonic pulses to determine how far, or close, your vehicle is. Mount this sensor almost anywhere with the included double-sided foam tape, or included screws. Always know when you’ve stopped in the right place!
Features:
- Ultrasonic sensor allows precise parking in a garage or parking spot
- Adjustable sensing distance
- Battery operated with low-battery indicator (batteries not included)
- Wall mountable using either double-sided foam tape or screws
- Simple traffic light colors indicate distance
- Green: Vehicle detected
- Yellow: Warning
- Red: Stop
| Power | 1.5V AA Batteries x4 (not included) |
| Operating Temperature | -40°~185° F (-40°~85° C) |
| Low Battery Indicator | < 4.4 VDC |
| Sensing Range | 5′ (1.5m) |
| Sensor Frequency | 40kHz (ultrasonic) |
| Operating Humidity | 80% or less (non-condensing) |
| Estimated Battery Life | Up to 6 months (5 triggers/day) |
| Material | ABS Plastic |
| Current Draw | Active – 30mA@6VDC, Standby – 10mA@6VDC, Sleep – 0.23mA@6VDC |
| Dimensions | Parking Alert – 5-3/8″x3-3/8″x1-5/16″ (137x85x33 mm), Cable length – 28″ (71cm), LED Module – 1-9/16″ (40mm) |
| Weight | 5.6-oz (158g) |
