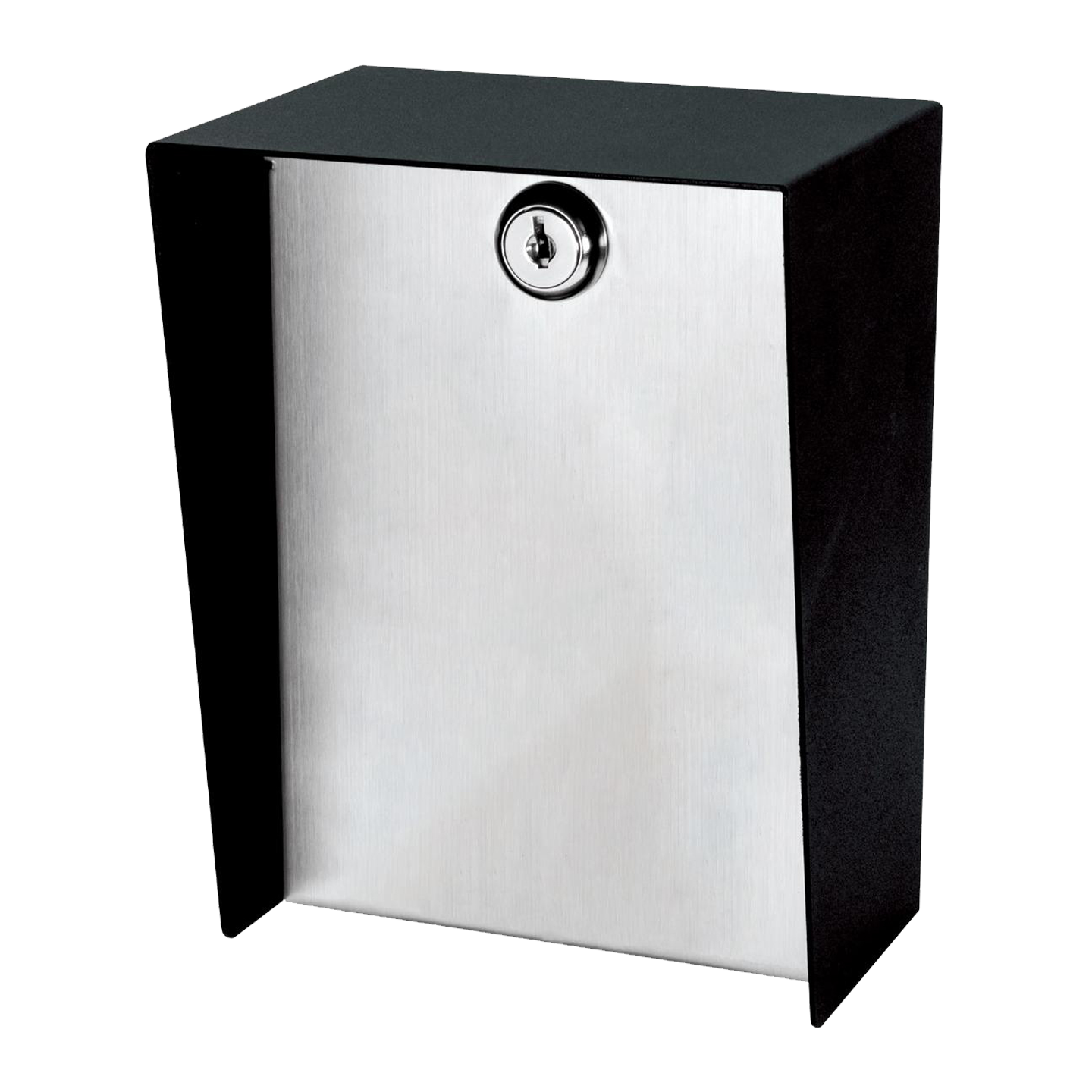

Seco-Larm - BP-601 - Post-Mount Housing – No Cutout, Solid Faceplate
Part number:
Price:

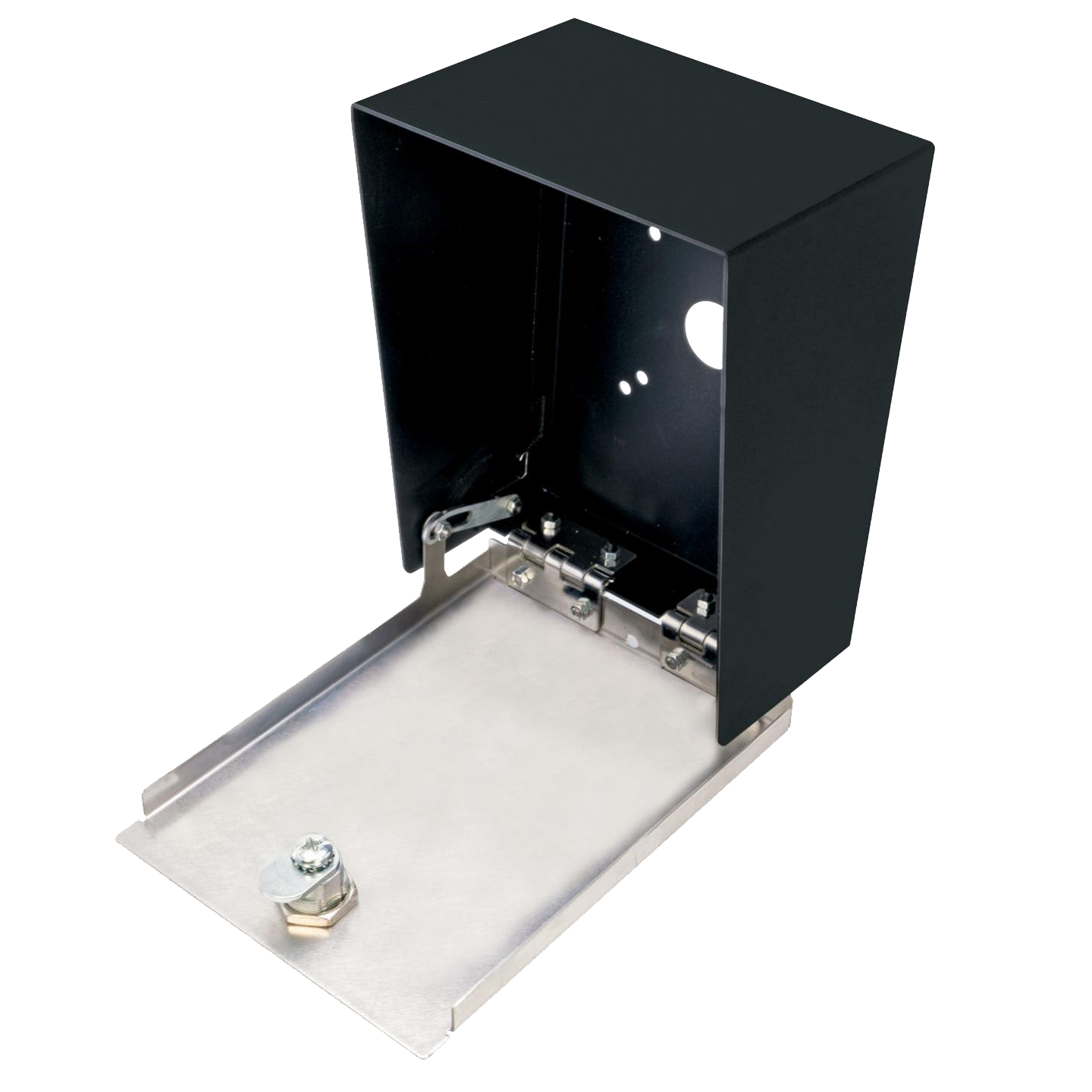

- Easy access, hinged faceplate
- Rugged steel, powder paint housing with stainless steel faceplate
- IP65 Weatherproof
- Cutout dimensions: Overall: 1-7/16″x4-3/16″ (36×107 mm), Effective: 1-7/16″x2-7/8″ (36×73 mm)
| Technical Specifications | |
| Material | |
| Housing | 1/16″ (1.2mm) Steel, powder paint |
| Faceplate | Stainless steel |
| Cutout | No |
| Dimensions | 5″ x 6-9/16″ x 3-11/16″ (127 x 166 x 94 mm) |
| Weight | 2-lb 4-oz (1030g) |
