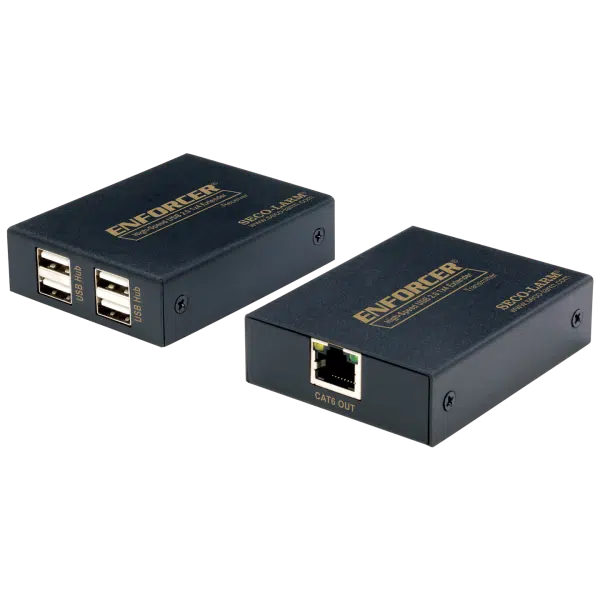

SECO-LARM - DE-S104Q - High-Speed USB 2.0 1×4 Extender
Part number:
DE-S104Q
Price:
The ENFORCER High-Speed USB 2.0 1×4 Extender creates a one-to-one connection through CAT5e/6/7 network cables, transmitting signals up to 492′ (150m). It supports four (4) High-Speed USB 2.0 ports and is compatible with most USB 2.0 devices making it a good choice for office, security, audio/video, and medical facilities.
Features:
- Transmission range up to 492′ (150m) with Cat6/7 cable
- Supports four (4) High-Speed USB 2.0 inputs and one (1) High-Speed USB 2.0 output
- Compatible with Cat5e/6/7 network cables
- Plug and Play
- Extend transmission further with Gigabit switch support
- Hot-Plug USB (auto-detects USB type — High-Speed, Full-Speed, and Low-Speed)
| Compliance | USB 2.0 |
| Maximum speed | 480Mbps |
| Maximum range | CAT5e: Up to 328′ (100m) CAT6/6A/7: Up to 492′ (150m) |
| Switch extension | Supports Gigabit switches |
| USB Hot-Plug | Yes |
| USB-A | Transmitter: One (1) output port Receiver: Four (4) input ports |
| Cable | CAT5e, CAT6, CAT6A, CAT7 |
| Power supply | Transmitter: Powered by device. Receiver: 1A@5VDC |
| Power consumption | Transmitter & Receiver: ≤2W |
| Operating humidity | 0~90% (non-condensing) |
| Operating temperature | -4°~140° F (-20°~60° C) |
| Dimensions | 3″x13/16″x2-1/2″ (76x21x60 mm) |
| Weight | Transmitter: 4.3-oz (123g) Receiver: 4.5-oz (128g) |
