SECO-LARM - DP-264-1C7Q - Hands-Free Video Door Phone
Part number:
DP-264-1C7Q
Price:

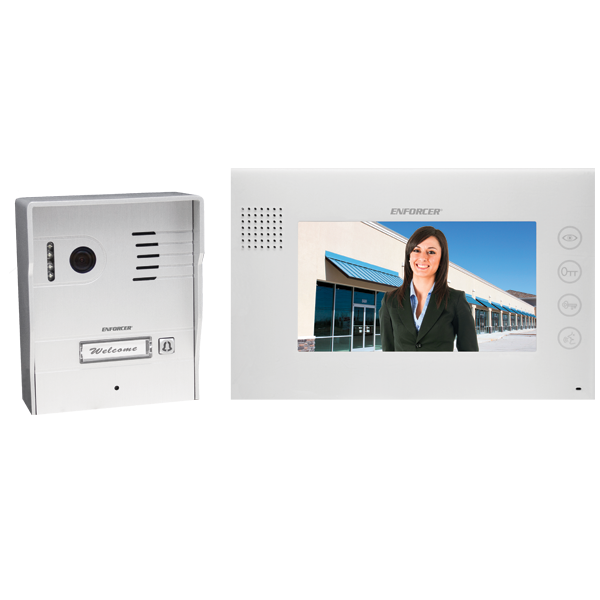

Hands-Free Color Video Door Phone. Includes color CMOS camera with 700 TV lines, 2.1mm lens, and monitor with 7-inch TFT display. Four LEDs for Day/Night use. Simple 2-wire connection. Optional secondary monitor available DP-264-M7Q, and secondary camera DP-264-CQ.
Features:
- Simple 2-wire connection
- Remotely and securely talk to visitors and unlock doors, gates, etc. from the monitor
- Easily connect 2 additional monitors and an additional camera
- Camera has four IR LEDs for nighttime operation
- Built-in microphone and speaker for hands-free two-way communication
- Soft-touch button operation
- Adjustable color tone, brightness, speaker, and ringer volume
- 700 TV Lines resolution, large 7″ screen
| Display | Monitor: 7″ Color TFT |
| Operating voltage | Monitor: 18VDC |
| Relock delay | Monitor:5 seconds |
| Current draw | Camera: 150mA Monitor: Active: 555mA, Standby: 20mA |
| E-lock delay | Monitor: 1 second |
| IP Rating | IP65 Weatherproof (Camera only) |
| Type | Color camera |
| CMOS | Camera: 1/3″ CMOS sensor |
| Resolution | Camera: 700 TV lines |
| Lens | Camera: 2.1mm |
| Relay output | Camera: 3A@30VDC max. dry contact |
| Operating temperature | Camera: -13°~149°F (-25°~65°C) |
| Weight | Camera: 1-lb, 6-oz (750g) Monitor:1-lb, 2-oz (560g) |
| Dimensions | Camera:4-7/16″x5-3/8″x2-1/16″ (112x136x52 mm) Monitor:9-1/2″x6-5/16″x1″ (241x161x25 mm) without sunshield |
Name
Description
Size
Downloads
File
Manual
1.5mb
File
Product Information Sheet
0.8mb
