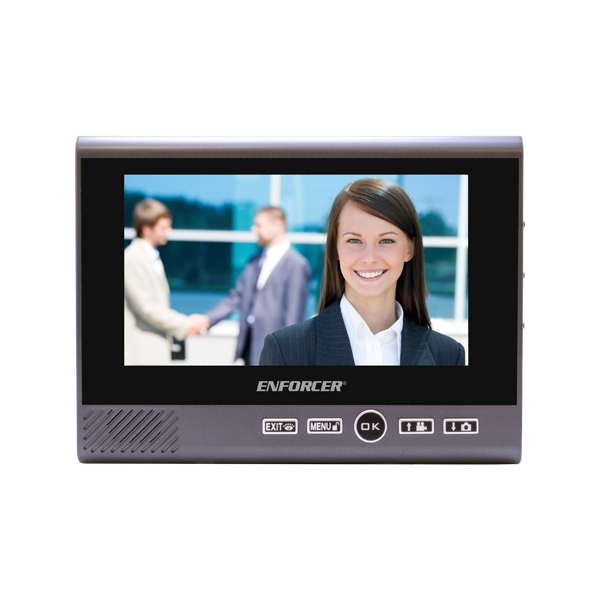

SECO-LARM - DP-266-M7Q - Additional Monitor for DP-266-1C7Q
Part number:
DP-266-M7Q
Price:
Additional 3" Wireless Color Video Door Phone Monitor for DP-266-1C3Q. Additional Monitor for the DP-266-1C7Q Wireless Video Door Phone, catalogs and dealer information regarding security systems and accessories for residential and commercial.
Features:
- Remotely and securely talk to visitors and unlock doors or gates via the monitor
- Monitor can be carried around the premises while talking to the visitor

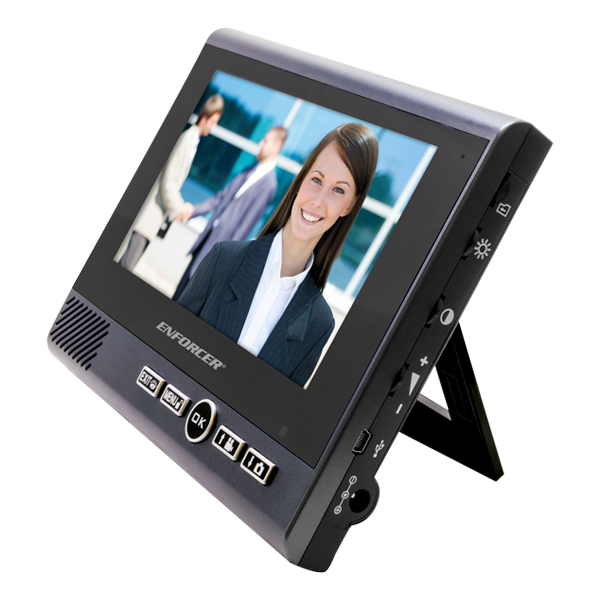

- Monitor includes a kickstand
| Display | 7″ (178mm) TFT |
| Operating voltage | 12VDC (adapter) or 3.7VDC (battery) |
| Current draw | Active: 600mA@3.7VDC, Standby: 5mA@3.7VDC |
| Battery life | Active: ~2.5 Hours, Standby: ~7 days |
| Antenna gain | 0dBi |
| Modulation type | GFSK |
| Operating frequency | 2402~2480MHz |
| RF power | 120mW |
| Wireless range | 492′ (150m) |
| Operating temperature | 32°~95° F (-5°~35° C) |
| Dimensions | 8″x6″x11/8″ (203x153x27 mm) |
| Weight | 1.2-lbs (544g) |
