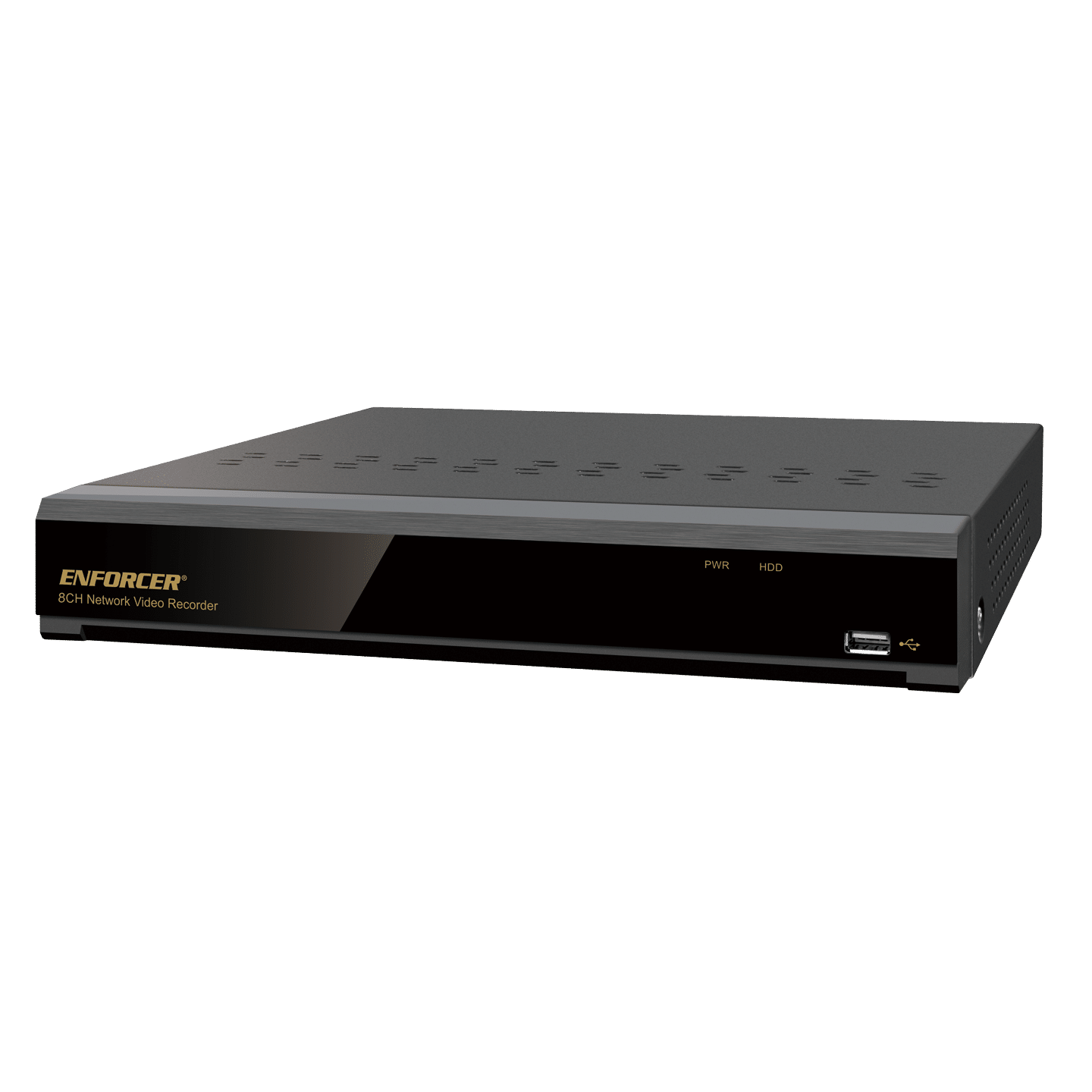

SECO-LARM - DRN-108-2TB - 4K Network Video Recorder - 8-Channel, 2TB HDD
Part number:
DRN-108-2TB
Price:

The ENFORCER Network Video Recorder offers 4K and H.265 High Efficiency Video Coding, reducing bandwidth and storage requirements without giving up video quality. These NVRs are perfect for a wide range of applications due to their cost-effectiveness and simple-to-install design.



Features:

  • Compatible with up to 8MP (4K) IP Cameras
  • QR code and Wizard assistance for easy first-time setup
  • Plug-and-Play
  • Built-in PoE Ports (IEEE 802.3af/at)
  • VGA and HDMI outputs with up to 4K resolution
  • Other HDD sizes available by special order, including 1/2/4/6/8/10 TB
  • ONVIF® profiles S conformant
  • Tri-stream encoding
  • Live view recording and playback up to 4K@30FPS
  • P2P for simple remote connections using PC or mobile device


AI Functions:

  • Face detection
  • Human & vehicle detection
  • Perimeter intrusion detection
  • Line crossing detection
  • Stationary object detection
  • Cross counting
  • Heat map
  • Crowd density detection
  • Queue length detection
  • License plate detection
  • License plate recognition


With EV-N2806-2W4WQ 8MP Turret Camera (optional):

  • Facial recognition
Video
Resolution8MP (4K), 5MP, 2MP (1080p), 1.3MP (960p), 1.0MP (720p)
Incoming bandwidth76Mbps
Outgoing bandwidth32Mbps
HDMI Output1024×768, 1280×720, 1280×1024, 1440×900, 1920×1080, 2560×1440, 3840×2160 (4K)
VGA Output1024×768, 1280×720, 1280×1024, 1440×900, 1920×1080
Frame rate4K: Up to 30FPS, 4MP: Up to 60FPS, 2MP: Up to 120FPS
CompressionH.265+, H.265, H.264+, H.264
AISupport
Playback functionsFast forward / backward (2x, 4x, 8x, 16x), Slow forward (1/2x, 1/4x, 1/8x, 1/16x)
User Interface
LocalUI5.0
WebIE10/11, Safari V12.1 above, Firefox V.52 above, Google Chrome V.57 above, Edge V.79 above
Auxiliary Interface
HDMI Output1 Output
VGA Output1 Output
PoE Input8x RJ45
USBUSB 2.0 x 1 front & 1 rear
Alarm I/ONone
Included HDD2TB SATA
Internal storage capacity1 SATA HDD, up to 10TB
General
Power supply48VDC@1.5A
Power consumption6W
Dimensions (WxDxH)11-11/16″ x8-15/16″ x2-1/16″ (300x227x53 mm)
Operating temperature32°~104°F (0°~40°C)
HumidityLess than 90%RH
