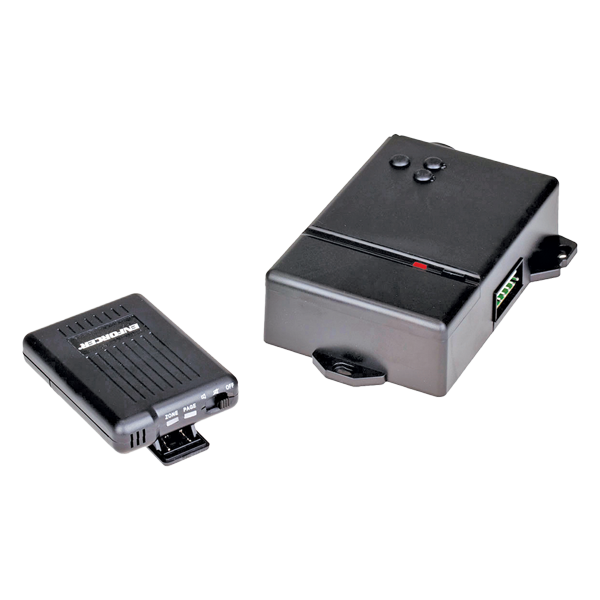

SECO-LARM - E-37EV - 3-Zone RF Alarm Pager System
Part number:
E-37EV
Price:
3-Zone alarm pager system. Includes E-37RV vibrating receiver. (Not compatible with E-35EV or E-35RV.)
Features:
- Over two million possible coding combinations
- Belt-clip receiver included
- Code-learning receiver learns up to three transmitters
- Audible or vibration page indicator
- Color LEDs on the receiver indicate which zone (Green, Orange, or Red) of the premises or vehicle was triggered
- EEPROM memory stores codes for up to one year without power
- Stores the last six pages for easy recall
- Unattended page indicator
- Low battery indicator
- Uses two AAA batteries (not included)
- Extra vibrating receiver available (E-37RV)
- Connect to a CB antenna, car AM radio antenna (cable included), or optional external antenna (E-37ANT)
Hardware Features (E-37EV Transmitter only):
- Alarm trigger or manual page zone indicator. Color LEDs (Green, Orange, Red)
- Alarm page or car/premises indicator display: Color LEDs (Green, Orange, Red)
- Low battery indicator
- Power antenna indicator
| Operating Voltage | Transmitter- 12VDC, Receiver- 3VDC (2 AAA batteries ) |
| Number of Codes | Transmitter- Over 2 million (factory pre-set), Receiver- Learns up to 3 transmitter codes |
| Current Draw | Transmitter- Standby: 10mA@24VDC, Active: 1A; Receiver- Standby: 1mA, Active (beep): 20mA, Active (vibrate): 50mA |
| Battery Life | One month (Receiver, Batteries not included.) |
| RF Frequency | 27MHz (Transmitter) |
| Antenna Impedance | 50Ω (Transmitter) |
| Range | Up to 1/2 mile in open air (Transmitter) |
| Dimensions | Transmitter- 4-1/8″ x 3-1/8″ x 1-5/16″ (105 x 79 x 33 mm), Receiver- 3″ x 2-1/8″x 5/8″ (76 x 54 x 16 mm) |
| Weight | Transmitter- 5.1-oz (145g), Receiver- 1.6-oz (45g) (without battery, Batteries not included.) |
Name
Description
Size
Downloads
File
Product Information Sheet
0.5mb
File
MANUAL
0.2mb
