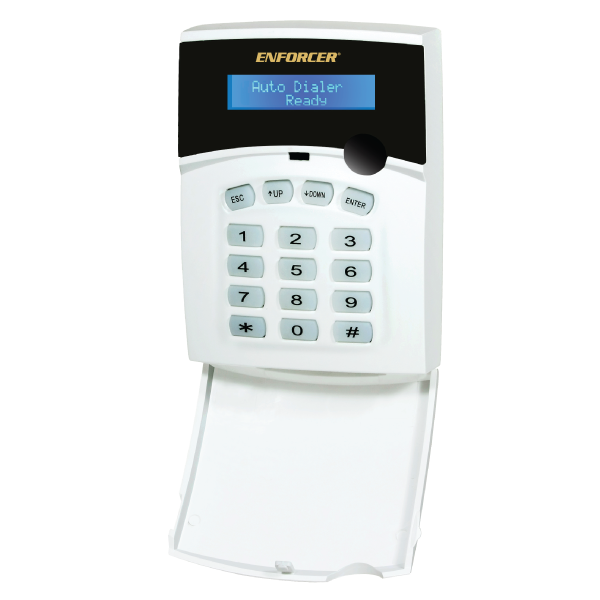

When triggered by an alarm system, the ENFORCER Voice Dialer can dial up to 6 numbers (up to 3 times for each number) and deliver an 18-second user-recorded message, repeating up to two times. The last 6 seconds of the message can be customized depending on which of the three inputs has triggered the alarm. Each number can contain up to 14 digits, including the number, tones, and pauses. The receiver can then listen in, stop further dialing of alarm numbers, or trigger an auxiliary relay output connected to an external device such as a door lock, siren, strobe light, etc. The user is able to listen in by remote call in as well as trigger or turn off the auxiliary relay.

Features:

• Trigger-activated dialer with user-recorded 18-second alarm message
• The last 6 seconds of the alarm message is individually customizable for each input
• 3 Trigger inputs and 1 inhibit input, each programmable high (input >3.5V) or low (input <1V)
• 1 Auxiliary relay output, NO/NC programmable for 1~255 seconds
• Works as a stand-alone unit or connected to a security system
• LCD display indicates status, either “ready” or “alarm” showing which input and number dialed
• Listen in, stop the dialing process, and/or turn the auxiliary output on or off during dialer call out
• Call in at any time to listen in to room and/or turn the auxiliary output on or off
• 6 Programmable alarm telephone numbers (up to 14 digits each)
• Programmable auto-dialing to call each number three times or call a single number
• Built-in flash memory to protect against system data loss in case of power failure
• Tone or pulse dialing
• Terminal blocks for all external connections
• Wall-mountable
