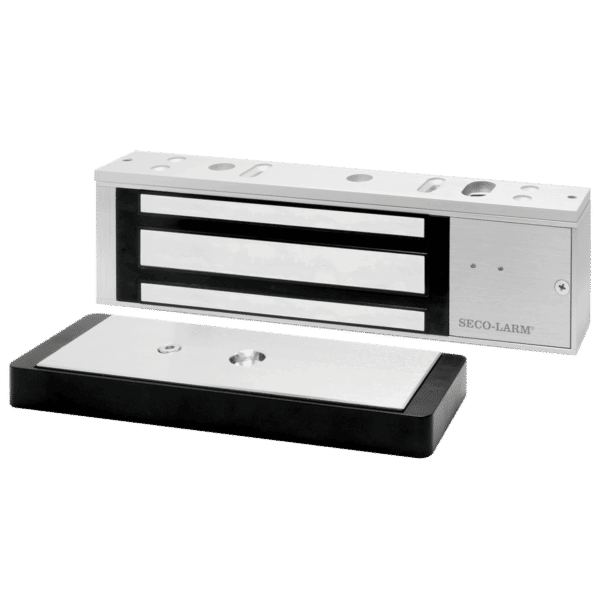

The E-941Sx series of electromagnetic locks is the ideal way to secure a door against unauthorized entry. When power is applied to the electromagnetic lock, it creates an extremely strong magnetic field. The electromagnet is strongly attracted to the steel armature plate which is mounted on the secured door. Once the electromagnet is deactivated, the secured door will function normally without any residual magnetism.

Features:

• Built-in bond sensor with 3A dry relay output for monitoring door lock status
• Built-in dual-color status LED shows lock status
• Built-in door position sensor shows open/closed status (1 /2" gap)
• Armature plate holder for door position sensor
• Dual voltage: 12/24VDC selectable
• Anodized aluminum housing (US28)
• No residual magnetism
• MOV surge protection
• Detachable faceplate
• Adjustable mounting bracket
• Complete mounting hardware for typical installations
• "L" bracket (E-941S-600/LQ, E-941S-1K2/LQ), "Z" brackets (E-941S-600/ZQ, E-941S-1K2/ZQ) available for easy mounting
