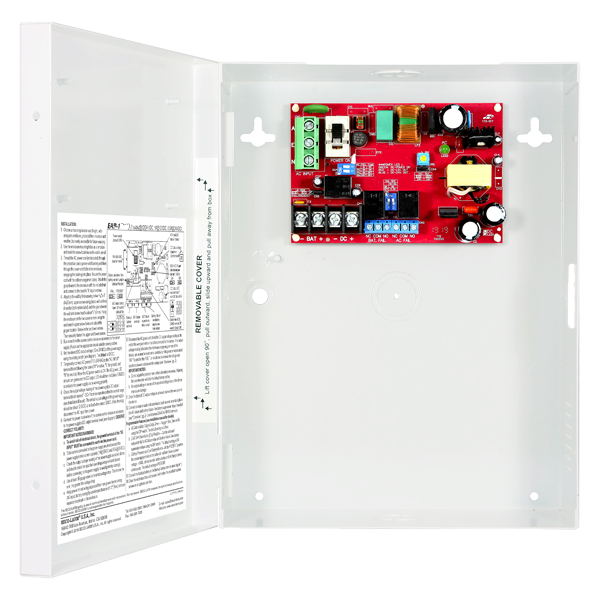

SECO-LARM - EAP-1D1Q - Access Control Power Supply, 1 Output, 1A Total

Access Control Power Supply in enclosure. 12 or 24 VDC output voltage. 1 Output, 1A@12VDC (1A@24VDC). Heavy-duty steel case.

Features:

• Input 110~240 VAC, fused at 3.15A
• Filtered and electronically regulated output
• AC Input and DC output LED status indicators
• Adjustable output voltage to compensate for voltage drop
• AC power failure supervision relay
• Overcurrent fuse-protected AC input
• Automatic shutdown for overcurrent / short-circuit protection
• 12/24 VDC Outputs, field selectable
• Battery failure / low battery supervision relay
• Built-in back-up battery charger (Batteries not included)
• Automatically switch to backup battery if AC fails
• Selectable 2.2k3 End-of-Line (EOL) resistor for AC failure and battery failure supervision relays
• Selectable delay timer (5sec, 5min, 5h) for AC failure supervision relay via DIP switch​

Enclosure

• Heavy-duty steel case with removable cover for easy access to connections
• Ventilation holes to prevent heat buildup
• Room for one 7Ah battery or two 4AH batteries (Batteries not included)
• Knockouts for power connections and optional cam lock
• Dimensions: 73/4 “x101/16“x39/16” (197x255x91 mm)
