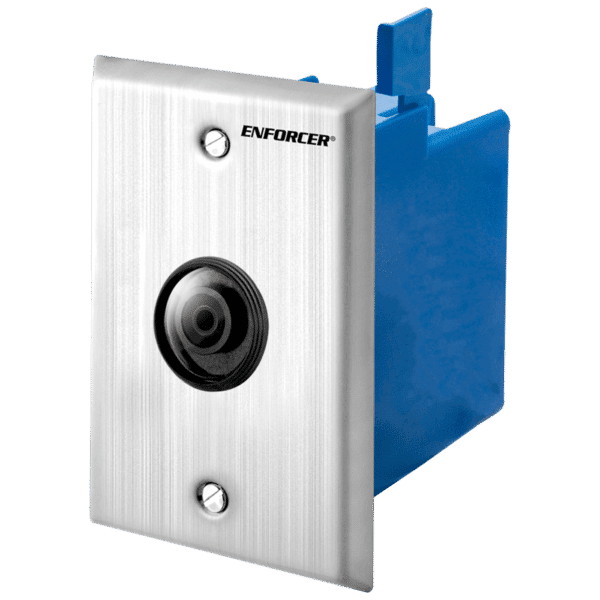

SECO-LARM - EV-N5205-3S4Q - IP Wall-Plate Camera
Part number:
EV-N5205-3S4Q
Price:
- • 1/2.8″ 2MP Sony STARVIS CMOS
- • H.265, H.264/MJPEG, Tri-stream IP Camera
- • Max. 30FPS/Full HD 2MP (1920×1080)
- • 2.5mm lens with ICR
- • Remote access via web browser
- • Event Alarm, E-mail, FTP Function
- • Vandal-resistant metal front panel
- • 3DNR & D-WDR
- • 12VDC, PoE (IEEE 802.3af)
- • IP65 Weather-resistant
| Type | Wall-plate Camera |
| Sensor | 1/2.8″ 2MP Sony STARVIS™ CMOS |
| Video encoding | H.265, H.264, MJPEG |
| Resolution | 2MP, (1920×1080) |
| DNR | 2DNR: Yes |
| 3DNR: Yes | |
| D-WDR | Yes |
| Lens | 2.5mm ICR |
| Viewing Angle | 120° |
| Minimum Illumination | 0.01 Lux |
| F Stop | 2 |
| Gamma correction | 0.45 |
| S/N Ratio | 50dB |
| Gain control | Auto |
| White balance | Auto |
| Operating voltage | 12VDC, PoE (IEEE 802.3af) |
| Current draw | 140mA max. |
| Operating temperature | 32°~122° F (0°~50° C) |
| Dimensions | 2-3/4″x4-1/2″x3-1/16″ (70x114x78 mm) |
| Weight | 3.8-oz (110g) |
Name
Description
Size
Downloads
File
Product Information Sheet
0.2mb
File
Manual
0.2mb
