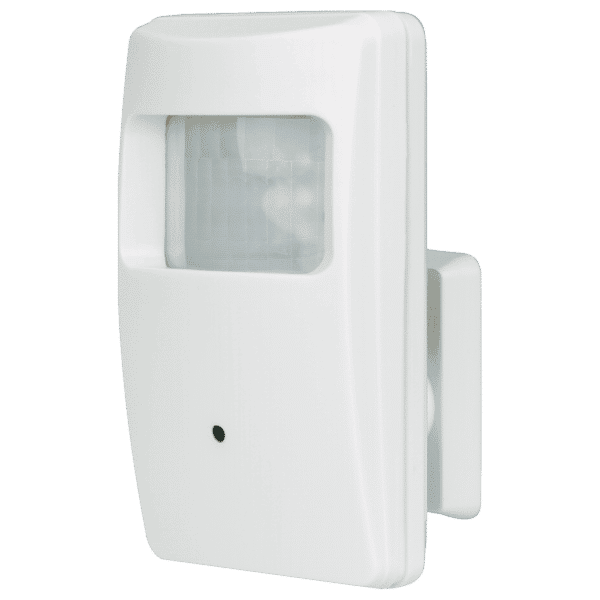

SECO-LARM - EV-N6506-3W4Q - 5MP IP Covert PIR Camera, 3.7mm pinhole lens, 2D digital noise reduction, digital wide dynamic range, 1/2.8" 5MP Sony CMOS, 1440p resolution, H.265/MJPEG, Dual Stream. ONVIF Profile S, 12VDC, PoE, low-profile design, 18 co
Part number:
EV-N6506-3W4Q
Price:
IP Covert PIR Camera
Features:
- 1/2.8” 2MP Sony STARVIS™ CMOS
- H.265, H.264/MJPEG, Tri-stream IP Camera
- Max. 30FPS/Full HD 2MP (1920×1080)
- IP65 Weatherproof*
- Remote access via web browser
- Network Bandwidth Control
- Event Alarm, E-mail, FTP Function
- ONVIF Profile S
- Vandal-resistant metal front panel
- 3DNR & D-WDR
- 12VDC, PoE (IEEE 802.3af)
*Use silicone sealant for weatherproof installation
| Type | Wall-plate Camera |
| Image sensor | 1/2.8″ 2MP Sony STARVIS™ CMOS |
| Resolution | 2MP, (1920×1080) |
| Viewing Angle | 120° |
| 3D-NR | Yes |
| 2D-NR | Yes |
| DWDR | Yes |
| Megapixels | 2MP |
| Minimum Illumination | 0.01 Lux |
| Video Encoding | H.265, H.264, MJPEG |
| Lens | 2.5mm |
| F Stop | 2.0 |
| S/N Ratio | 50dB |
| Operating Voltage | 12VDC, PoE (IEEE 802.3af) |
| Current Draw | 140mA max. |
| Gamma Correction | 0.45 |
| Gain Control | Auto |
| White Balance | Auto |
| IP Rating | IP65 Weatherproof |
| Operating Temperature | 32°~122° F (0°~50° C) |
| Dimensions | 2-3/4″x4-1/2″x3-1/16″ (70x114x78 mm) |
| Weight | 3.8-oz (110g) |
