SECO-LARM - EV-Y1501-A2WQ - 4-in-1 HD Fixed Bullet Camera
Part number:
EV-Y1501-A2WQ
Price:

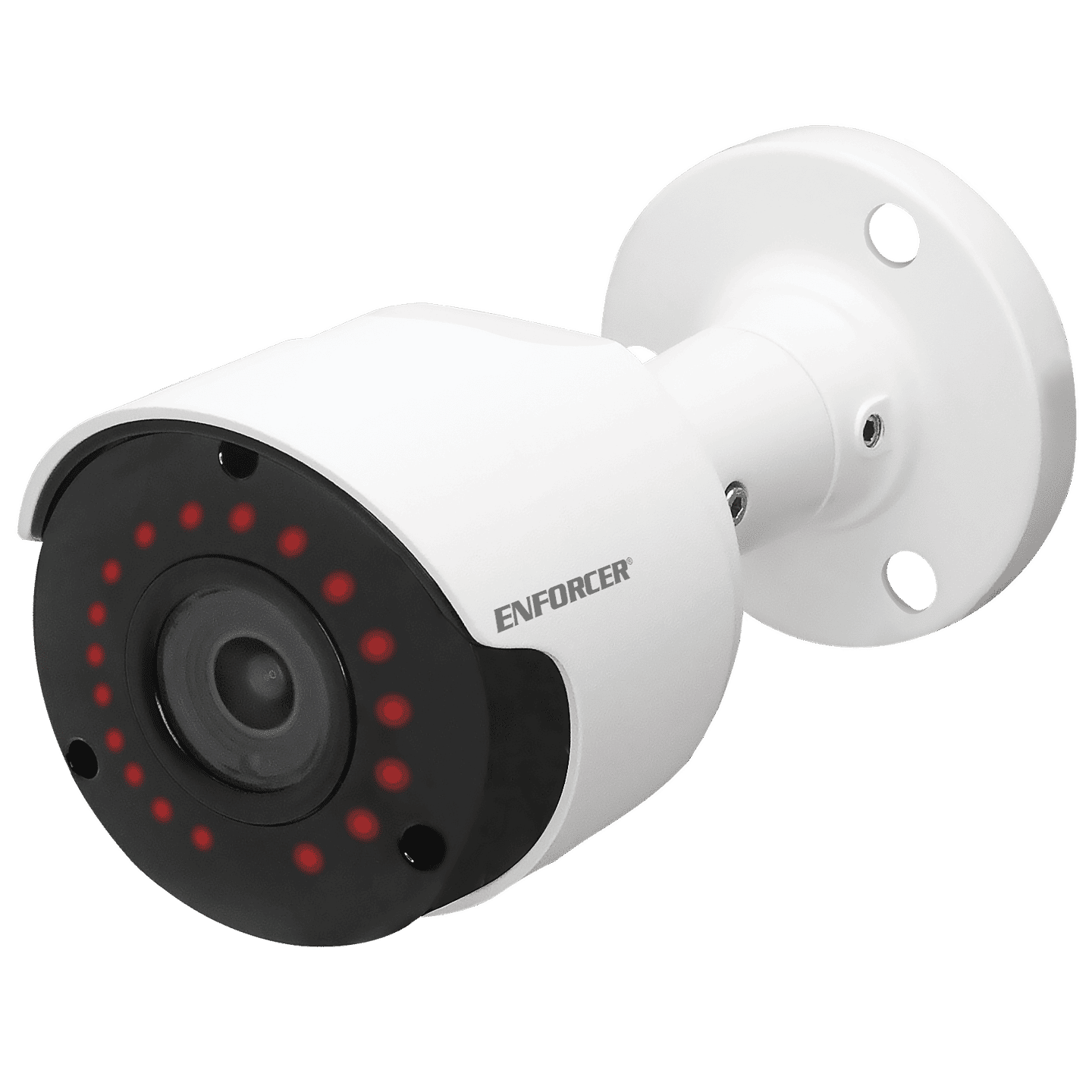

5MP 4-in-1 HD Fixed Bullet Camera, 2.8mm lens, 2592x1944 resolution, 1/2.7" 5MP CMOS, DWDR/2D-NR, TVI/CVI/AHD/Analog format, up to 50' illumination, 18 SMT IR LEDs, Joystick OSD Control, 121º viewing angle, 12VDC, weather-resistant (IP66), cables concealed in bracket to prevent tampering, white housing.
Features:
- 5MP Resolution
- ICR Module
- Joystick OSD Control
- 2DNR (Digital Noise Reduction)
- D-WDR (Digital Wide Dynamic Range)
- Rugged, weatherproof (IP66) construction
- Cables concealed in bracket to prevent tampering
| Housing color | White |
| Formats | TVI (Default) / CVI / AHD / Analog (CVBS) |
| CMOS | 1/2.7″ 5MP CMOS |
| Resolution (HD) | 2592×1944 |
| 2DNR | Yes |
| D-WDR | Yes |
| OSD (On-Screen Display) | Yes |
| Cable OSD control | Yes |
| Megapixels | 5MP |
| Lens | 2.8mm ICR |
| Viewing Angle | 121° |
| # of IR LEDs | 18 (SMT) |
| IR Range | Up to 50ft (20m) |
| FPS | 20FPS |
| F Stop | 2.0 |
| Minimum illumination – IR On | 0Lux |
| Minimum illumination – IR Off | 0.05Lux |
| S/N Ratio | 35dB |
| Shutter control | Auto |
| Gain control | Auto |
| Operating voltage | 12VDC |
| Current Draw – IR On | 320mA |
| Current Draw – IR Off | 80mA |
| IP Rating | Weatherproof IP66 |
| Operating temperature | -22°~131° F (-30°~55° C) |
| Dimensions | 5-1/2″ x 2-3/4″ x 2-13/16″ (140x69x71 mm) |
| Weight | 12.3-oz (349g) |
