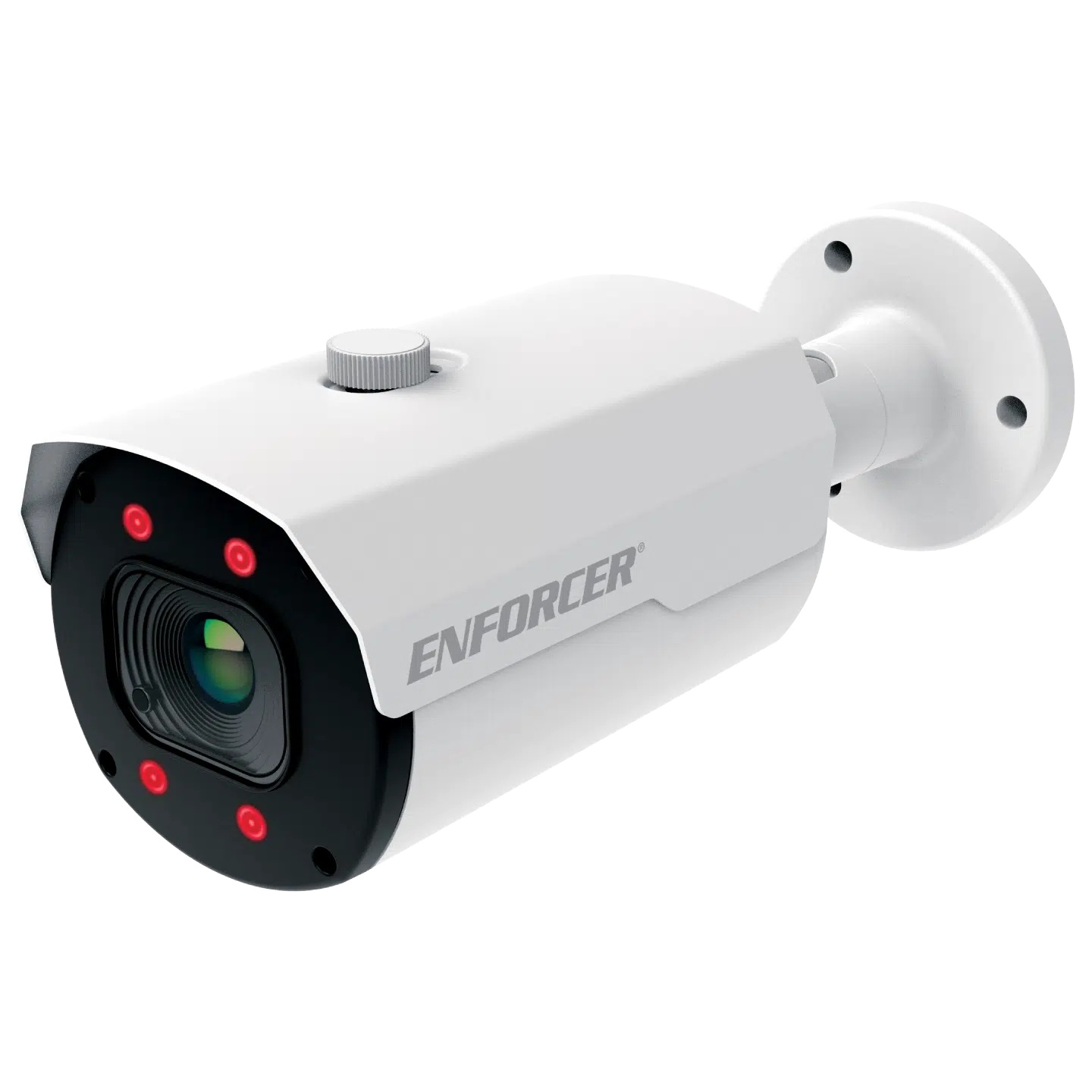

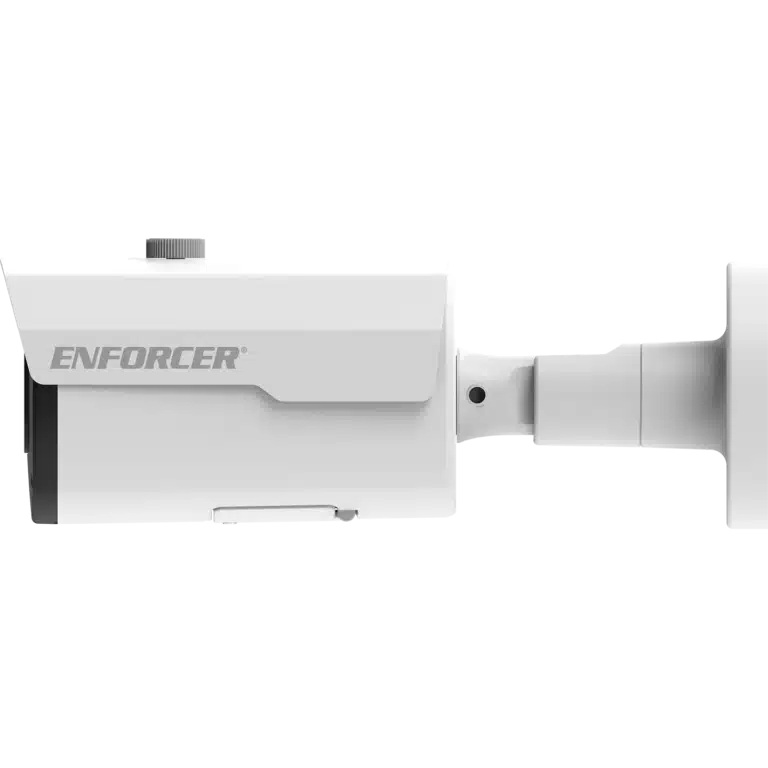

SECO-LARM - EV-Y1501-AMWWQ - 5MP 4-in-1 HD Varifocal Bullet Camera, 2.8~12mm lens, 2592x1944 resolution, 1/2.7" 5MP CMOS, DWDR/2D-NR, TVI/CVI/AHD/Analog format, up to 115' illumination, 30 SMT IR LEDs, Joystick OSD Control, weather-resistant (IP66),
Part number:
EV-Y1501-AMWWQ
Price:
The ENFORCER HD 5MP Varifocal Bullet Camera offers high-resolution video and advanced technology in a compact and accessible package. With True Wide Dynamic Range (WDR), Digital Noise Reduction (3DNR) and Day/Night (ICR) capabilities, the camera provides excellent picture quality.
Features:
- 1/2.8″ 5MP Sony CMOS Sensor
- 5MP@20FPS, (2592×1944)
- 2.8~12 mm Varifocal lens
- TVI, CVI, AHD, CVBS (Analog)
- True Wide Dynamic Range (WDR)
- 3D Digital Noise Reduction (3DNR)
- True Day & Night Function with ICR Module
- IR Range 115′ (35m)
- Operating temperature: -40°~131° F (-40°~55° C)
- Rugged weatherproof construction (IP66)
- Heavy-duty vandal-resistant design
- Cables concealed in bracket to prevent tampering
- 12VDC
- Junction box is not included with the product
Camera
| Image sensor | 1/2.8″ 5MP Sony CMOS sensor |
| Effective pixels | 2592(H)x1944(V) |
| Formats | TVI (Default) / CVI / AHD / Analog (CVBS) |
| OSD (On-screen display) | Yes |
| S/N ratio | 35db |
| Minimum illumination | Color: 0.05Lux at F1.2 (AGC on) 0Lux with IR on |
| IR Distance | Distance up to 115′ (35m) |
| IR LEDs | 4x 850nm LEDs |
Lens
| Lens type | Varifocal |
| Focal length | 2.8~12 mm |
| Maximum aperture | F1.8~3.3 |
| Field of view | 37°~134° |
Video
| Resolution | 2592×1944 |
| WDR | Yes |
| Shutter control | Auto |
| White balance | Auto |
| Gain control | Auto |
| Noise reduction | 3DNR |
| Privacy masking | Off, on (4 areas, rectangle) |
Certifications
| Certfications | CE, FCC, RoHS |
Electrical
| Operating voltage | 12VDC |
| Current Draw | IR On: 440mA, IR Off: 80mA |
Environmental
| Operating conditions | -40°~131° F (-40°~55° C) |
| IP Rating | IP66 Weatherproof |
Construction
| Casting | Metal |
| Dimensions | ø3-5/16″x9-1/2″ (ø84×242 mm) |
| Weight | 1-lb 6-oz (760g) |
