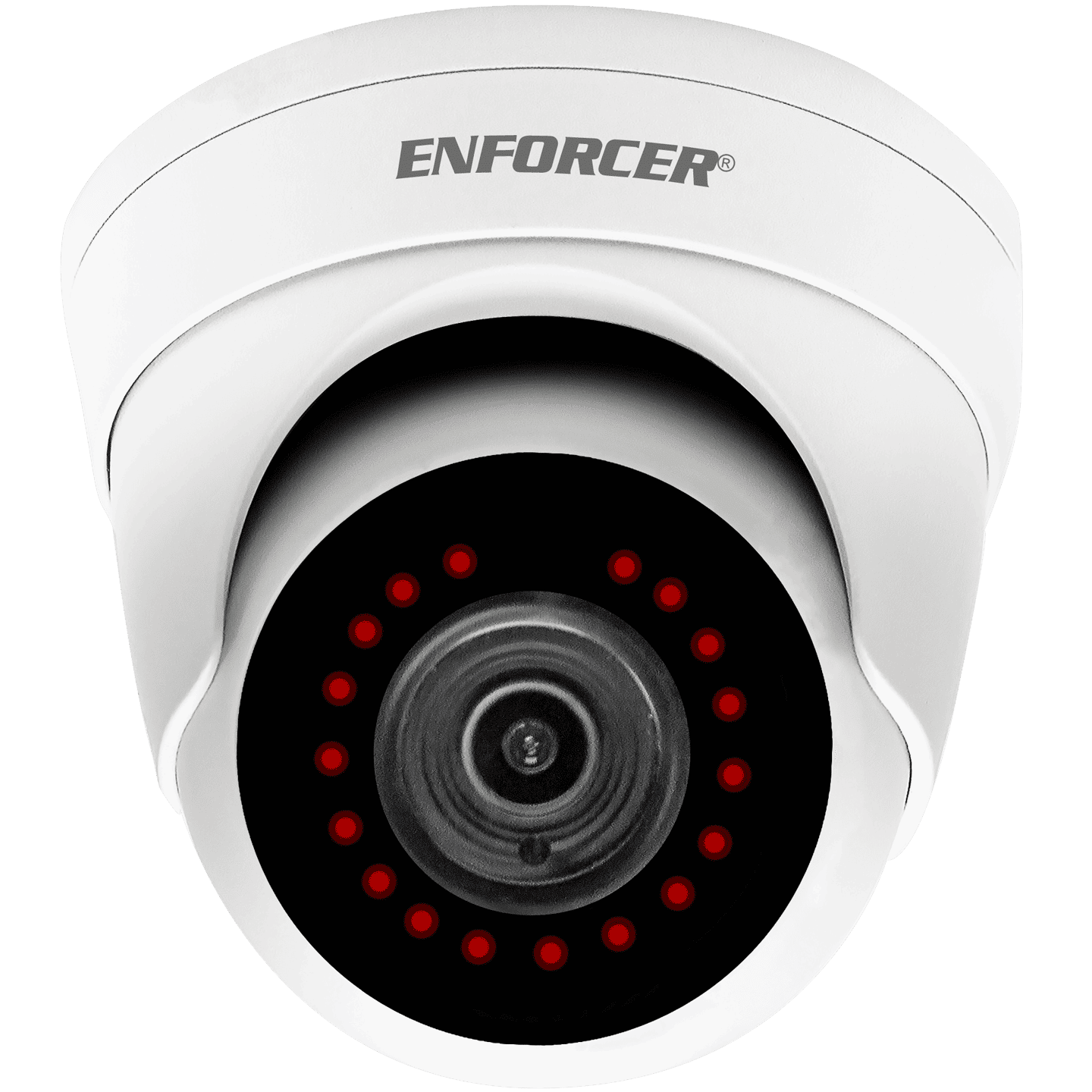

SECO-LARM - EV-Y2251-A2WQ - 2MP 4-in-1 HD Fixed Turret Camera, 2.8mm lens, 1920x1080 resolution, DWDR/2 and 3D-NR, TVI/CVI/AHD/Analog format, up to 65' illumination, 18 SMT IR LEDs, Joystick OSD Control, 121º viewing angle, 12VDC, vandal-resistant an
Part number:
EV-Y2251-A2WQ
Price:
2MP 4-in-1 HD Fixed Turret Camera, 2.8mm lens, 1920x1080 resolution, DWDR/2 and 3D-NR, TVI/CVI/AHD/Analog format, up to 65' illumination, 18 SMT IR LEDs, Joystick OSD Control, 121º viewing angle, 12VDC, vandal-resistant and weather-resistant, white housing
The EV-Y2251-A2WQ provides a high definition output in multiple formats suitable for any HD analog installation. It can be installed indoors or outdoors.
Features:
- 2MP Resolution
- ICR Module
- 2DNR & 3DNR (Digital Noise Reduction)
- Heavy-duty vandal-resistant design
- Rugged, weatherproof (IP66) construction
- Split-glass design eliminates IR reflection
- Cables concealed in bracket to prevent tampering
| Housing color | White |
| Formats | TVI (Default) / CVI / AHD / Analog (CVBS) |
| CMOS | 1/2.7″ 2MP CMOS |
| Resolution (HD) | 1920×1080 |
| 3DNR | Yes |
| 2DNR | Yes |
| D-WDR | Yes |
| OSD (On-Screen Display) | Yes |
| Cable OSD control | Yes |
| Megapixels | 2MP |
| Lens | 2.8mm ICR |
| Viewing Angle | 121° |
| # of IR LEDs | 18 (SMT) |
| IR Range | Up to 65ft (20m) |
| FPS | PAL:25FPS NTSC:30FPS |
| F Stop | F1.6 |
| Minimum illumination – IR On | 0 Lux |
| Minimum illumination – IR Off | 0.05 Lux |
| S/N Ratio | 35dB |
| Shutter control | Auto |
| Gain control | Auto |
| Operating voltage | 12VDC |
| Current Draw – IR On | 320mA |
| Current Draw – IR Off | 80mA |
| IP Rating | Weatherproof IP66 |
| Operating temperature | -22°~131° F (-30°~55° C) |
| Dimensions | ø3-15/16″x3-9/16″ (ø100×90 mm) |
| Weight | 16.72-oz (474g) |
