SECO-LARM - EV-Y2501-A2WWQ - 5MP 4-in-1 HD Fixed Turret Camera, 2.8mm lens, 2592x1944 resolution, 1/2.8" 5MP CMOS, WDR/3D-NR, TVI/CVI/AHD/Analog format, up to 65' illumination, 18 SMT IR LEDs, Joystick OSD Control, 121º viewing angle, 12VDC, vandal-r
Part number:
EV-Y2501-A2WWQ
Price:

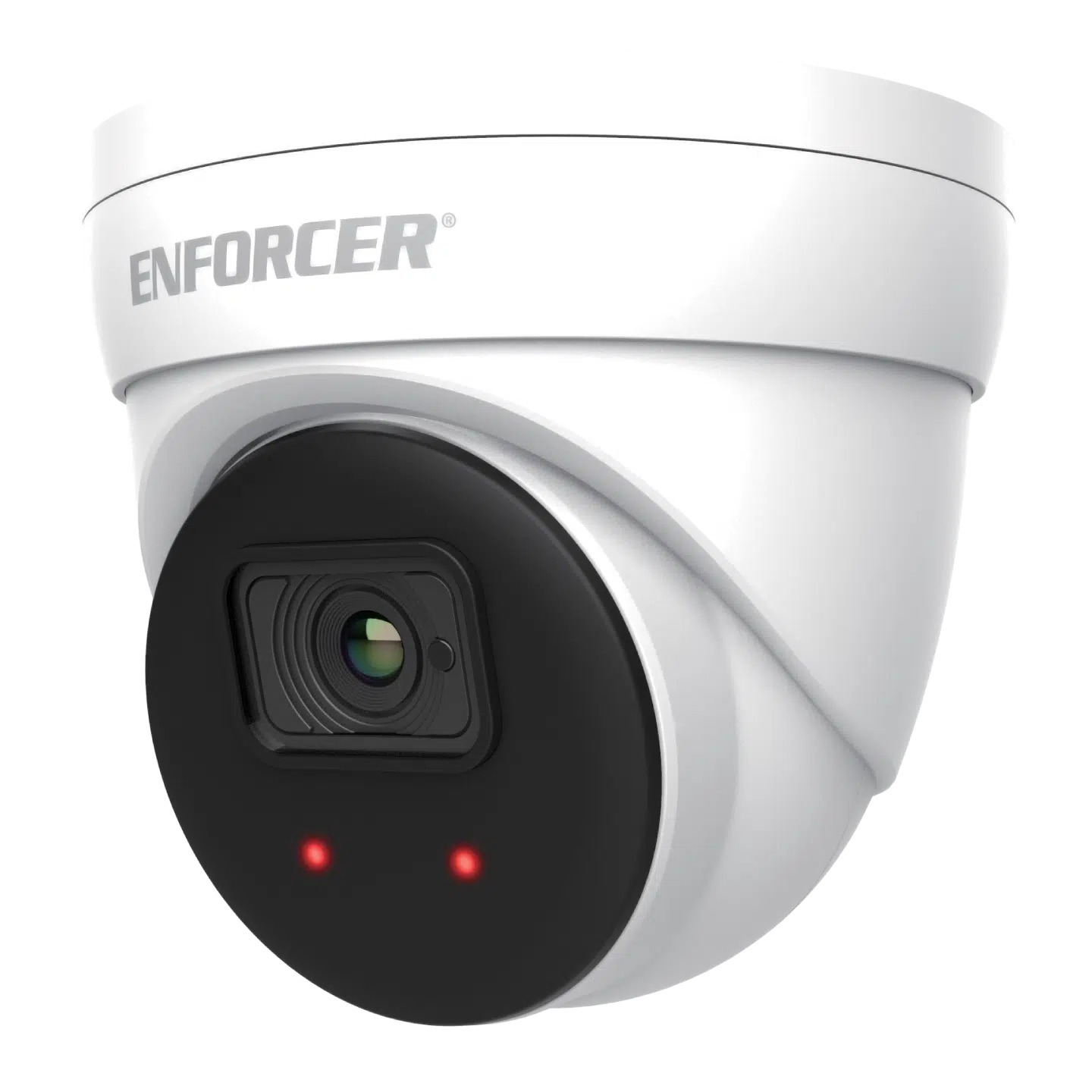

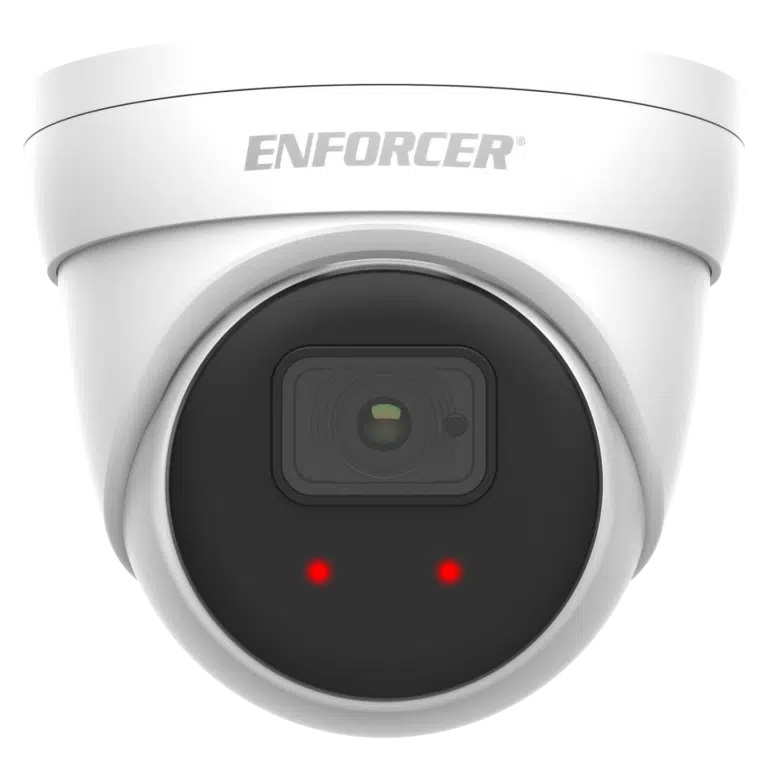

The ENFORCER HD 5MP Fixed Turret Camera offers high-resolution video and advanced technology in a compact and accessible package. With True Wide Dynamic Range (WDR), Digital Noise Reduction (3DNR) and Day/Night (ICR) capabilities, the camera provides excellent picture quality.
Features:
- 1/2.8″ 5MP Sony CMOS Sensor
- 20FPS@5MP, (2592×1944)
- 2.8mm Fixed lens
- TVI, CVI, AHD, CVBS (Analog)
- True Wide Dynamic Range (WDR)
- 3D Digital Noise Reduction (3DNR)
- True Day & Night Function with ICR Module
- IR Range 98′ (30m)
- Operating temperature: -40°~131° F (-40°~55° C)
- Rugged weatherproof construction (IP66)
- Heavy-duty vandal-resistant design
- Cables concealed in bracket to prevent tampering
- 12VDC
Camera
| Image sensor | 1/2.8″ 5MP Sony CMOS sensor |
| Effective pixels | 2592(H)x1944(V) |
| Formats | TVI (Default) / CVI / AHD / Analog (CVBS) |
| OSD (On-screen display) | Yes |
| S/N ratio | 35db |
| Minimum illumination | Color: 0.05Lux at F1.2 (AGC on) 0Lux with IR on |
| IR Distance | Distance up to 98′ (30m) |
| IR LEDs | 2x 850nm LEDs |
Lens
| Lens type | Fixed |
| Focal length | 2.8mm |
| Maximum aperture | F1.6 |
| Field of view | 128° |
Video
| Resolution | 2592×1944 |
| WDR | Yes |
| Shutter control | Auto |
| White balance | Auto |
| Gain control | Auto |
| Noise reduction | 3DNR |
| Privacy masking | Off, on (4 areas, rectangle) |
Certifications
| Certfications | CE, FCC, RoHS |
Electrical
| Operating voltage | 12VDC |
| Current Draw | IR On: 440mA, IR Off: 80mA |
Environmental
| Operating conditions | -40°~131° F (-40°~55° C) |
| IP Rating | IP66 Weatherproof |
Construction
| Casting | Metal |
| Dimensions | ø3-15/16″x3-9/16″ (ø100×90 mm) |
| Weight | 16.72-oz (474g) |
