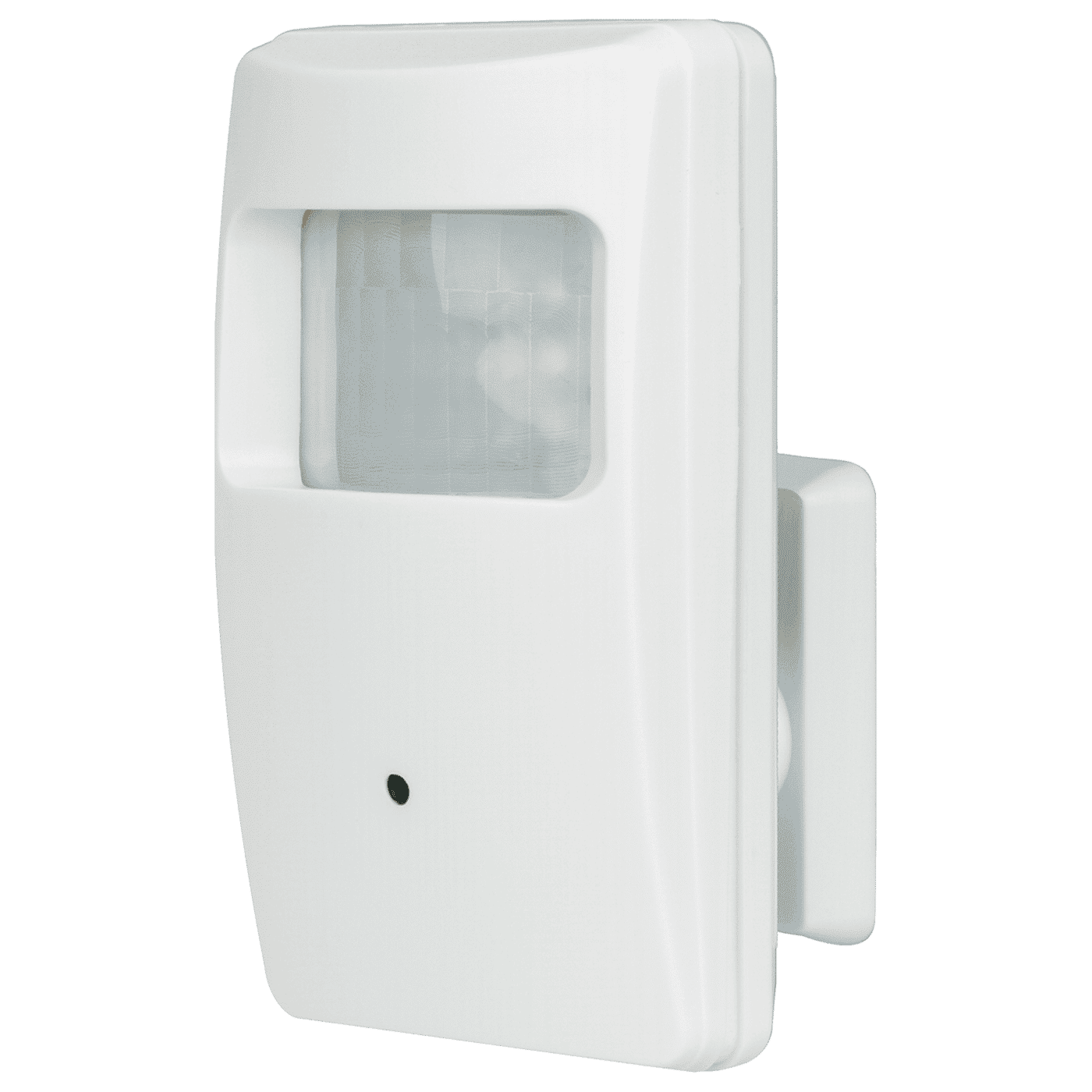

SECO-LARM - EV-Y6501-A3WQ - 5MP 4-in-1 HD Covert PIR Camera, 3.7mm pinhole lens, 2D digital noise reduction, digital wide dynamic range, 1/2.8" 5MP Sony CMOS, 1440p resolution, low-profile design, 18 covert IR LEDs for discreet monitoring, white
Part number:
EV-Y6501-A3WQ
Price:
5MP 4-in-1 HD Covert PIR Camera, 3.7mm pinhole lens, 2D digital noise reduction, digital wide dynamic range, 1/2.8" 5MP Sony CMOS, 1440p resolution, low-profile design, 18 covert IR LEDs for discreet monitoring, white.
Features:
- 5MP Resolution
- 1/2.8” 5MP Sony CMOS
- Joystick OSD Control
- ICR Module
- 2DNR (2D Digital Noise Reduction)
- D-WDR (Digital Wide Dynamic Range)
- 3.7mm Covert pinhole lens
- 18 Covert IR LEDs for discreet monitoring
- Camera is hidden in a non-functioning PIR sensor housing
| Formats | TVI (Default) / CVI / AHD / Analog |
| CMOS | 1/2.8″ 5MP Sony CMOS |
| Resolution (HD) | 2592×1944, 1440p |
| 2DNR | Yes |
| D-WDR | Yes |
| OSD (On-Screen Display) | Yes |
| Cable OSD control | Yes |
| Megapixels | 5MP |
| Lens | 3.7mm Pinhole Lens |
| Viewing Angle | 120° |
| # of IR LEDs | 18 Covert (940nm) |
| IR Range | Up to 50ft (15m) |
| FPS | 20FPS |
| F Stop | 2.2 |
| Minimum illumination – IR On | 0.1 Lux |
| Minimum illumination – IR Off | 0.01 Lux |
| S/N Ratio | >50dB |
| Shutter control | AES (Auto Electric Shutter), 1/60~1/50,000 s |
| Gain control | Yes |
| Operating voltage | 80mA@12VDC |
| IP Rating | IP65 |
| Operating temperature | -4°~140° F (-20°~60° C) |
| Dimensions | 4-1/16″x2-3/8″ x1-5/16″ (104x60x34 mm) |
| Weight | 12.3-oz (350g) |
