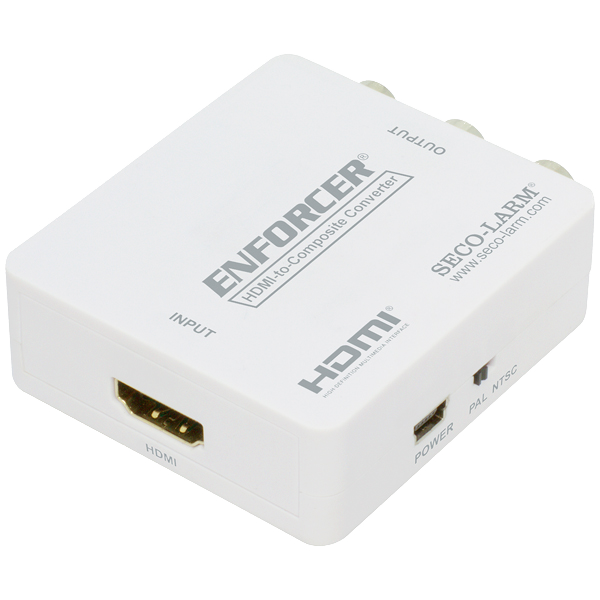

SECO-LARM - MVA-HT01Q - HDMI to Composite Converter
SECO-LARM - MVA-HT01Q - HDMI to Composite Converter
Part number:
MVA-HT01Q
Price:
Dealers only
Add to Quote/Project Registration
Description Specifications Downloads

HDMI to Composite Converter, converts HDMI to composite video + stereo audio, supports input resolutions up to 1920x1080, supports NTSC or PAL output, Stereo analog audio output, plug and play operation.



Features:

  • Converts HDMI® to composite video + stereo audio
  • Supports input resolutions up to 1920×1080
  • Supports NTSC or PAL output
  • Stereo analog audio output
  • Plug and play operation
Input Video Signal3.3V
Video Formats SupportedHigh-speed HDMI®, HDCP 1.2
Audio Formats SupportedLPCM
Input DDC Signal5V
Output VideoNTSC/PAL
Vertical Frequency50/60Hz
Resolutions Supported1080p/1080i/720p/576p/576i/480p/480i
Video Amplifier Bandwidth1.65Gpbs
Video Input ConnectorHDMI® Type A 19-pin female
Video Output ConnectorRCA female
Output Audio ConnectorRCA female
Power Supply5VDC (USB)
Operating Temperature32°~104° F (0°~40° C)
Operating Humidity20~90% RH (no condensation)
Dimensions2-3/8” x 2-1/8” x 13/16” (61 x 54 x 20 mm)
Weight1.4-oz (40g)
ESD Protection±8 kV (air-gap discharge), ±4 kV (contact discharge)
Name
Description
Size
Downloads
File
Datasheet
0.3mb
File
Manual
1.2mb
