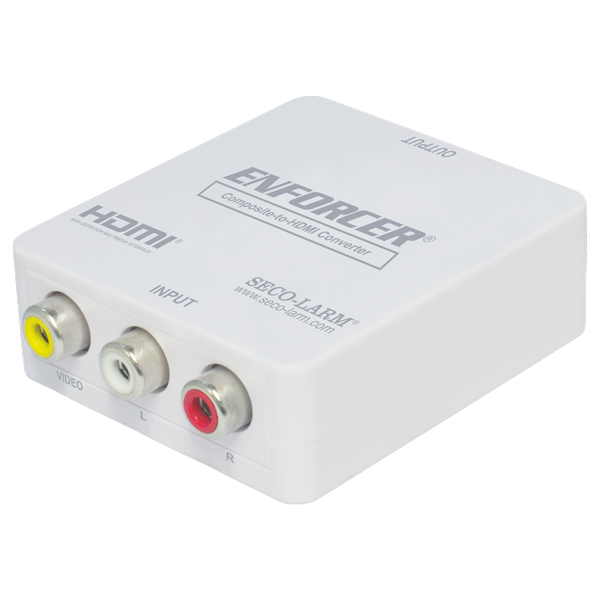

SECO-LARM - MVA-TH01Q - Composite-to-HDMI Converter with Scaler
Part number:
MVA-TH01Q
Price:

Composite to HDMI Converter with Scaler, converts composite video + stereo audio to HDMI, supports 720p or 1080p selectable output, stereo analog audio input, plug and play operation



The MVA-TH01Q Composite-to-HDMI Converter with Scaler allows the user to convert video from analog devices with composite (RCA) outputs on HDMI displays. Active operation allows the conversion of formats as large as 1920×1080. The MVA-TH01Q also has a L/R analog stereo input allowing the conversion of audio as well.



Features:

  • Converts composite video and stereo audio to 720p or 1080p HDMI.
  • Supports NTSC, PAL, and SECAM video inputs.
  • Supports up to 1080p on HDMI output.
  • Stereo audio input.
  • Selectable between 720p and 1080p upscaling.
  • Plug and play operation.
Supported Resolutions720p/1080p
Video Input Signal1Vp-p
DDC Input Signal5V
Vertical Frequency60Hz
Video Amplifier Bandwidth1.65Gbps
Power Supply5VDC (USB)
Operating Temperature32°~104° F (0°~40° C)
Operating Humidity20~90% RH (no condensation)
Dimensions2-3/8″ x 2-1/8″ x 1-3/16″ (60 x 54 x 20 mm)
Weight1.4oz (40g)
Video Formats SupportedNTSC / PAL / SECAM
Audio Formats SupportedStereo
Video Input ConnectorRCA Female
Video Output ConnectorHDMI Type-A 19-pin female
