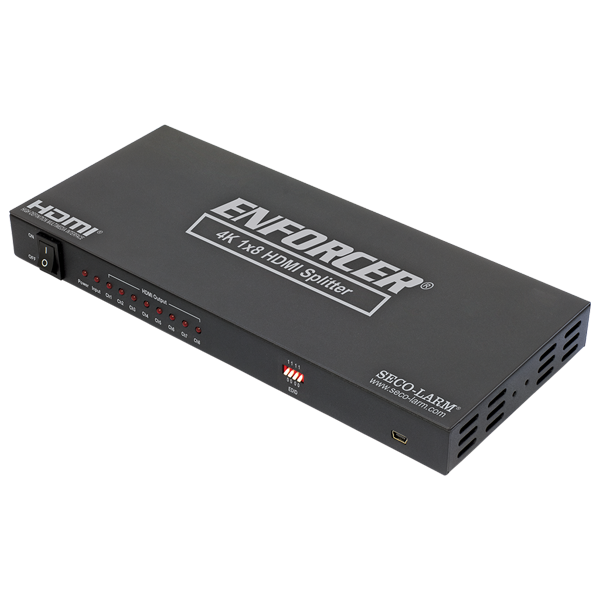

SECO-LARM - MVD-AH18-01Q - 4K HDMI Splitter - 8 HDMI Outputs
Part number:
MVD-AH18-01Q
Price:
This HDMI Splitter allows for one HDMI source to simultaneously transmit to up to eight different monitors. Supports up to 1080p and 3D video.
IMPORTANT: This product is designed to extend an HDMI® signal. This product is not to be used to bypass any copy protection or other content protection system. All usage of this product shall conform to the license that comes with the content.
Features:
- Transmit an HDMI source to up to eight different HDMI® displays
- Supports up to 4K resolution and 3D video
- Individual status LEDs for each HDMI® output
- EDID Management settings
- One (1) 5VDC Power supply included
| Type | 4K HDMI® Splitter |
| Input Video Signal | 3.3V |
| Input DDC Signal | 5Vp-p (TTL) |
| Maximum Single Link Range | 4K*2K@30hz |
| Deep Color | 48bit |
| Video Formats Supported | High-speed HDMI®, HDCP 1.4 |
| Audio Formats Supported | LPCM, Dolby-AC3, DTS7.1, DSD |
| Output Video | HDMI® |
| Resolutions Supported | 4K/1080p/1080i/720p/576p/576i/480p/480i |
| Video Amplifier Bandwidth | 10.2Gbps |
| Video Input Connector | 1x HDMI® Type A 19-pin female |
| Max. Input Cable Length | 24AWG: 50’ (15m); 26AWG: 30’ (10m); 28AWG: 16’ (5m) |
| Video Output Connector | 8x HDMI® Type A 19-pin female |
| Max. Output Cable Length | 24AWG: 50’ (15m); 26AWG: 32’ (10m); 28AWG: 16’ (5m) |
| Operating Voltage | 5VDC |
| Power Supply | 2A@5VDC (2.1mm plug) |
| ESD Protection | ±8kV (air-gap discharge), ±4kV (contact discharge) |
| Current Draw | 1820mA@5VDC |
| Operating Temperature | 32°~104° F (0°~40° C) |
| Operating Humidity | 20~90% RH (no condensation) |
| Dimensions | 4-7/16” x 10-3/16” x 1-1/4” (112 x 258 x 32 mm) |
| Weight | 25.4-oz (720g) |
