SECO-LARM - MVE-AH1E1-42NQ - 4K HDMI Extender over Single Cat5e/6
• Extends HDMI over a single Cat5e/6 cable
• Supports resolutions from 480i to 4K with zero signal loss
• Transmits 4K@60Hz up to 197′ (60m) or 1080p@60Hz up to 230′ (70m) over Cat6 cable
• Plug and play operation
• Active operation ensures signal strength
• IR for remote control extension
• One 12VDC power supply included
| Maximum Single Link Range | 4K@60Hz |
| Deep Color | 8bit |
| Video Format Supported | High-speed HDMI, HDCP 2.2 |
| Audio Formats Supported | LPCM 2/51/7.CH, Dolby Digital, DTS 5.1, Dolby Digital+, DolbyTrueHD, DTS-HD Master Audio, Dolby Atmos, DTS:X |
| Output Video | 4K@60Hz |
| Resolutions Supported | 4K@60Hz/4K@30Hz/1080p/1080i/720p/576p/576i/480p/480i |
| Range | 1080p: Cat6: Up to 230′ (70m); Cat5e: Up to 164′ (50m) |
| Range – 4K | Cat6@60Hz: Up to 197′ (60m); Cat5e@60Hz: Up to 164′ (50m) |
| Video Amplifier Bandwidth | 18Gbps |
| Video Input Connector | HDMI Type A 19-pin female |
| Video Output Connector | HDMI Type A 19-pin female |
| IR Frequency | 30 ~ 60 kHz |
| Power Supply | 1A@12VDC (1 Adapter) (2.1mm plug) |
| ESD Protection (Human Body Model) | ±8kV (air-gap discharge), ±4kV (contact discharge) |
| Cat5e/6 Wiring Standard | T-568B |
| Operating Temperature | 32°~104° F (0°~40° C) |
| Operating Humidity | 20~90% RH (no condensation) |
| Dimensions | 3-7/16″x23 / 8″x11/16″ (88x61x17 mm) |
| Weight | 5.08-oz (144g) (each) |

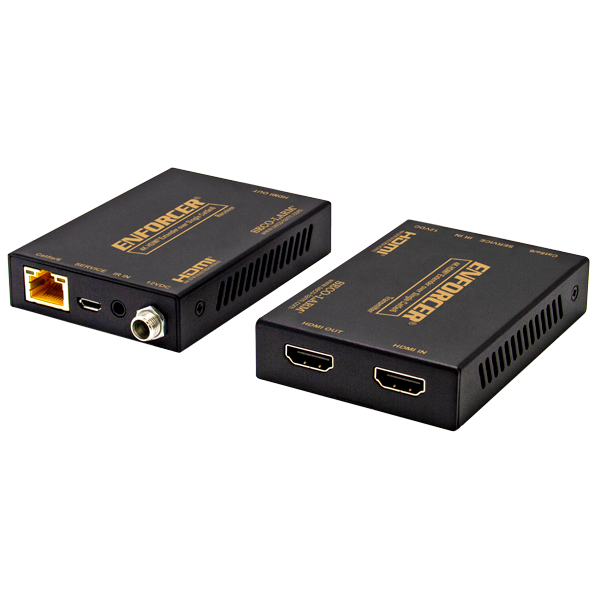

4K HDMI over a single Cat5e/6 cable. Range extended up to 197 ft (60 m) over Cat6. Connect HDMI equipment using low-cost Cat5e/6 UTP cables. Transmit HDMI signals over Cat5e/6 cables without any loss. Supports 4K@60Hz resolution. Special features include Local Loop-Out and IR. It includes one 12 VDC power supply (which can be powered at either end), one IR receiver and one IR transmitter. The ENFORCER 4K HDMI Extender over Single Cat5e/6 extends the range of traditional HDMI cabling methods by using an active transmitter and receiver to send video and audio over a single Cat5e/6 cable. HDMI formats as large as 4K can be transmitted between the two units up to 197 ft (60 m) with zero signal loss using the integrated circuits in the receiver and transmitter.
