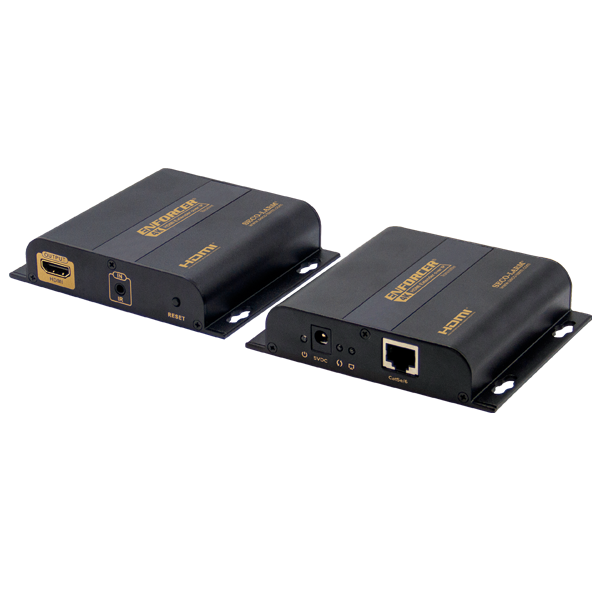

SECO-LARM - MVE-AHMPM-41NQ - 4K HDMI Extender over IP, Tx and Rx Kit
Part number:
MVE-AHMPM-41NQ
Price:
- • Extends HDMI over one Cat5e/6 cable or IP network
- • Supports One-to-One, and One-to-Many applications
- • Power adapters and IR hardware included
- • IR Support (20kHz~60kHz)
- • HDCP Compliant
- • Receiver (MVE-AHMPM-41NRQ) also available separately
| Maximum video resolution | 4K@30Hz |
| Deep color | 24-bit |
| Video formats supported | DTV/HDTV: 480i, 480p,576i,576p,720p,1080i, 1080p, 4K@30Hz |
| Range 4K – Cat5 | 262ft (80m) |
| Range 4K – Cat5e | 328ft (100m) |
| Range 4K – Cat6 | 393ft (120m) |
| IP addressing | Static |
| IR frequency | 20kHz~60kHz |
| Operating voltage | 5VDC |
| Power supply | 2A@5VDC |
| Power consumption | Transmitter: 6W Receiver: 4W |
| Operating temperature | 32°~140° F (0°~60° C) |
| Dimensions | 4-7/16″x15/16″x3-11/16″ (112x23x94 mm) |
| Weight | 5.9-oz (170g) |
Name
Description
Size
Downloads
File
Product Information Sheet
0.8mb
File
Manual
0.5mb
The MVE-AHMPM-41NQ 4K HDMI Extender over IP uses an active transmitter and receiver to extend the range of HDMI signals by sending video and audio over a single Cat5e/6 cable. It supports IR signals using the included transmitter and receiver, enabling remote control of devices such as media or DVD players from one end of an installation. The MVE-AHMPM-41NQ supports one-to-one and one-to-many installations, enabling multiple units to be connected for an extended range.
