SECO-LARM - MVE-PN11-01Q - IR over HDMI Kit
Part number:
MVE-PN11-01Q
Price:

IR over HDMI Kit. Adds IR pass-through to HDMI devices. Convenient for applications where the HDMI source is not near the monitor.



The ENFORCER IR over HDMI Kit is the ideal solution for installations where a DVR, Blu-Ray player, or other HDMI source is in a different room or location than the HDMI display. The adapter’s discreet and convenient design installs between the device and the HDMI cable. The IR transmitter and receiver are each built with a 4.5ft (1.45m) cable for an easy and clean installation.



Features:

  • Add IR remote pass-through to installations where an HDMI source is in a different room than the HDMI display, using existing HDMI cables
  • Discreet, convenient design – adapters install between the devices and the HDMI cables
  • IR Transmitter and receiver are each built with a 4.5ft (1.45m) cord for added convenience while installing
  • Compatible with other ENFORCER products (sold separately):  1×4 HDMI Splitter (MVD-AH14-01Q)

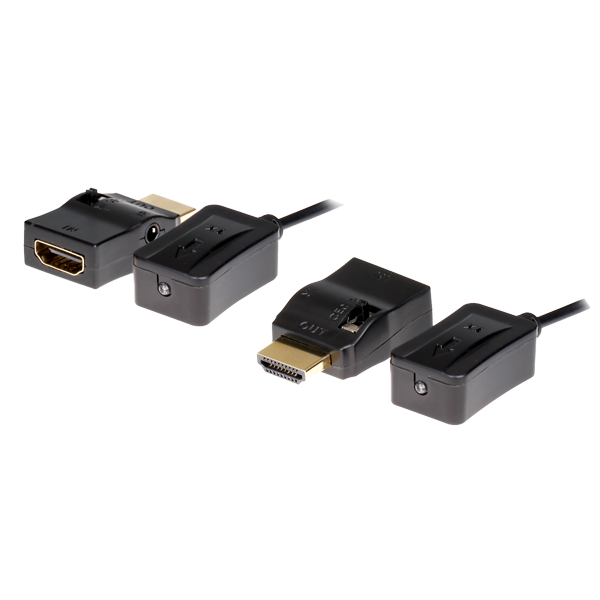

  • Includes 2 HDMI adapters, 1 IR transmitter, and 1 IR receiver



IMPORTANT: This product is designed to extend an HDMI signal. This product is not to be used to bypass any copy protection or other content protection system. All usage of this product shall conform to the license that comes with  the content.

Video Formats SupportedHigh-speed HDMI® with 3D, HDCP 1.2
Frequency33~60 kHz (Dual band)
Dimensions – IR Transmitter1-1/8″ x 11/16″ x 1/2″ (30 x 18 x 12 mm)
Dimensions – IR Receiver1-1/8″ x 11/16″ x 1/2″ (30 x 18 x 12 mm)
Dimensions – HDMI Adapter1-1/8″ x 7/8″ x 3/8″ (30 x 22 x 10 mm)
Dimensions – Cable4.5′ (1.45m)
Dimensions – Jack3.5mm
Weight2.2-oz (62g)
Name
Description
Size
Downloads
File
Datasheet
0.3mb
File
Manual
0.4mb
