SECO-LARM - NE-SE01-020Q - Basic Passive 1 channel Ethernet Extender. 10 Mbps/Full duplex. Transmission distance of up to 650ft (200M) Built in surge protection. Sold as set
Part number:
NE-SE01-020Q
Price:

Basic Passive 1 channel Ethernet Extender. 10 Mbps/Full duplex. Transmission distance of up to 650ft (200M) Built in surge protection. Sold as set

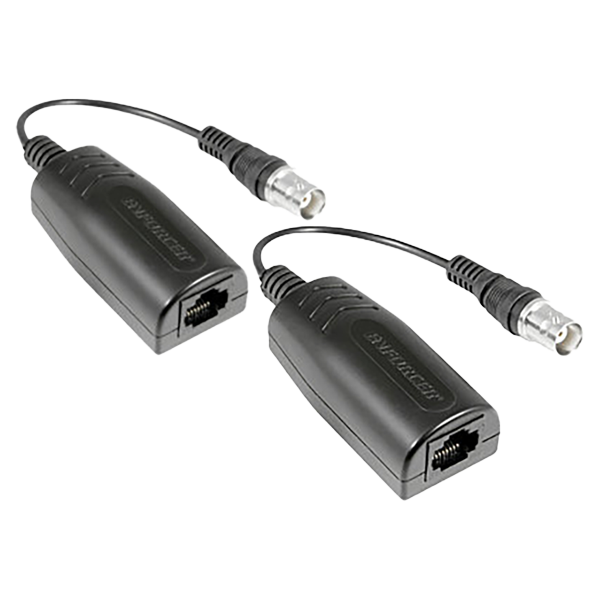

The ENFORCER Passive Ethernet Extender over Coax is designed to extend the range of any TCP/IP device beyond the 300ft (100m) limit of Ethernet. The unit does not filter out any protocols, codes, or applications, compatibility with any IP camera and its software.



Features:

  • 1 Channel Ethernet over coax
  • 10/100 Mbps Full duplex*
  • Transmission distance:**
    • Up to 650ft (200m)@10Mbps
    • Up to 325ft (100m)@100Mbps
  • Passive, no power required
  • Built-in surge protection
  • Fast and easy to install
  • Bidirectional – can operate as transmitter and receiver
  • Sold as a set
Range10Mbps Up to 650′ (200m), 100Mbps Up to 325′ (100m)
Input ConnectorRJ45
Output ConnectorBNC
StandardIEEE802.3 10Base-T/100Base-T
Link CableRG59/U or better
Ethernet Speed10/100 Mbps
Operating Temperature-4º~131º F (-20º~55º C)
Dimensions2-3/8” x 1-1/8” x 13/16” (60 x 29 x 20 mm)
