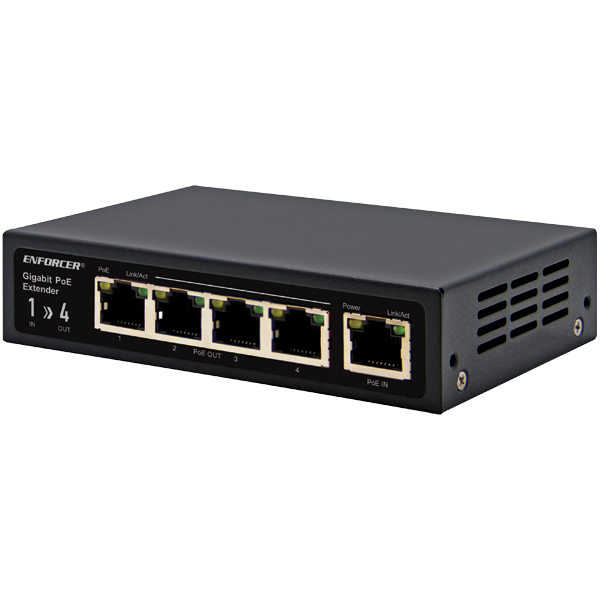

SECO-LARM - NR-P401E-TQ - Gigabit PoE Extender Using a Single Cat5e or Cat6 Cable, Extends Range by an Additional 328ft (100m), Supports 4 PoE Devices
Part number:
NR-P401E-TQ
Price:
Gigabit PoE Extender using a single Cat5e or Cat6 cable, extends range by an additional 328ft (100m), supports 4 PoE devices.
The ENFORCER Gigabit PoE Extenders connects PoE cameras, IP access control, IP speakers/intercoms, IP telephony, or other PoE devices using a single Cat5e or
Cat6 cable to extend data and power by an additional 328ft (100m), for a total range of up to 984ft (300m) with two extenders. The NR-P401E-TQ supports up to 4 PoE devices.
Features:
- Extends the range of PoE Ethernet devicesover Cat5e or higher cables an additional 328ft (100m)
- Connects 10,100,1000BaseT PoE devices including IP cameras, IP access control, VOIP, IP speakers/intercoms, etc.
- Supports up to gigabit transmission rates
- Passive operation – no external power required
- Easy plug-and-play installation
- Compliant with IEEE802.3af, IEEE802.3at
- Automatically detects PoE equipment and protects from damage due to faulty installation
- 4 Output ports for up to 4 PoE devices
- Also compliant with IEEE802.3bt 4 pairs
| Connections: PoE In | 1x Shielded RJ-45 |
| Connections: PoE Out | 4x Shielded RJ-45 |
| PoE Power: Input | Up to 60W |
| PoE Power: Output | Up to 55W (total for 4 ports) |
| Transmission range: 1 Extender | 656ft (200m) |
| Transmission range: 2 Extenders | 984ft (300m) |
| Data link | Both pin 1/2, 3/6 and 4/5, 7/8 |
| Power link | Pin 1/2(+), 3/6(–) up to 12W for 4 PSE, 25W for 2 PSE |
| Network cables | Shielded Cat-5e or higher |
| Ethernet speed | 10/100/1000 Mbps half/full duplex |
| PoE standard | IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt 4 pairs (60W) |
| LED Indicators: Power link | Yellow |
| LED Indicators: Data link | Green, steady |
| LED Indicators: Data transmit | Green flashing |
| IP rating | None |
| Operating humidity | 90% (maximum, non-condensing) |
| Operating temperature | 14°~113° F (-10°~45° C) |
| Dimensions | 4-11/16″x1-1/8″x3-3/8″ (119x28x85 mm) |
| Weight | 8.8-oz (250g) |
