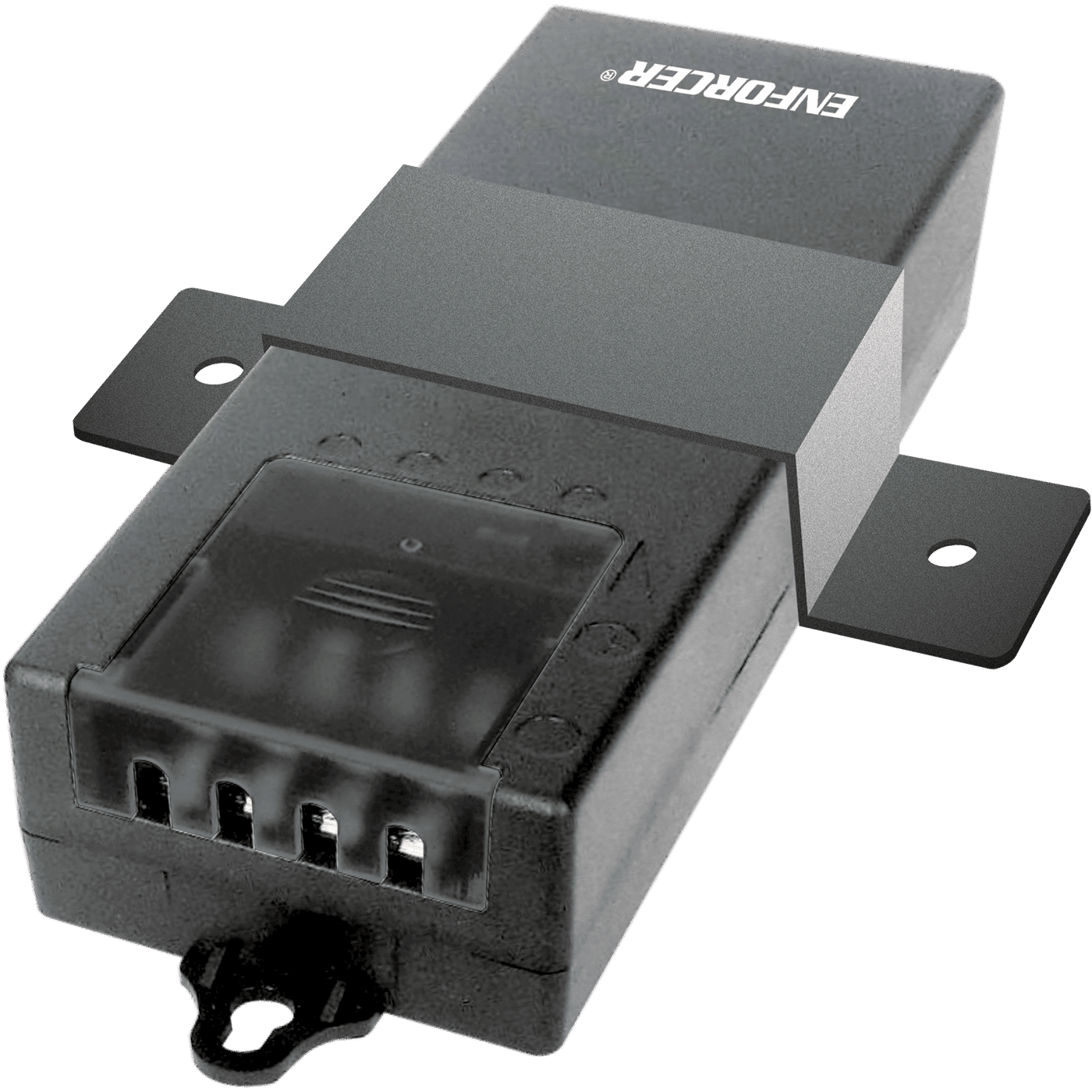

SECO-LARM - PA-U0405-NULQ - 4-Channel CCTV ‘Brick’ Power Supply, 4 Outputs, 5 Amp
Part number:
PA-U0405-NULQ
Price:
- • 4-Channel, 5-Amp power distribution
- • Can be mounted with the bracket for easy access and reduced power cord clutter
- • Universal input voltage: 100~240 VAC
- • Adjustable output voltage: 12~13.8 VDC
- • Built-in 6.8-Amp overcurrent protection
- • High voltage and overcurrent protection
- • LED Power indicator
| Input Voltage | 100~240VAC |
| Max. Output power | 60W |
| Output Voltage | 12~13.8 VDC, adjustable |
| Number of Outputs | 4 |
| Total Supply Current | 5 Amp |
| Input fuse | 3.15A@250VAC |
| Overcurrent Protection | 12VDC / 6.8A |
| Dimensions | 5-7/8″ x 2-3/16″ x 1-5/16″ (150 x 55 x 33 mm) |
| Weight | 13.4-oz (380g) |
| Operating Temperature | 14º~113º F (-10º~45º C) |
Name
Description
Size
Downloads
File
Product Information Sheet
0.3mb
File
Manual
0.6mb
The PA-U0405-NULQ is a 4-channel, 5-amp power supply. Although it is typically used in CCTV installations, it is also suitable for a variety of CCTV and access control applications. It features adjustable output voltage and built-in 6.8-amp overcurrent protection.
