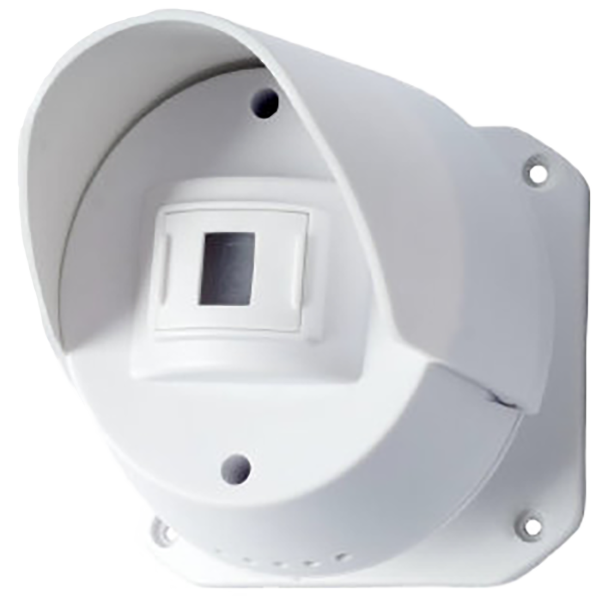

SECO-LARM - RA-4961-DSQ - Wireless Outdoor PIR Sensor for use with the RA-4961 series receivers
Part number:
RA-4961-DSQ
Price:
Wireless Outdoor PIR Sensor for use with the RA-4961 series receivers
Features:
- For use with the RA-4961 series RF receivers
- Wirelessly monitor driveways, walkways or other areas
- Up to 1,000ft (305m) transmission range*
- Programmable activation time
- Programmable sensing range up to 39ft (12m)
- Runs on batteries for a convenient, wireless installation
- Adjustable mounting angle
- Weatherproof (IP45)
| Frequency | 914.8MHz |
| Channels | 1 |
| Transmission Range | Up to 1,000ft (305m) |
| Power Supply | 4x AA Batteries (Not Included) |
| Current Draw | Standby – 70μA, Max- 18mA |
| Estimated Battery Life | 300 days (@ 3 triggers/day) |
| Low Battery Indicator | Zone LED on receiver blinks continuously |
| Enclosure | Weatherproof IP45 |
| PIR Sensor Detection Angle | 12° (with lens cover) / 15° (without cover) |
| PIR Sensor Range | 13’ (4m) / 23’ (7m) / 26’ (8m) / 39’ (12m) |
| Operating Temperature | -4°~140°F (-20°~60°C) |
| Dimensions | 3-7/8” x 3-13/16” x 4-3/4” (98 x 97 x 120 mm) |
