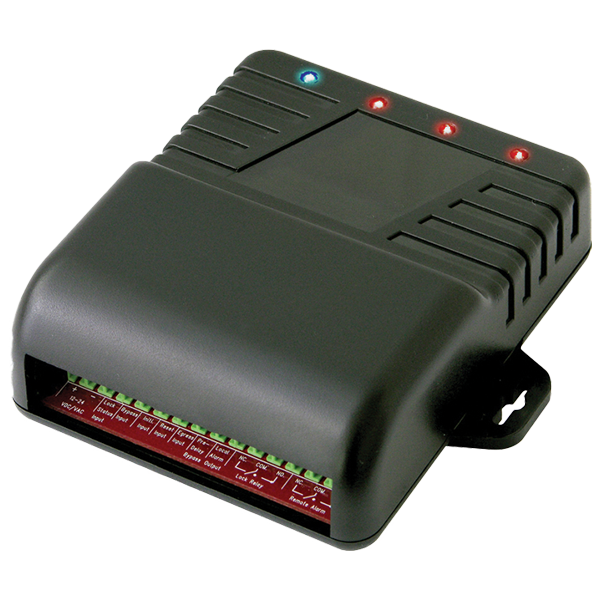

Delayed Egress Timer. Lock control relay (SPDT): 10A@24VDC. Remote alarm relay (SPDT): 10A@24VDC. Local alarm, transistor ground output. Three relocking modes via jumper. 12~24 VDC Operation.

Features:

• 12~24 VDC Operation
• 3 Relock modes to meet different installation requirements:
  • Standard manual relocking,
  • BOCA (Building Officials Code Administrators) relocking,
  • Timed relocking (1~60 seconds).
• Programmable nuisance delay timer (0~3 seconds)
• Adjustable pre-delay timer (1~30 seconds)
• Adjustable post-delay timer (1~60 seconds)
• Selectable manual or automatic relocking after power loss
• Lock relay output (Form C, 10A@24VDC)
• Remote alarm relay output (Form C, 10A@24VDC)
• Local alarm output (transistor ground, 500mA@12VDC)
• Door status input
• Status LEDs show relay status
• Bypass input immediately releases locks
• Free egress input allows easy exit during the delay
