Seco-Larm - SD-7202GF-PEQ - Square Illuminated Pushbutton DPDT Request-to-Exit Plate

Product Overview

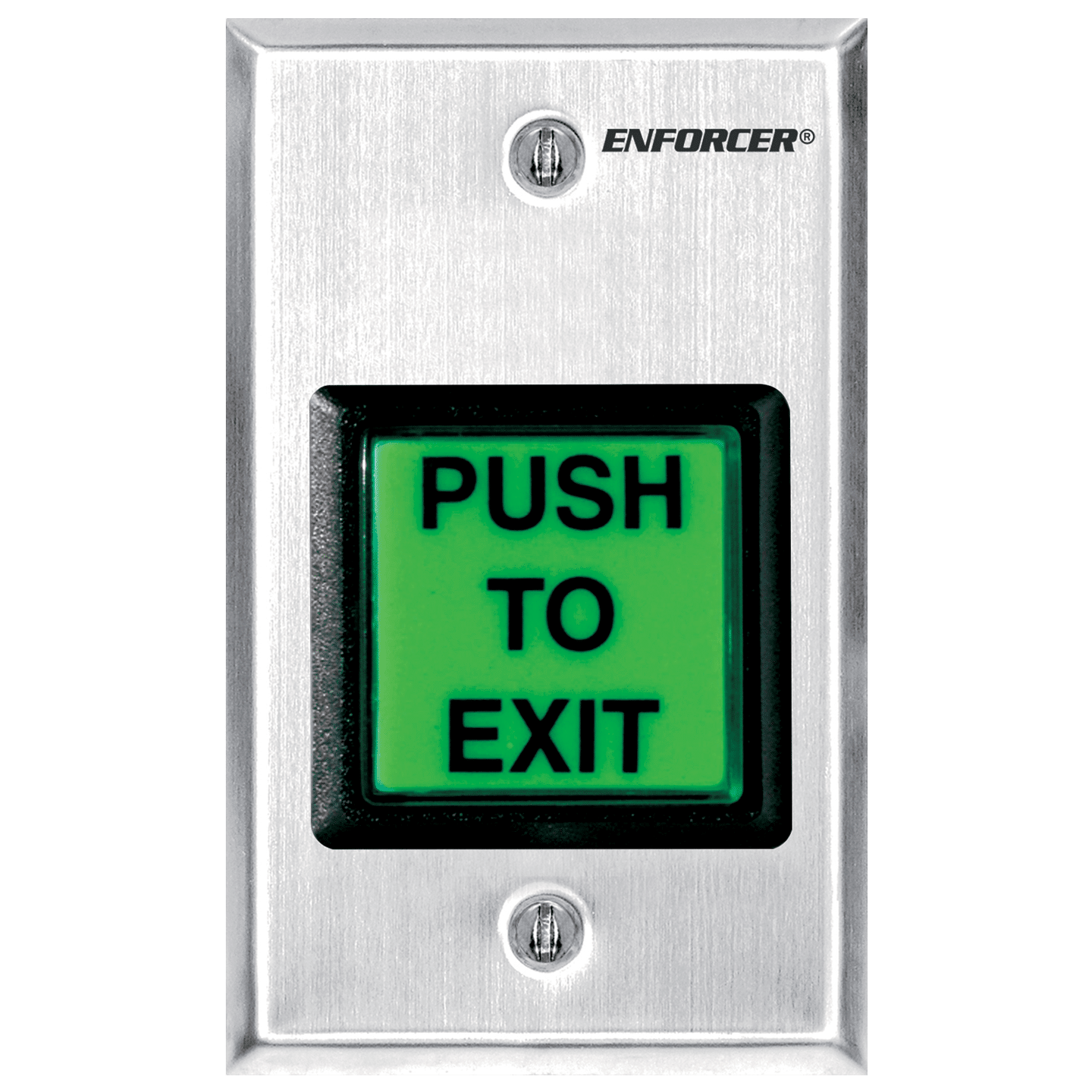

The ENFORCER Square Illuminated Pushbutton DPDT Request-to-Exit Plate is designed for access control installations that require a visible, easy-to-use exit button. It combines a large LED illuminated pushbutton, DPDT output, multilingual message plates, and a weatherproof stainless steel single-gang faceplate.

Key Configuration

Square illuminated request-to-exit pushbutton; DPDT output rated 5A at 30VDC / 125VAC; 12~24 VDC operating voltage with no resistors required.

Key Features

• Large illuminated pushbutton includes the caption “PUSH TO EXIT”
• Message language can be switched between English, Spanish, and French
• Includes interchangeable plates: Push-to-Exit, Presione para salir, and Pousser Pour Sortir
• Eight colored 12-inch wire leads with spade lugs support fast installation
• LED provides over 50,000 hours of illumination

Technical Context

The DPDT output provides additional wiring flexibility for access control and door release systems. The unit operates on 12~24 VDC without requiring resistors, simplifying integration with compatible low-voltage control circuits.

Installation Notes

The pushbutton includes a stainless steel single-gang faceplate and is IP65 weatherproof for outdoor or exposed installations. Interchangeable message plates can be changed during installation to match English, Spanish, or French language requirements.
