SECO-LARM - SD-7213-GSP - RTE Plate with Pneumatic Timer, Green
Part number:
SD-7213-GSP
Price:
- • ETL, Conforms to UL Std. 294
- • Conforms to NFPA 101 Fire Codes for non-electrical breaking of contact
- • Functions entirely without electricity
- • Excellent for installations where supplying additional timer power is inconvenient
- • Reliable US-made pneumatic components

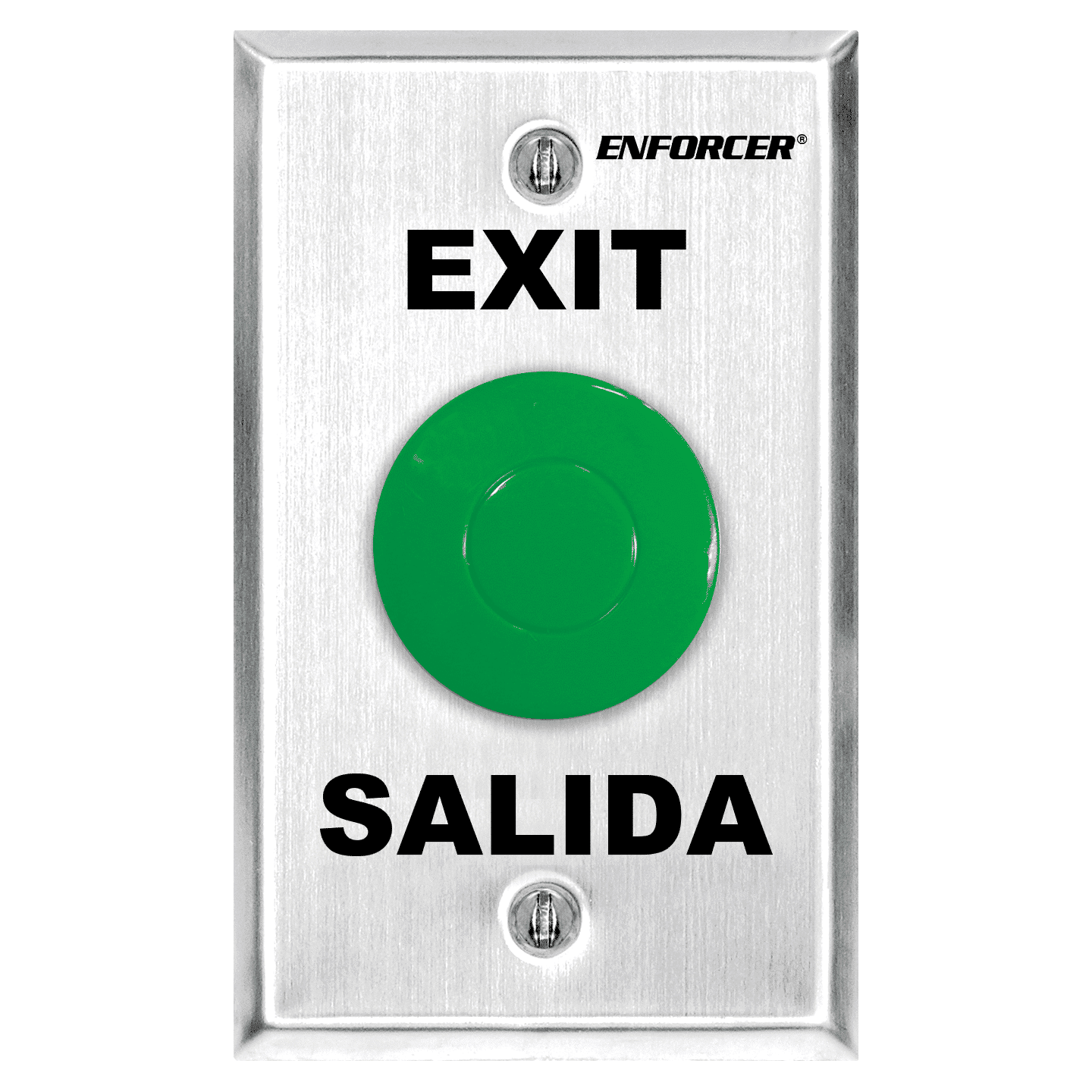

- • Stainless steel single-gang faceplate
- • English and Spanish printed on the faceplate
- • Timer adjustable for 1~60 seconds
| Faceplate | Single-gang, brushed stainless steel |
| Mushroom cap button | Size: Standard |
| Color | Green |
| Timer | Pneumatic: 1~60 seconds* |
| Switching capacity | 5A@125VAC |
| Wiring | Red: 2x N.C. #18 AWG 9″ (230mm) for fail-safe White: 2x N.O. #18 AWG 9″ (230mm) for fail-secure |
| Destructive attack level | Level I |
| Line security | Level I |
| Endurance level | Level I |
| Standby power | Level I |
| Operating temperature | 32°~131° F (0°~55° C) |
| Dimensions | 2-3/4″x4-1/2″x3-1/2″ (70 x 115 x 88 mm) |
Name
Description
Size
Downloads
File
Manual
0.3mb
File
Product Information Sheet
0.2mb

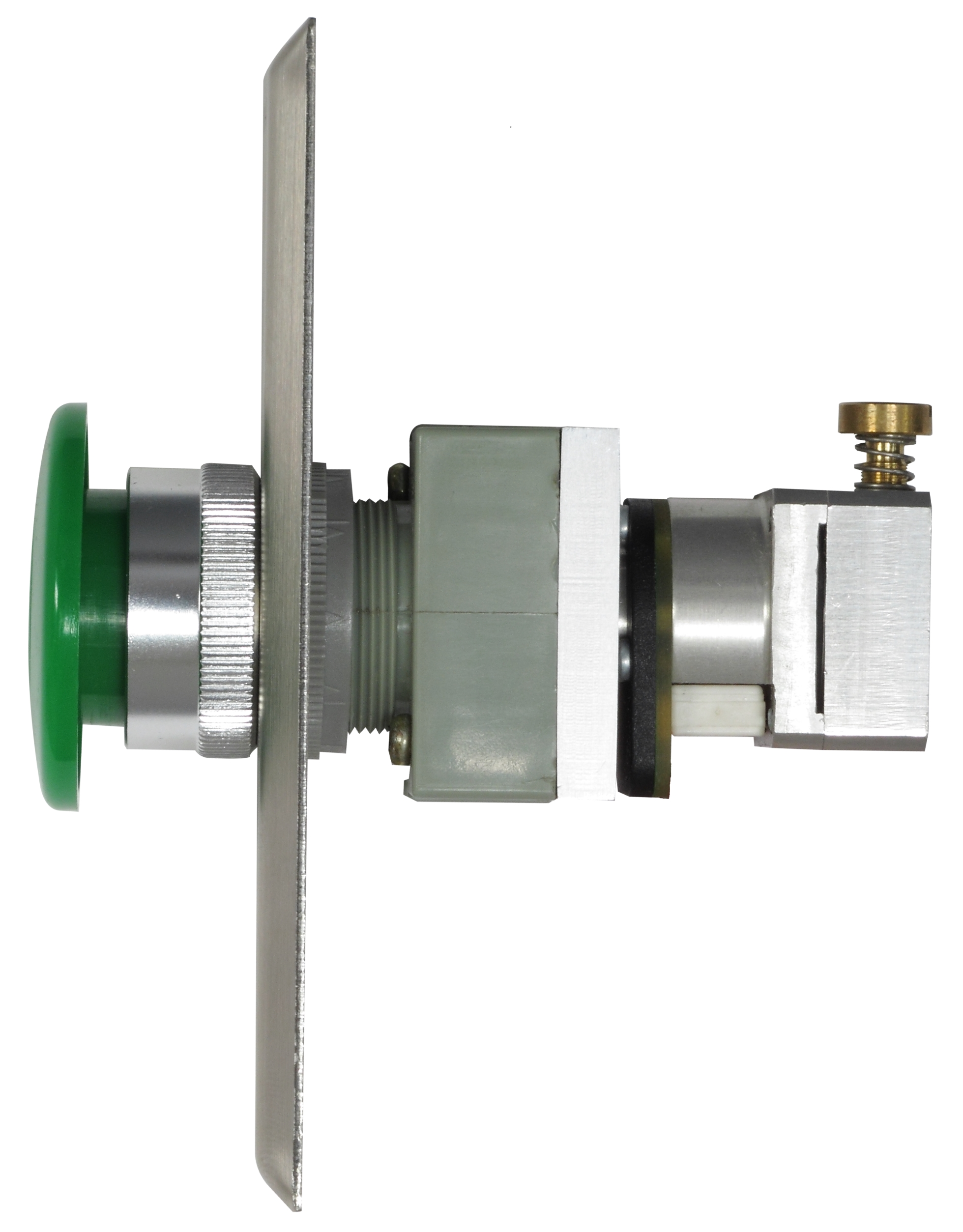

ENFORCER Request-to-Exit Plates with Pneumatic Timers are ideal for situations where providing power to a timer would be inconvenient, hazardous or in violation of local ordinances and codes. The time can be easily adjusted on the spot via a timing screw without the need for tools.
