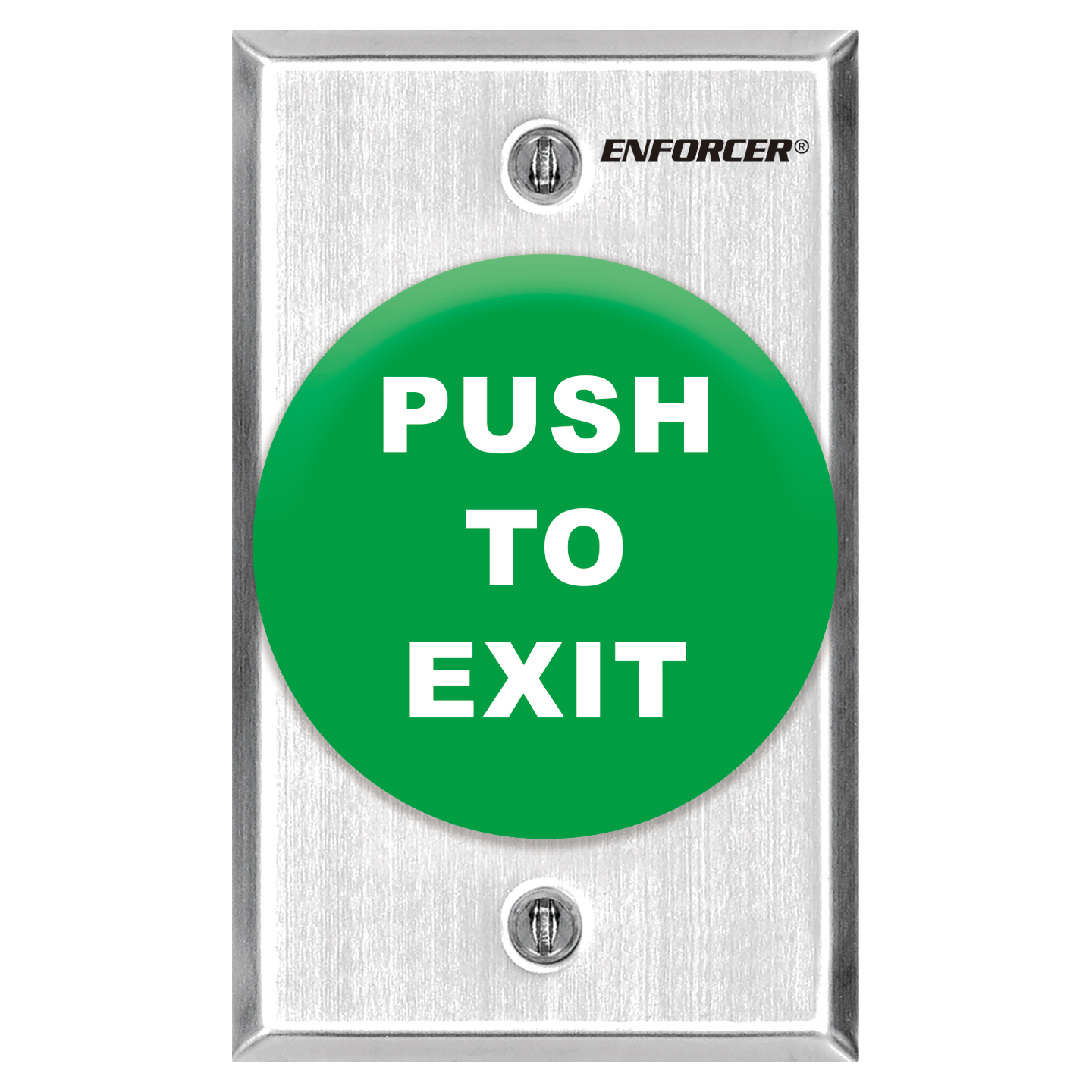

Seco-Larm - SD-7283-GSP - Request-to-Exit Plate with Pneumatic Timer – Large Green Mushroom

Product Overview

The ENFORCER Request-to-Exit Plate with Pneumatic Timer is designed for access control installations where providing power to a timer is inconvenient, hazardous, or not compliant with local codes. It operates entirely without electricity and uses reliable pneumatic components to provide timed non-electrical contact operation.

Key Configuration

Request-to-exit plate with pneumatic timer; stainless steel single-gang faceplate with English and Spanish text; timer adjustable from 1 to 60 seconds.

Key Features

• Functions entirely without electricity
• Conforms to NFPA 101 Fire Codes for non-electrical breaking of contact
• Suitable for installations where supplying additional timer power is inconvenient
• Uses reliable US-made pneumatic components
• Time adjustment is performed with a timing screw and requires no tools

Technical Context

The pneumatic timer provides a mechanical timing function without requiring electrical power, making it useful in code-sensitive or hazardous environments. Its non-electrical breaking of contact supports installations where powered timer circuits may not be appropriate.

Installation Notes

The stainless steel single-gang faceplate includes English and Spanish printed text for clear use identification. Timer adjustment can be performed on the spot with the built-in timing screw, allowing the delay to be set between 1 and 60 seconds.
