Product Overview

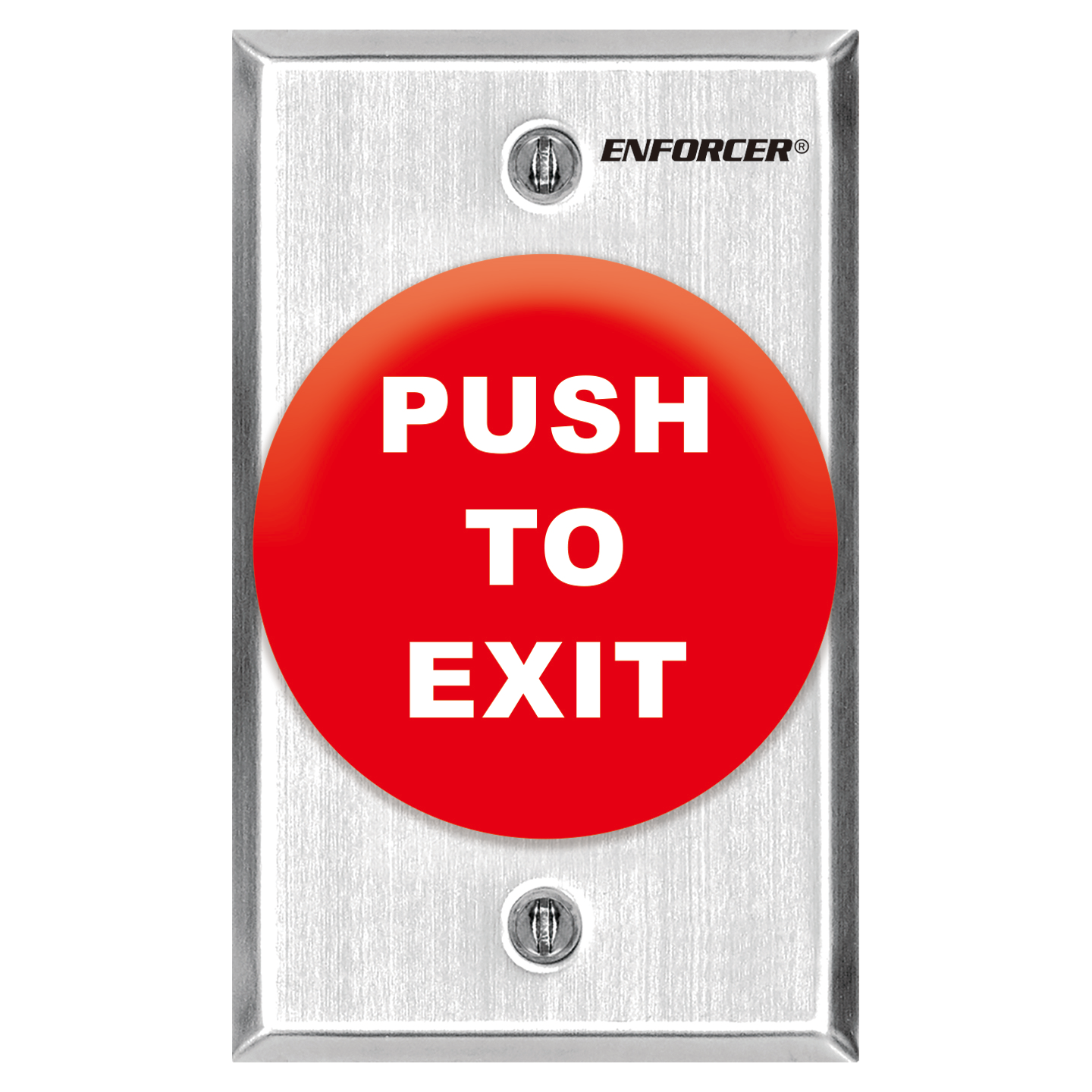

The ENFORCER Request-to-Exit Plate with Pneumatic Timer is designed for access control installations where using electrical timer power is inconvenient, hazardous, or restricted by local codes. It provides non-electrical timed contact operation using reliable pneumatic components and a stainless steel single-gang faceplate.
Key Configuration
Request-to-exit plate with pneumatic timer; stainless steel single-gang faceplate; timer adjustable from 1 to 60 seconds.
Key Features
• Functions entirely without electricity
• Conforms to NFPA 101 Fire Codes for non-electrical breaking of contact
• Suitable for installations where supplying additional timer power is inconvenient
• Uses reliable US-made pneumatic components
• Timing can be adjusted on the spot with a timing screw and without tools
Technical Context
The pneumatic timer provides a mechanical timing function without requiring electrical power, making it useful in code-sensitive or hazardous environments. Its non-electrical contact operation supports compliance needs where powered timer circuits may not be appropriate.
Installation Notes
The single-gang stainless steel faceplate supports standard wall plate mounting. Timer adjustment is performed directly using the timing screw, allowing the delay to be set between 1 and 60 seconds during installation or service.
| Technical Specifications | |
| Faceplate | Single-gang, brushed stainless steel |
| Mushroom Cap Button | Size: Large Color: Green |
| Timer | Pneumatic: 1~60 seconds* |
| Switching Capacity | 5A@125VAC |
| Wiring | Red: 2x N.C. #18 AWG 9″ (230mm) for fail-safe White: 2x N.O. #18 AWG 9″ (230mm) for fail-secure |
| Destructive Attack Level | Level I |
| Line Security | Level I |
| Endurance Level | Level I |
| Standby Power | Level I |
| Operating Temperature | 32°~131° F (0°~55° C) |
| Dimensions | 2-3/4″ x 4-1/2″ x 3-1/2″ (70 x 115 x 88 mm) |
