Seco-Larm - SD-9563-KSVQ - 6″ Round IR Wave-to-Open Sensor with Manual Override

Product Overview

This weatherproof touchless sensor plate is designed for access control and door activation applications where contact-free operation is preferred. It features an adjustable sensor range up to 7 in. / 18 cm, selectable LED color feedback, and an IP65-rated stainless steel plate suitable for outdoor use.

Key Configuration

Touchless sensor with adjustable sensing range up to 7 in. / 18 cm; 1.2A relay with adjustable trigger duration from 0.5 to 30 seconds or toggle mode; 6 in. round stainless steel plate for mounting to a single-gang back box.

Key Features

• LED illuminated sensor supports easy identification

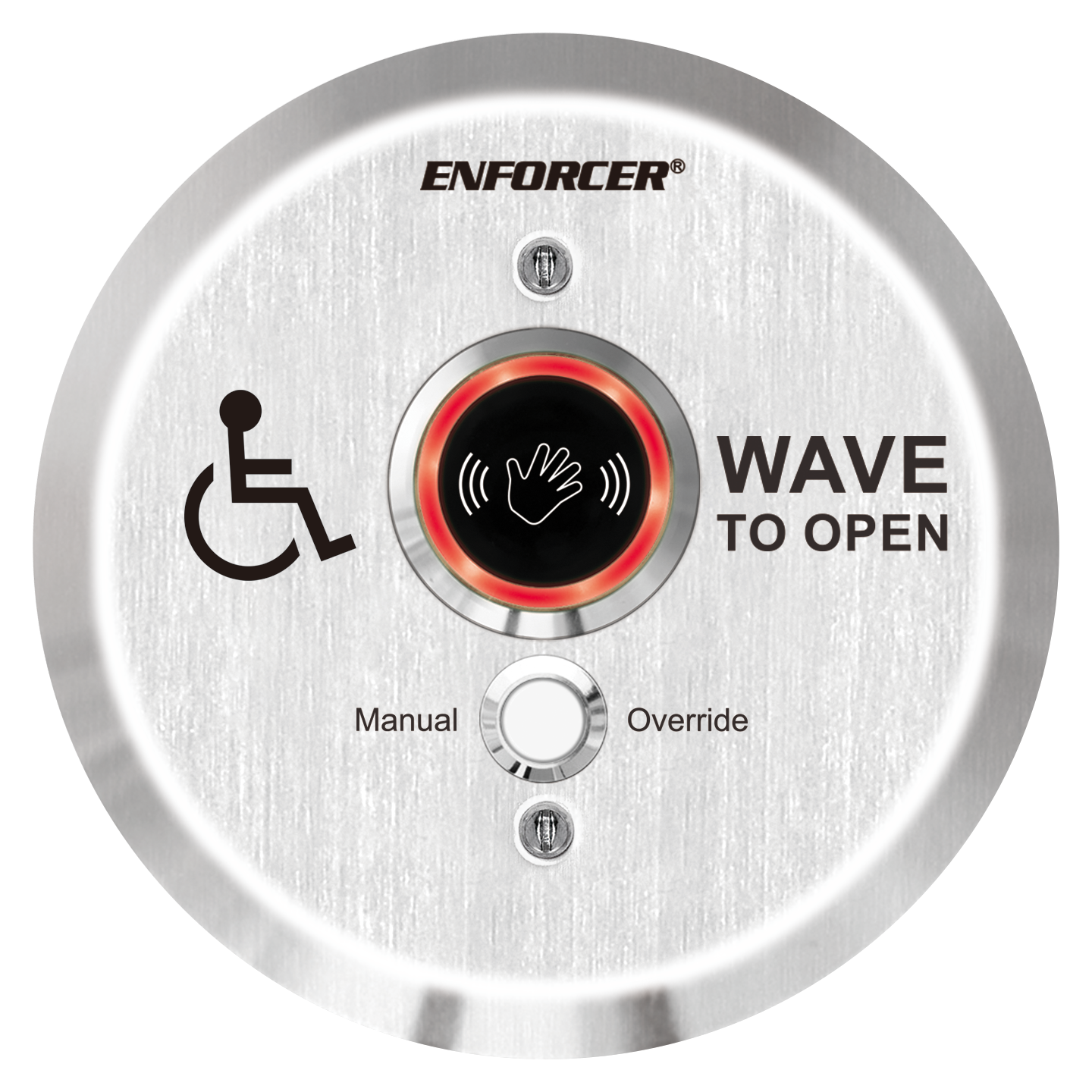

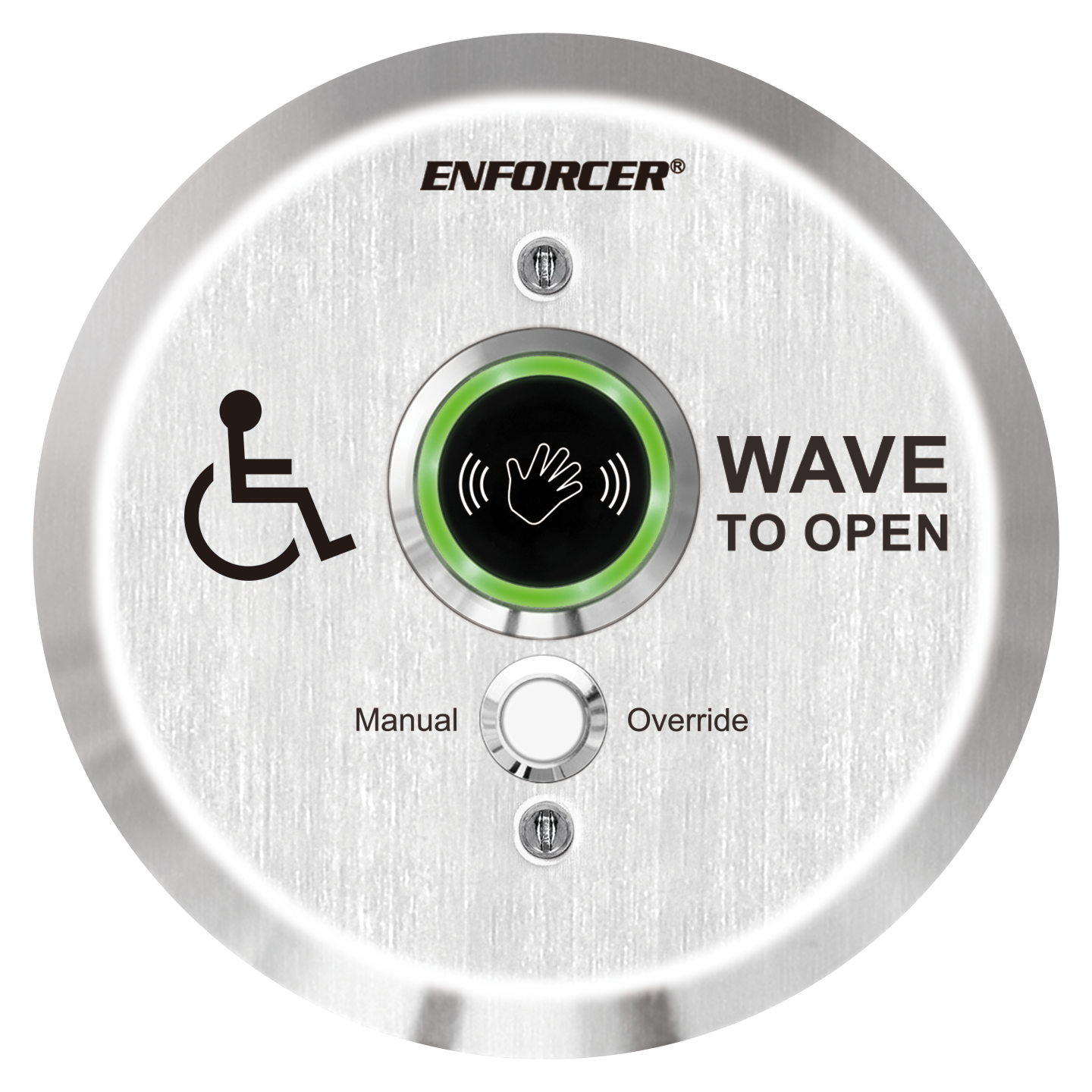

• Selectable LED color changes from red to green or green to red when activated
• Adjustable trigger duration supports timed or toggle operation
• IP65 weatherproof rating supports outdoor installations
• Designed for low-voltage access control wiring applications

Technical Context

The sensor activates a 1.2A relay when motion is detected within the adjustable range. LED color feedback provides a clear visual indication of activation status, helping users confirm operation in access control or door release applications.

Installation Notes

Power must be provided by a low-voltage power-limited/Class 2 power supply. Use only low-voltage field wiring, and do not exceed a wiring distance of 98.5 ft./ 30 m.
