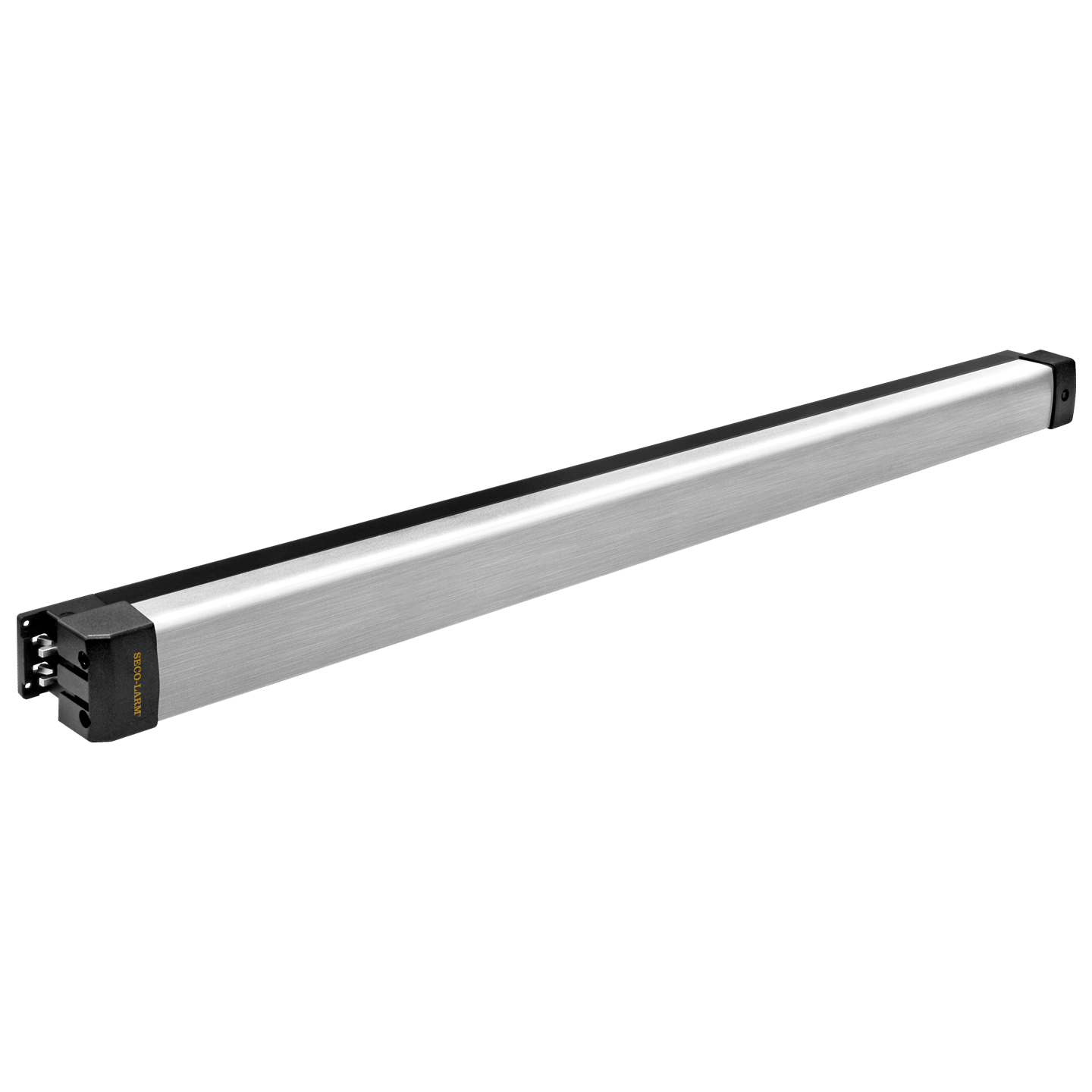

Seco-Larm - SD-961A-36GQ - Mechanical Push Bar, Silver

Product Overview

This push bar exit device is designed for secure door control while maintaining safe interior egress. It features fail-secure operation, a double-locking spindle for added security, and lock status monitoring for integration with access control or door monitoring systems.

Key Configuration

Push bar exit device with double-locking spindle. Fail-secure operation with interior release by pressing the bar. Reversible, non-handed aluminum alloy construction

Key Features

• • Double-locking spindle provides stronger and more secure locking performance
• • Lock status monitoring provides indication of lock condition
• • Mortise lock cylinder and keys are included for outside lock release
• • Dogging latch on the push bar allows the door to be held open when required
• • Includes hardware needed for typical installations

Technical Context

The device operates in fail-secure mode, keeping the door secured from the outside while allowing egress from the inside by pressing the push bar. Lock status monitoring allows connected systems to detect or report the lock condition.

Installation Notes

The reversible, non-handed design supports installation on either door handing configuration. The included mortise lock cylinder and keys provide exterior override access, while supplied hardware supports typical installation requirements.
