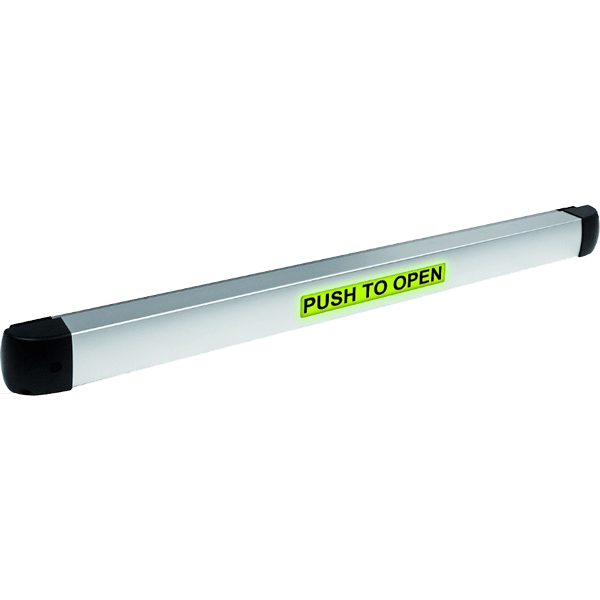

SECO-LARM - SD-961A-36SLQ - Illuminated Push-to-Open Bar
Part number:
SD-961A-36SLQ
Price:
- • Provides convenient on-door egress
- • LED makes it easy to see the status
- • Can be stand-alone or connected to an access control system
- • Dogging – standard dogging with hex key
- • For 36″ doors – actual length: 337/16” (85cm)
- • Can be cut to fit smaller doors, minimum 235/8” (60cm)
- • Two built-in non-latching (momentary), dual-contact switches (NO/NC/COM) rated at ≤5A@230VAC, adjustable 0.5~60 sec
- • Large LED shows red in standby and green when triggered, but is programmable red/green/blue by an access control panel
- • Blinking LED and buzzer programmable for relock warning
- • Built-in buzzer indicates unlocked (selectable, up to 92dB)
| Operating voltage | 12~24 VDC |
| Power consumption | 180mA@12VDC, 140mA@24VDC (max.) |
| Contact load | ≤5A@230VAC |
| Outputs | NO/NC/COM x2 |
| Trigger duration | 0.5~60 seconds (adjustable) or dogged open |
| Buzzer | Up to 92dB (adjustable) |
| LED Indicators – Colors | Stand-alone red/green, Controlled red/green/blue |
| LED Indicators – Size | 8-1/4″x1″ (210 × 25 mm) |
| Door width | 36″ (91.4cm), minimum 23-5/8″ (60cm) |
| Door Size | 32°~150° F (0°~70° C) |
| Dimensions | 33-7/16″x2-3/8″x2-3/8″ (850x61x61 mm) |
| Weight | 4-lb 10-oz (2.1kg) |
Name
Description
Size
Downloads
File
Product Information Sheet
0.3mb
File
MANUAL
0.5mb
The ENFORCER Illuminated Push-to-Open Bar is designed to work with an external electric strike or maglock, providing an exit from a protected area. It can operate in standalone mode or as part of an access control system and can also be locked open using a key. The buzzer, output timing and LED function and colours are also customisable.
