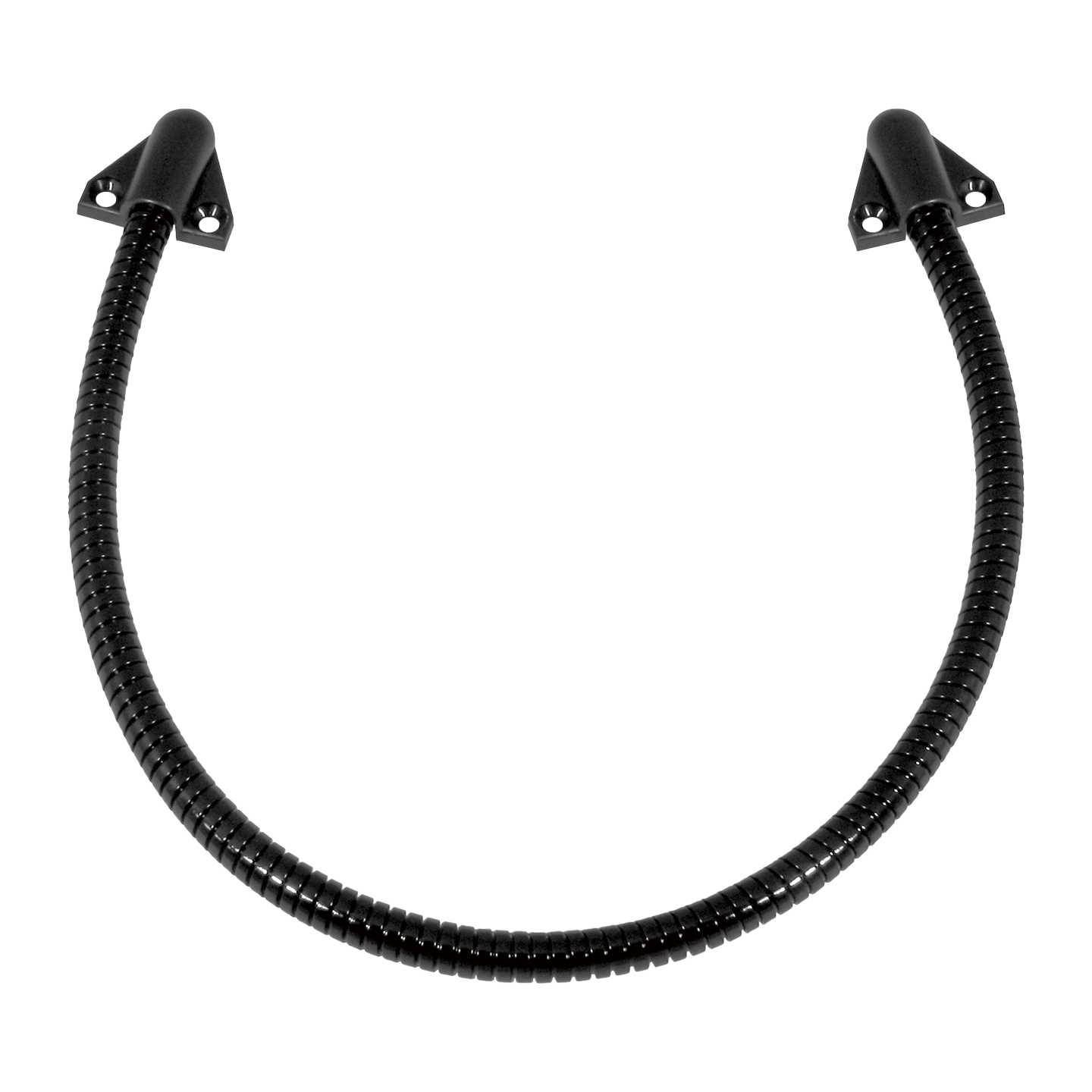

Seco-Larm - SD-969-A18/K - Armored Door Cord – Plastic end caps, 16″ (41cm), Black

Product Overview

This surface-mount door cord is designed to carry wiring for indoor electric locks and access control systems. It uses a stainless steel cord with plastic end caps to provide a protected wiring path between the door and frame.

Key Configuration

Surface-mount door cord for indoor electric lock and access system wiring. 16 in. / 41 cm stainless steel cord length. Plastic end caps with mounting screws included

Key Features

• • Designed to carry power wiring to electric locks or access control hardware
• • Suitable for indoor-mounted access system applications
• • Stainless steel cord helps protect wiring between the door and frame
• • Plastic end caps provide compact mounting termination points
• • Surface-mount design supports straightforward installation

Technical Context

The door cord provides a protected conduit for wiring that must pass to electrified locking hardware on a moving door. Its compact dimensions make it suitable for indoor access control applications where a simple surface-mounted wiring path is required.

Installation Notes

Mounting screws are included for surface installation. The inside door cord diameter is 5/16 in. / 8 mm, the outside diameter is 7/16 in. / 11 mm, and the end cap dimensions are 1-3/6 in. x 1/2 in. x 1-3/8 in. / 30 x 13 x 35 mm.
