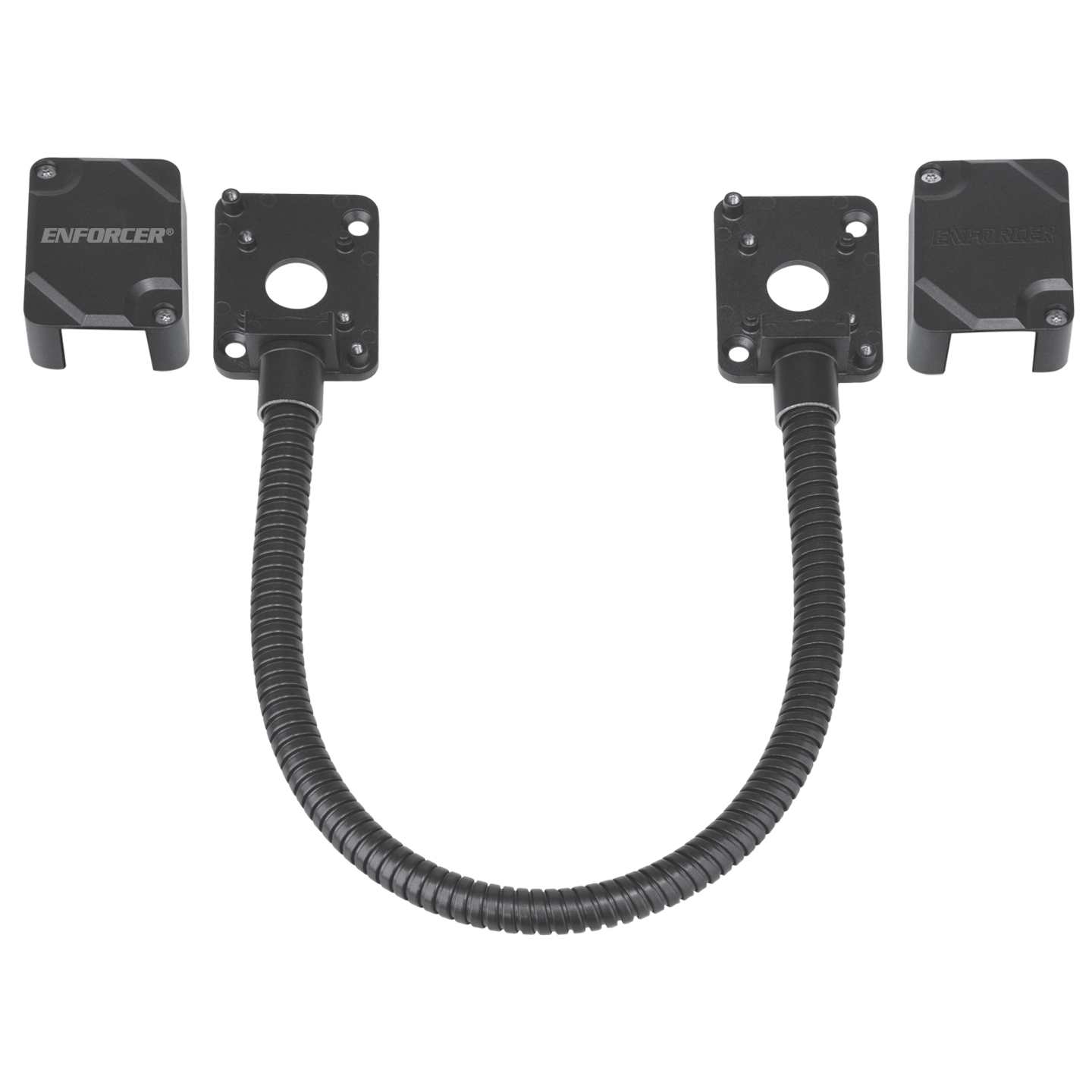

Seco-Larm - SD-969-M15Q/K - Armored Electric Door Cord – Removable Covers, Black, 15” (39cm)

Product Overview

This surface-mounted armored door cord is designed to carry wiring for electric locks and access control systems. Its removable cover allows the installer or technician to access wiring while the door cord remains mounted, helping protect screws and mounting points from repeated removal.

Key Configuration

Surface-mounted door cord for electric locks and access system wiring. 15 in. / 39 cm stainless steel armored cord. End cap dimensions: 2-3/16 in. x 7/8 in. x 1-9/16 in.

Key Features

• • Designed to carry power wiring to electric locks or access control hardware
• • Removable cover allows wiring access without removing the cord from the door
• • Helps prevent stripping of screws and mounting points during service
• • Security screws are included to help prevent tampering
• • Available in black, bronze, or silver finish options

Technical Context

The stainless steel armored cord protects wiring as it passes between the door and frame in electrified locking and access control installations. The design supports clean surface mounting while maintaining service access through the removable cover.

Installation Notes

The unit is surface-mounted and includes security screws for tamper resistance. The inside door-cord diameter is 5/16 in. / 8 mm, and the outside door-cord diameter is 7/16 in. / 11 mm.
