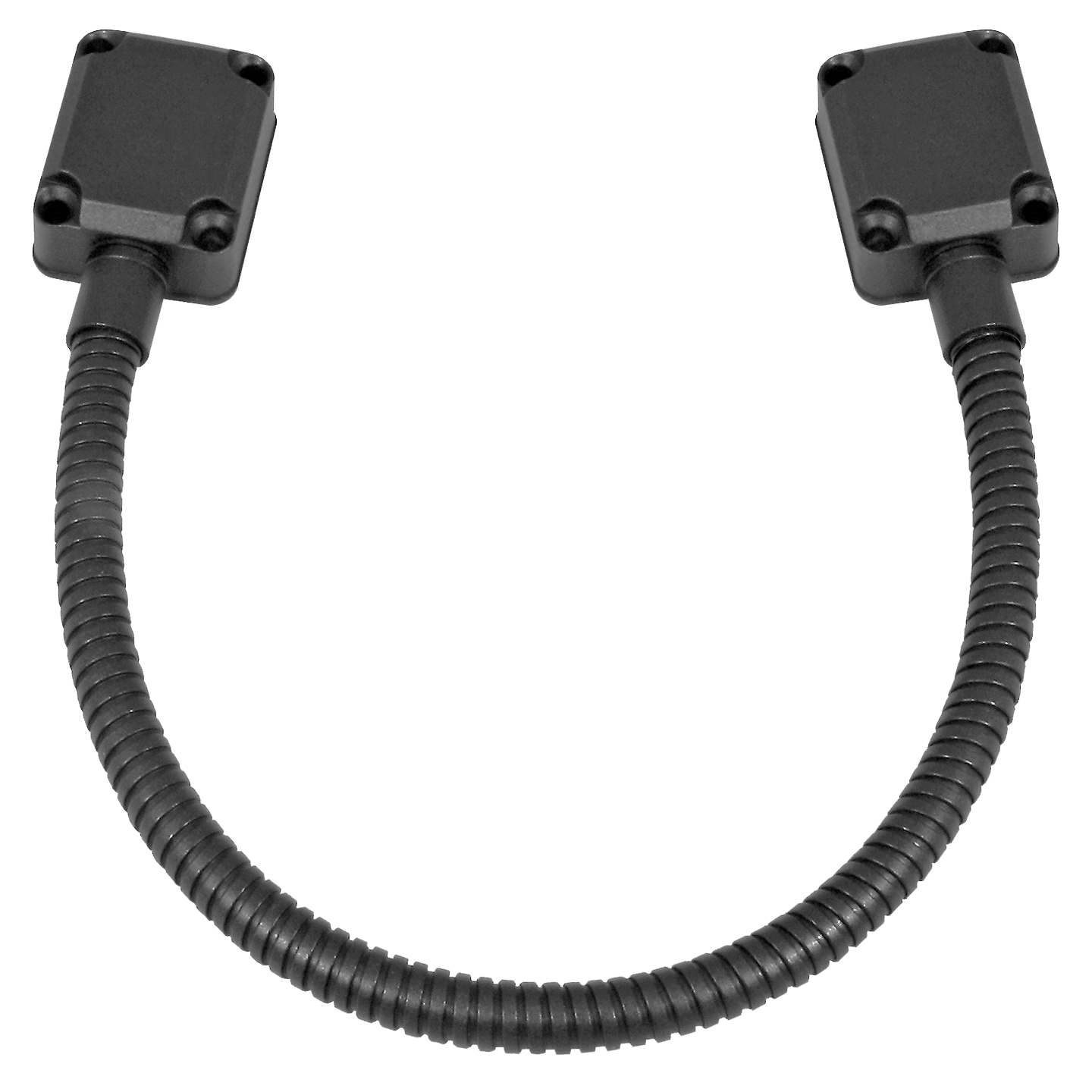

Seco-Larm - SD-969-S18/K - Armored Door Cord – Die-cast aluminum end caps, 16″ (40cm), Black

Product Overview

This surface-mount door cord is designed to carry wiring for indoor electric locks and access control systems. It features a stainless steel cord with die-cast aluminum end caps, providing a protected wiring path between the door and frame.

Key Configuration

Surface-mount door cord for indoor electric lock and access system wiring. 16 in. / 40 cm stainless steel cord length. Die-cast aluminum end caps with mounting screws included

Key Features

• • Designed to carry power wiring to electric locks or access control hardware
• • Suitable for indoor-mounted access system applications
• • Stainless steel cord helps protect wiring between the door and frame
• • Die-cast aluminum end caps provide durable termination points
• • Surface-mount design supports straightforward installation

Technical Context

The door cord provides a protected conduit for wiring that must pass to electrified locking hardware on a moving door. Its stainless steel construction and aluminum end caps support durable indoor use in access control installations.

Installation Notes

Mounting screws are included for surface installation. The inside door cord diameter is 5/16 in. / 8 mm, the outside diameter is 1/2 in. / 12.7 mm, and the end cap dimensions are 1-7/8 in. x 7/8 in. x 1-9/16 in. / 48 x 22 x 40 mm.
