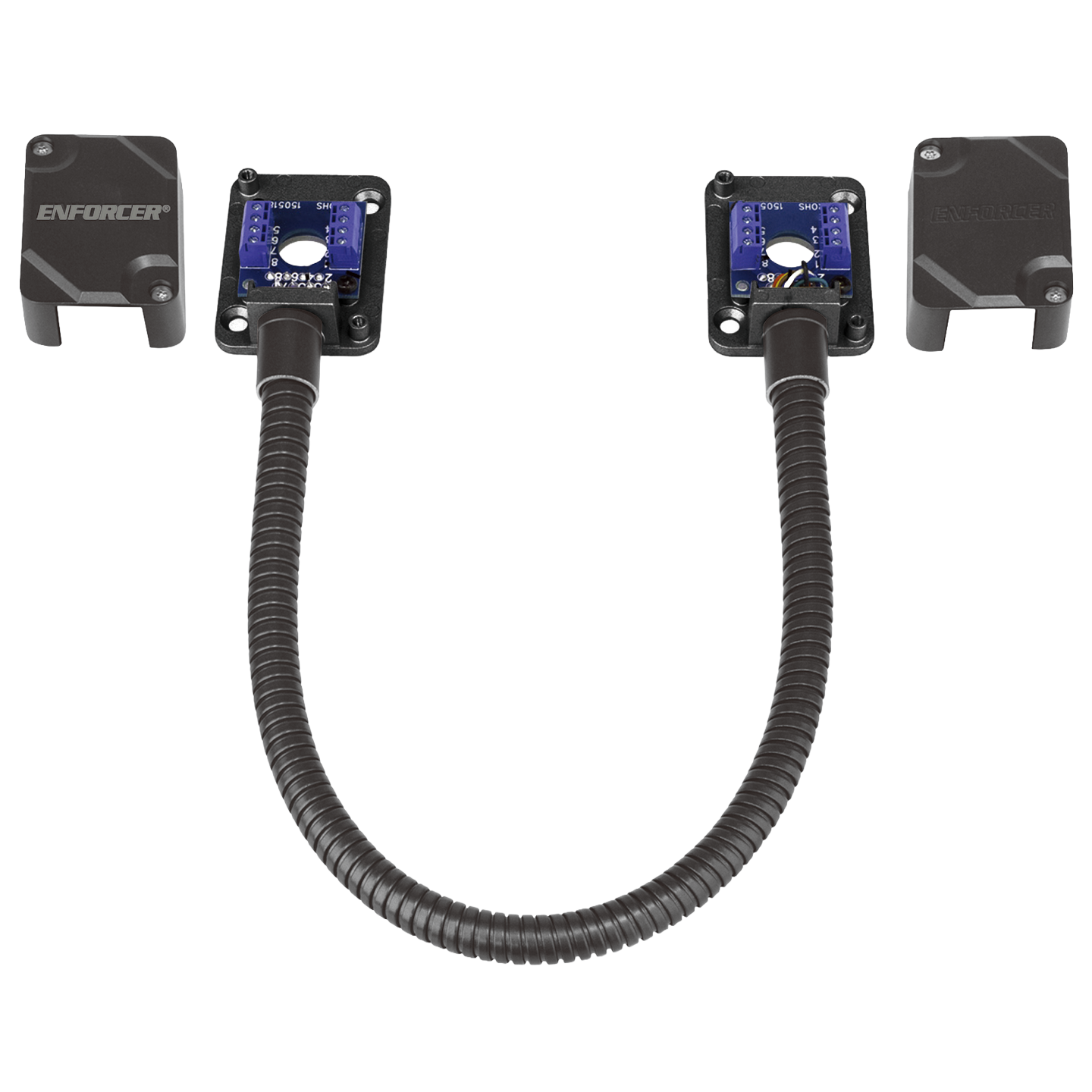

Seco-Larm - SD-969-T15Q/K - Armored Door Cord – Pre-Wired Terminal Blocks and Removable Covers, Black, 15” (39cm)

Product Overview

This surface-mounted armored door cord is designed to carry wiring for electric locks and access control systems. Its removable cover allows wiring access without removing the cord from the door, helping simplify service while protecting mounting points from repeated screw removal.

Key Configuration

Surface-mounted door cord for electric locks and access systems. 15 in. / 39 cm stainless steel armored cord. Terminal blocks with pre-wired cables provide 8 connections

Key Features

• • Designed to carry power wiring to electric locks or access control hardware
• • Removable cover allows service access while the door cord stays mounted
• • Pre-wired terminal blocks support quick, easy, and secure installation
• • Security screws are included to help prevent tampering
• • Available in black, bronze, or silver finish options

Technical Context

The door cord supports a maximum current of 3A at 30VAC/VDC and includes 8 pre-wired connections for access control wiring. The stainless steel armored construction helps protect conductors as they pass between the frame and moving door.

Installation Notes

The unit is surface-mounted and includes security screws for tamper resistance. The inside door-cord diameter is 5/16 in. / 8 mm, the outside diameter is 7/16 in. / 11 mm, and the end cap dimensions are 2-3/6 in. x 7/8 in. x 1-9/16 in.
