SECO-LARM - SD-993B-SS - Bluetooth Access Controller – Post-Mount Keypad / Proximity Reader
Part number:
SD-993B-SS
Price:
- • Spring-loaded locking bolts and magnetic bond holds doors securely in place with approximately 1,500 pounds (680kg) of shear holding force
- • No residual magnetism
- • MOV Surge protection
- • Concealed security for remote access and exit control of aluminum and steel doors or gates
- • Smaller size for use with most metal door jambs
- • Zinc-plated magnet and armature, anodized aluminum housing
- • Works with sliding, single-action, and double-action (swing-through) doors and gates
- • Use with an optional digital keypad for keyless high security
- • Easily connects to SECO-LARM’s Electronic Keypads
- • Fail-safe operation (unlocks if power is lost)
- • Armature plate adjusts to compensate for gaps between door and frame
- • Complete mounting hardware for typical installations
- • Additional brackets available for surface mounting or glass-door mounting
- • 12/24VDC Selectable
| Operating Voltage | 12VDC or 24VDC |
| Current Draw | 420mA@12VDC, 210mA@24VDC |
| Door Gap | Max. 1/16″ (2mm) |
| Holding Force | 1,500 lbs. (680 kg.) |
| Armature Assembly Dimensions (Faceplate) | 7-1/8″ x 1-3/16″ x 1-5/8″ (180 x 30 x 42 mm) |
| Magnet Housing Dimensions (Faceplate) | 7-1/8” x 1-3/16” x 1-1/16” (180 x 30 x 27 mm) |
| Weight | 2lbs., 8oz. (1.1kg) |
Name
Description
Size
Downloads
File
Product Information Sheet
1mb
File
Manual
0.7mb

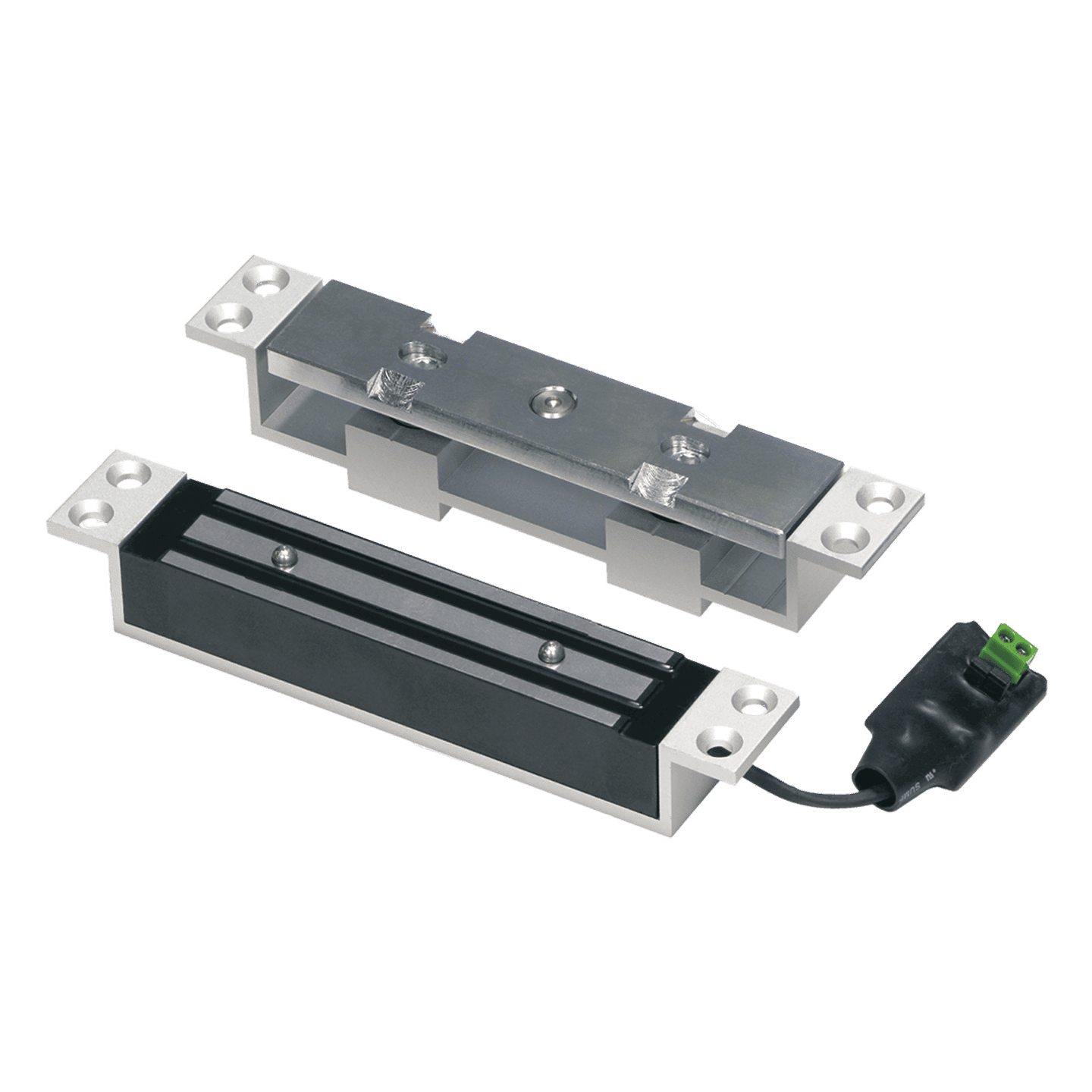

This concealed security system provides remote access and exit control for aluminium and steel doors or gates. It works with sliding, single-action and double-action (swing-through) doors and gates. Plated steel plugs and a magnetic bond hold doors securely in place with approximately 1,500 pounds (680 kg) of shear force. Surface-mount and U-brackets are also available for surface-mount and glass-door applications.
