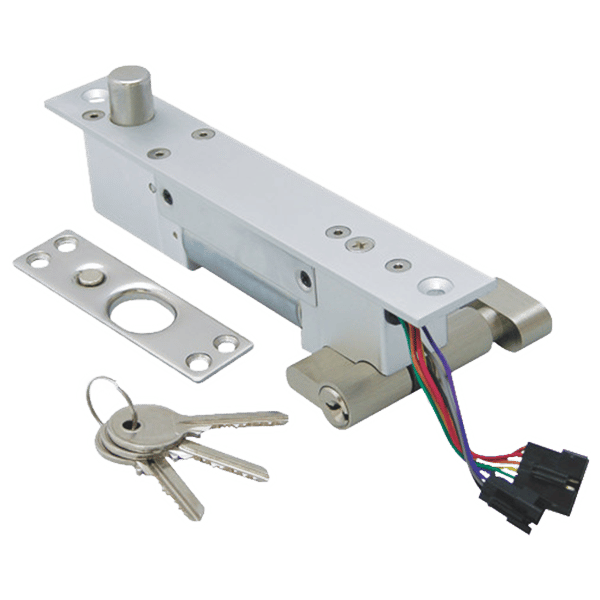

SECO-LARM - SD-997A-GBQ - Electric Deadbolt - Fail-Secure
Part number:
SD-997A-GBQ
Price:
- • Dual voltage – 12/24 VDC
- • Stainless steel for strength and long life with stainless steel bolt, 5/8″ diameter, 5/8″ throw
- • Magnetic switch senses door position for positive locking
- • Door open/close monitor (NO/NC/COM)
- • Adjustable door lock delay timer
- • Shallow design for use with most metal door jambs
- • Powered by a solenoid
- • Attempts to relock multiple times if the door is not closed properly
| Operation type | Fail-secure |
| Operation voltage | 12/24 VDC |
| Current Draw | Standby: 330mA@12VDC / 205mA@24VDC |
| Active: 880mA@12VDC / 470mA@24VDC | |
| Door status sensor | SPDT 250mA@12VDC (NO/NC/COM) |
| Lock delay timer | 0/3/5/9 sec (adjustable) |
| Operating humidity | 0~85% non-condensing |
| Operating temperature | 32~194° F (0~90° C) |
| Dimensions | Lock: 7-7/8″x1-1/4″x1-9/16″ (200×31.8×40.5 mm) |
| Strike plate: 3-9/16″x1″x1/8″ (90×25.7×3 mm) | |
| Weight | 2-lb 5-oz (1kg) |
Name
Description
Size
Downloads
File
Manual
0.3mb
File
Product Information Sheet
0.4mb
SECO-LARM electric deadbolts provide concealed security for most wooden or hollow metal doors and offer the added convenience of electrical operation. They are designed for hollow metal door frames and are not recommended for wooden ones, although the door itself can be made of either material.
