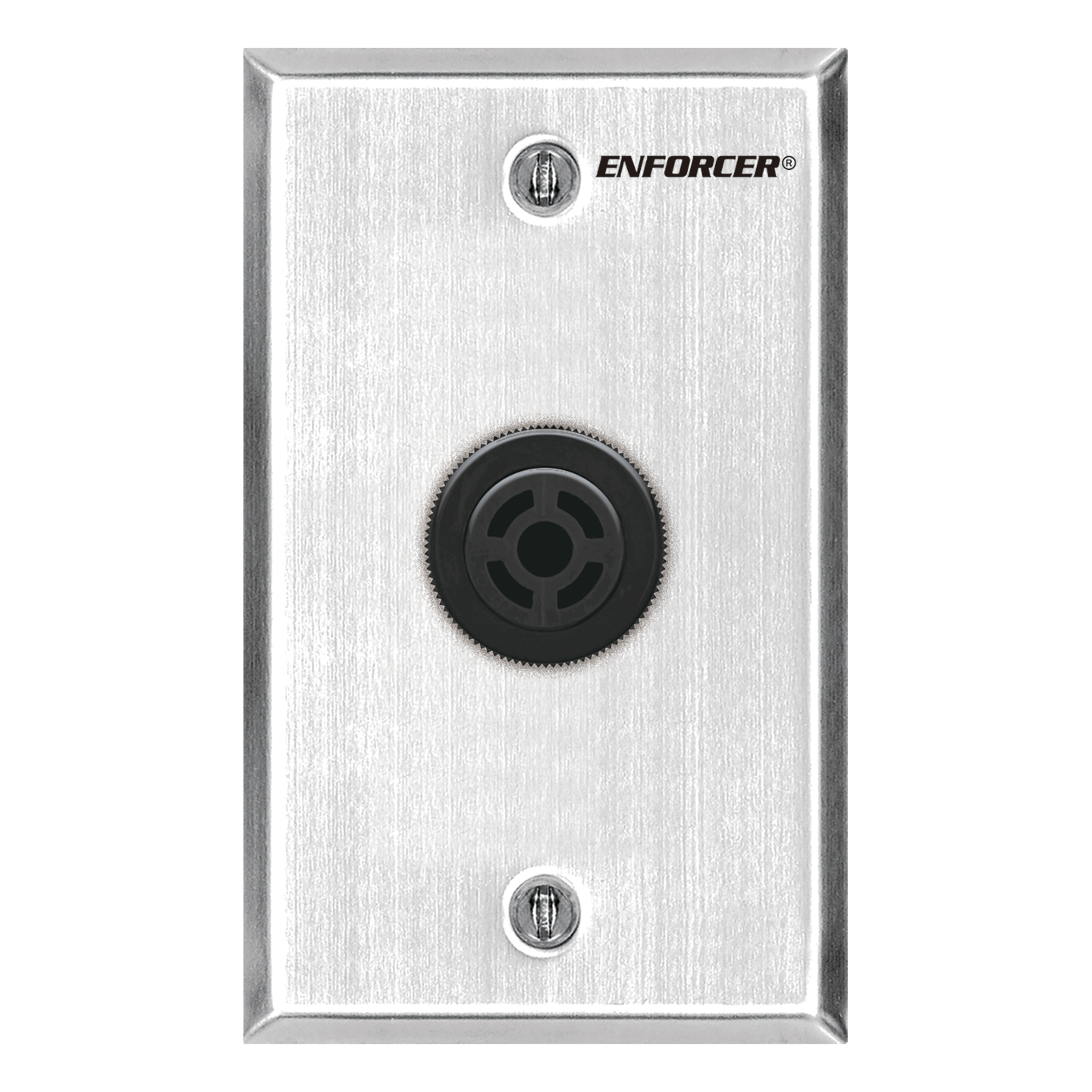

Seco-Larm - SH-313B - Miniature Electronic Buzzer Plate – Single-gang

Product Overview

The Miniature Electronic Buzzer Plate is a single-gang audible signaling device designed for door release buzzer applications. Operating on 12VDC with a 93dB output, it provides a compact and clear alert for access control and entry systems.

Key Features

• • Designed for door release buzzer applications
• • Single-gang faceplate supports standard wall plate installation
• • Provides 93dB audible notification
• • Operates on 12VDC power
• • Low 35mA current draw supports efficient system integration

Technical Context

The buzzer plate is intended for access control systems where an audible signal is needed during door release or entry events. Its 12VDC power requirement and low current draw make it suitable for compatible control panels and door release circuits.

Installation Notes

The single-gang faceplate format allows the buzzer to be installed in standard single-gang locations for a clean, professional appearance. Installers should confirm 12VDC power availability and verify that the connected circuit supports a 35mA current draw.
