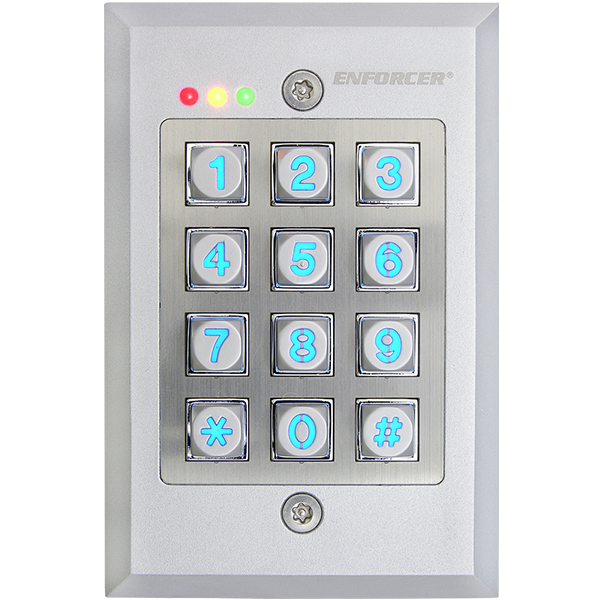

Flush-Mount Outdoor Illuminated Stand-Alone Keypad. Weather resistant and vandal resistant. 1100 Users, two outputs, 12~24 VDC/VAC operation. Includes duress, quick code, wrong-code lockout, smart egress input, visitor codes, three LEDs, built-in buzzer, and back box.

Features:

• 12~24 VAC/VDC auto-adjusting operation
• Up to 1,000 possible user codes (000~999) programmable for output #1 and 100 (001~100) for output #2
• Up to 50 (01~50) possible temporary visitor codes, which can be programmed for one-time or limited-time use (1~99 hours)
• Output #1: Form C relay, 1A@30VDC max.
• Output #2: Transistor ground, 100mA@24VDC
• Outputs #1 and #2 can be programmed to activate for up to 99,999 seconds (nearly 28 hours)
• Tamper output: N.C. Dry contact, 50mA@24VDC max
• Mounts to standard single-gang back box
• IP66 Weatherproof rating
• Keypad illuminates when a button is pressed; backlight can be programmed for FULL or AUTO in standby mode
• All features are programmed directly from the keypad: No need for an external programmer
• EEPROM Memory protects programmed information in case of power loss
• Up to 50 (01~50) duress codes for output #1, 10 (01~10) for output #2
• Duress code signals a silent alarm if an authorized user is forced to open the door under duress
• Egress input lets users exit the premises without keying in the code
• Door sensor input for anti-tailgating operation
• Interlocking input for connecting to a second keypad
