Seco-Larm - SK-1323-BPQ - Sealed Black Housing Weatherproof Stand-Alone Digital Access Keypad

Product Overview

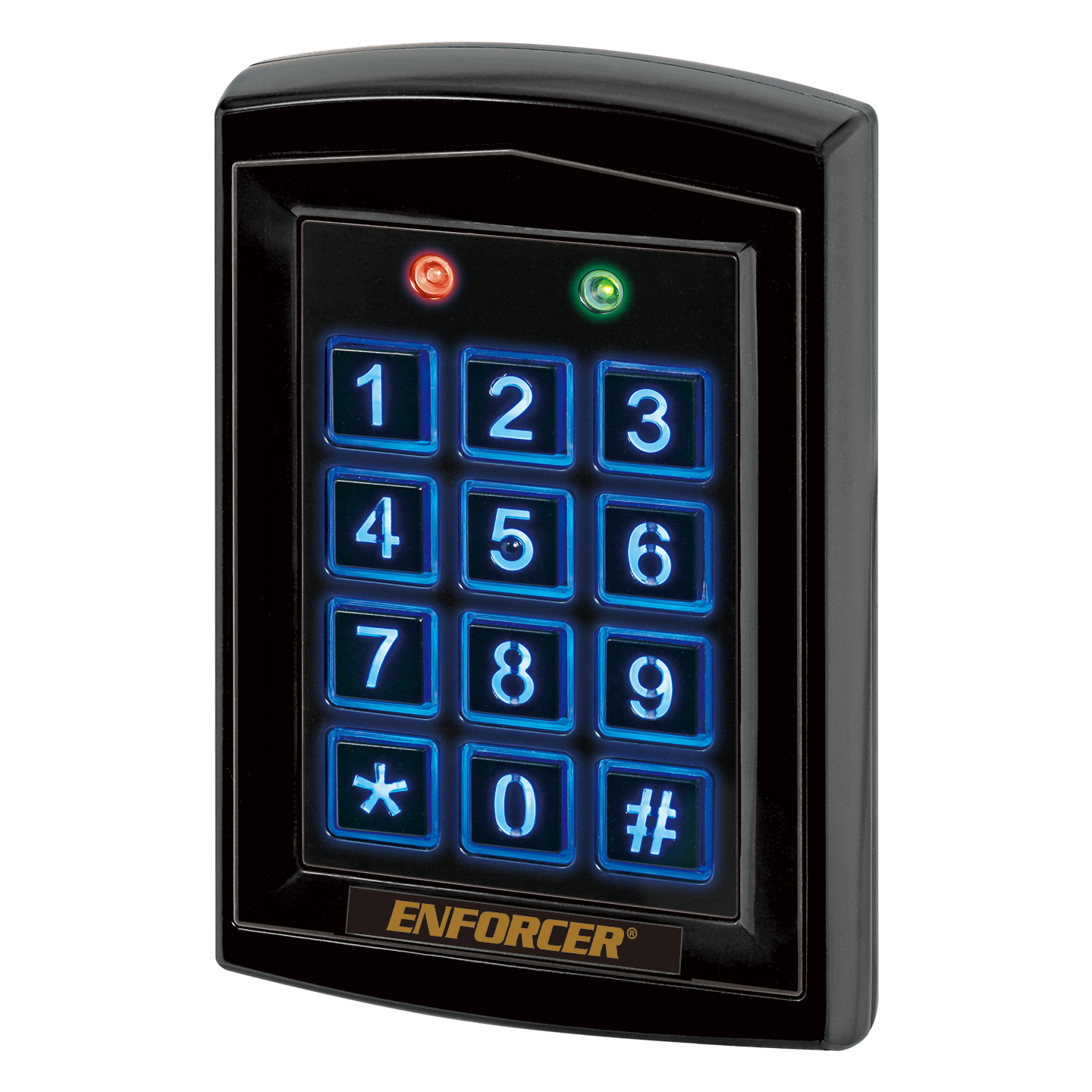

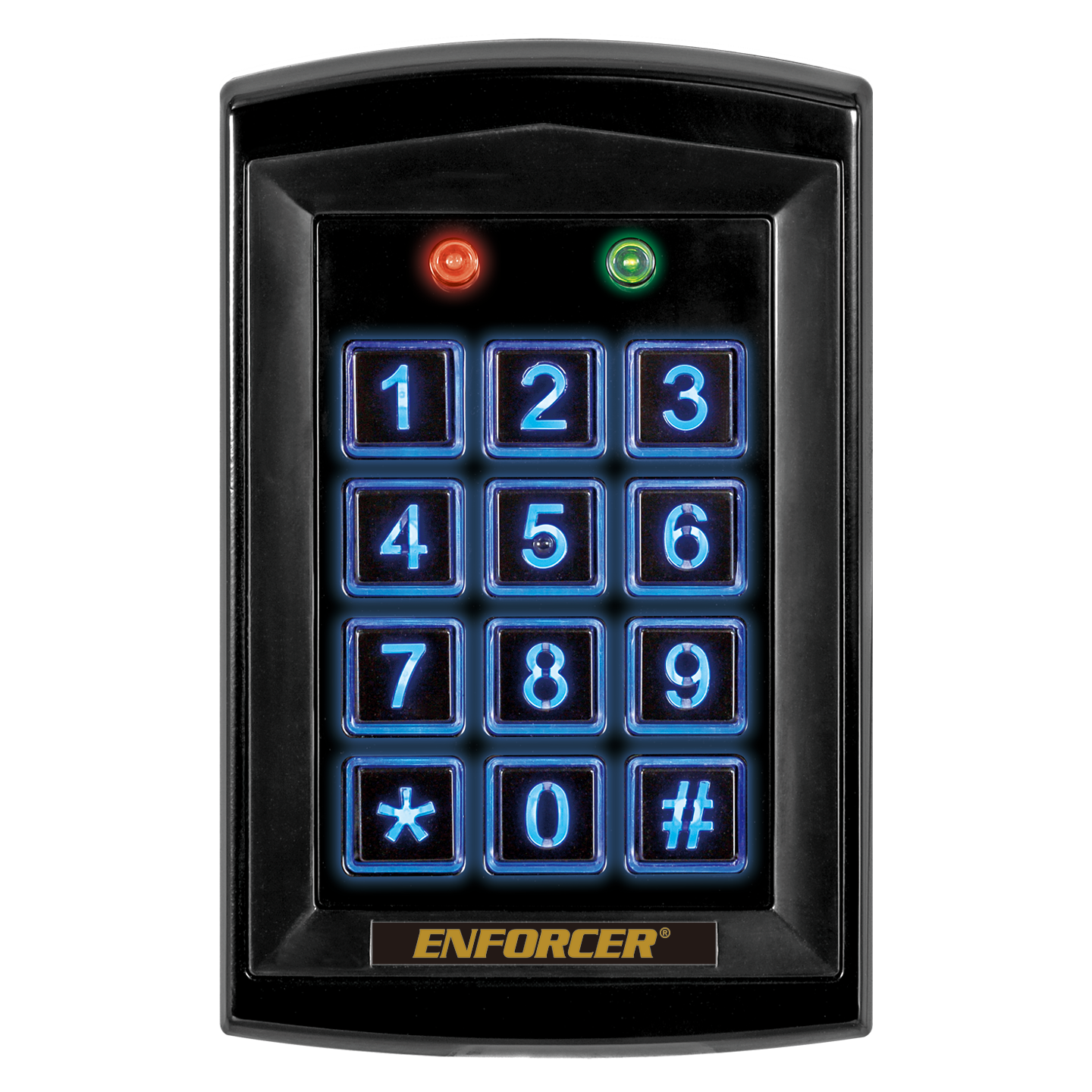

The SECO-LARM SK-1323-BPQ is a sealed black stand-alone access-control keypad with a built-in proximity card reader. Designed for demanding commercial environments, it provides support for up to 1,010 user codes, two programmable Form C relay outputs, egress inputs, and IP65 weatherproof protection.

Key Configuration

Model: SK-1323-BPQ | Product Type: Stand-alone keypad with proximity card reader | Power: 12–24VAC/VDC | User Capacity: 1,010 codes | Outputs: 2 Form C relays, 1A at 30VDC | Protection: IP65 | Housing: Epoxy-sealed rugged aluminum, black

Key Features

• · Built-in proximity card reader
• · Supports up to 1,010 user codes
• · Operates on 12–24VAC/VDC power
• · Two Form C relay outputs rated 1A at 30VDC
• · Relay outputs programmable from 1 to 99 seconds or toggle mode
• · Output 2 can be programmed for doorbell operation
• · Two egress inputs for code-free exit activation
• · Backlit keys for nighttime operation
• · Door sensor input supports anti-tailgating operation
• · IP65 epoxy-sealed aluminum housing with optical tamper protection

Technical Context

The SK-1323-BPQ combines PIN-based access and proximity credential reading in a self-contained controller. Its two programmable relays can control separate access or signaling functions, while EEPROM memory preserves programmed information during power loss and the door-sensor input supports anti-tailgating logic.

Installation Notes

Mount the keypad on a suitable surface and connect it to a regulated 12–24VAC/VDC supply. Wire the relay outputs, egress inputs, door sensor, and optional doorbell function as required, then program users and operating parameters directly from the keypad. Ensure cable entries and mounting points maintain the IP65 weatherproof installation.
