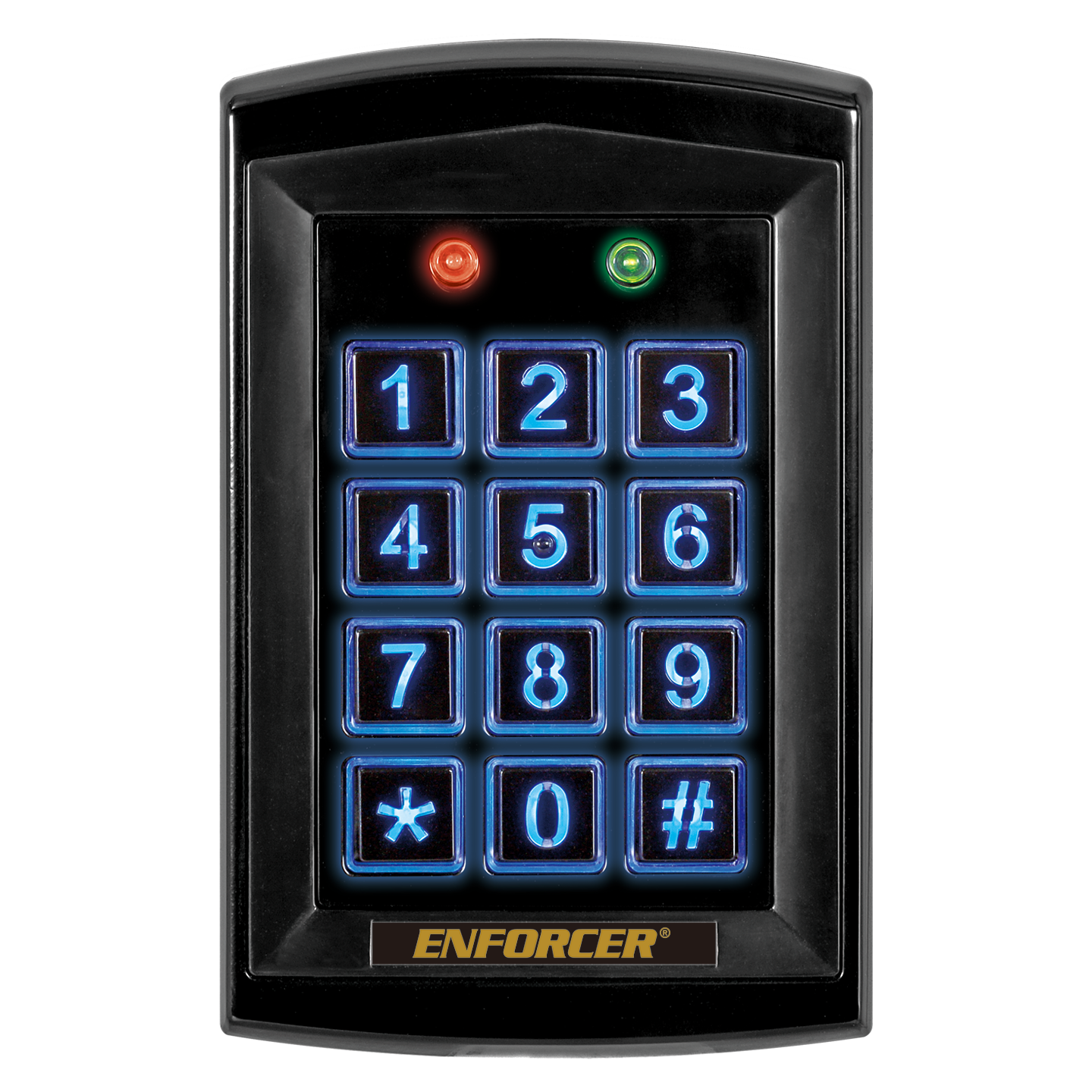

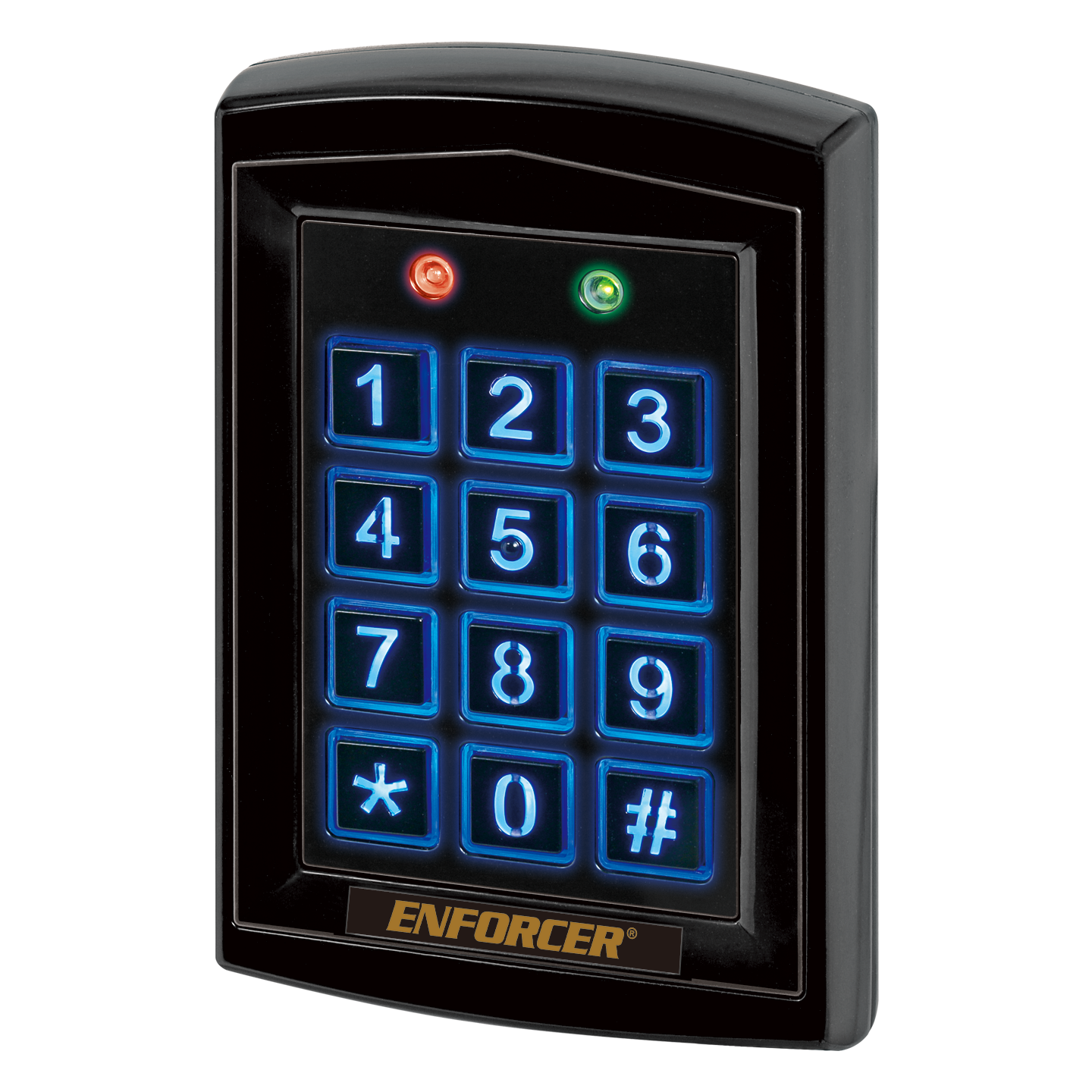

Seco-Larm - SK-1323-BPQ - Sealed Black Housing Weatherproof Stand-Alone Keypad with Proximity Card Reader

Product Overview

The Sealed Black Housing Weatherproof Stand-Alone Keypad with Proximity Card Reader is designed for secure access control in demanding commercial environments. Its epoxy-sealed IP65 weatherproof construction, built-in card reader, and stand-alone programming support flexible outdoor door control without requiring an external programmer.

Key Configuration

Stand-alone access control keypad with built-in proximity card reader. 12~24 VAC/VDC operating voltage. Supports up to 1,010 user codes with 2 programmable Form C relay outputs

Key Features

• Relays: Two Form C relays rated 1A @ 30VDC with programmable 1–99 sec timed or toggle operation.
• Output: Output #2 configurable for doorbell function.
• Inputs: Two egress inputs for code-free exit.
• Interface: Backlit keys for easy nighttime use.
• Security: Door sensor input supports anti-tailgating protection.

Technical Context

The keypad stores programmed information in EEPROM memory to protect settings in case of power loss. All features can be programmed directly from the keypad, while the optical tamper function adds security against unauthorized interference.

Installation Notes

The circuitry is fully sealed with epoxy inside a rugged aluminum housing, providing IP65 weatherproof protection for outdoor installations. The unit supports 12~24 VAC/VDC power and includes integrated keypad and proximity card access in a compact black housing.
