SECO-LARM - SK-1323-SPQ - Sealed Housing Weatherproof Stand-Alone Keypad with Proximity Card Reader

Product Overview

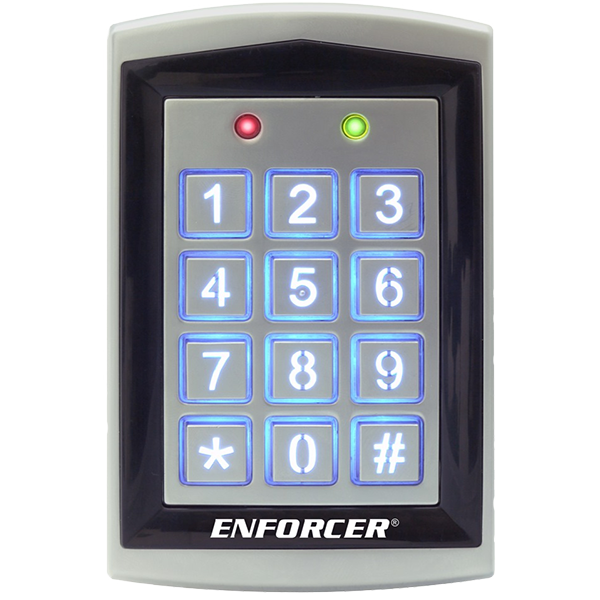

The SECO-LARM SK-1323-SPQ is an IP65-rated weatherproof outdoor stand-alone keypad with a built-in 125 kHz proximity card reader. It features 2 Form C relays (1A @ 30VDC), 2 egress inputs, 1 door sensor input, optical tamper protection, fully epoxied circuitry for environmental durability, and programmable access modes including Card Only, Card or Code, and Card with Code.

Key Configuration

• • Operating voltage: 12-24 VAC/VDC
• • Current draw: 64mA (standby) / 92-120mA (active) @ 12VDC
• • Relay outputs: 2 × Form C, 1A @ 30VDC, NO/COM/NC
• • Egress inputs: 2 × N.O. Ground; Door sensor: N.C. Ground
• • Proximity reader: 125 kHz, read range up to 50mm (1-15/16")
• • Dimensions: 120 × 76 × 22 mm (4.75" × 3" × 0.875"); weight: 510g

Key Features

The SK-1323-SPQ is a weatherproof stand‑alone keypad with an integrated 125 kHz proximity card reader, supporting 1,010 users total — 1,000 for Output #1 and 10 for Output #2. Output #1 offers three programmable access modes (Card Only, Card or Code, Card with Code), while Output #2 can be configured per user for card or code access, and may also be set to function as a doorbell trigger.

Technical Context

Two Form C relays (1A @ 30 VDC) control independent outputs, with programmable relay timing from 1‑99 seconds or toggle mode. It includes two egress inputs, one door sensor input, and an optical tamper sensor that triggers an alarm if the unit is removed from its mounting surface, while fully epoxied circuitry protects against moisture and environmental damage.

Installation Notes

The IP65‑rated aluminum housing (120 × 76 × 22 mm, 510 g) operates from -20 °C to 50 °C, powered by 12‑24 VAC/VDC with 64 mA standby and 92‑120 mA active draw. All programming is performed directly from the backlit keypad with EEPROM memory retaining settings during power loss, and it mounts to a single‑gang back box. Proximity cards (125 kHz) are sold separately.
