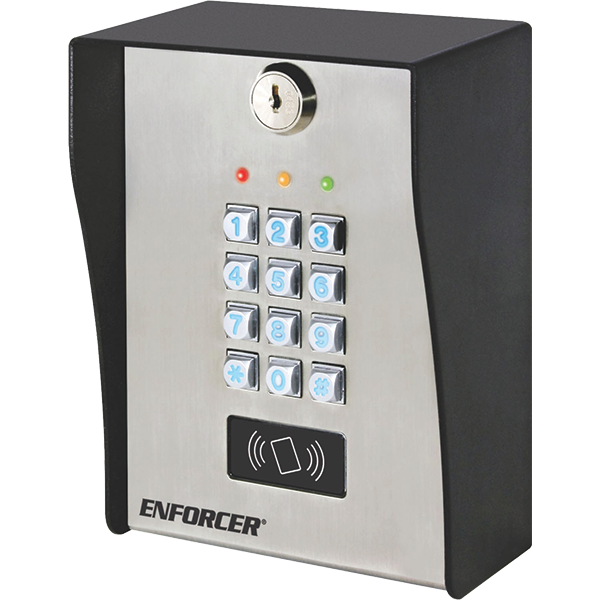

SECO-LARM - SK-3133-PPQ - Heavy-Duty Outdoor Access Control Keypad with Proximity Reader
Product Overview
The SECO‑LARM SK‑3133‑PPQ is a heavy‑duty outdoor access control keypad with a built‑in 125 kHz proximity reader, featuring a stainless steel faceplate and coated steel housing with an IP66 weatherproof rating. It includes 3 Form C relay outputs (5A and 1A), Wiegand output (26‑37 bits), and auto‑adjusting 12‑24 VAC/VDC operation for versatile and secure access management.
Key Configuration
• Operating voltage: 12-24 VAC/VDC (auto-adjusting)
• Current draw: 80mA standby / up to 220mA active @ 12VDC
• Output 1: Form C relay, 5A @ 24VDC max
• Outputs 2 & 3: Form C relay, 1A @ 24VDC max each
• Proximity: 125 kHz (EM125), read range up to 38mm (1.5")
• Wiegand output: 26-37 bits
Key Features
The SK‑3133‑PPQ is a heavy‑duty outdoor keypad with a built‑in 125 kHz proximity reader, offering 1,000 codes/cards for Output 1 and 100 each for Outputs 2 and 3, plus up to 50 visitor codes (one‑time or time‑limited) and 50 duress codes (Output 1) with 10 each for Outputs 2 and 3. It supports three independent Form C relay outputs (5A and 1A), Wiegand output (26‑37 bits), and inputs for egress, door sensor, inhibit, and interlock, with programmable relay times up to 99,999 seconds.
Technical Context
The IP66‑rated stainless steel and coated steel housing (133 × 180 × 85 mm, 1.7kg) operates from -20°C to 70°C on 12‑24 VAC/VDC with backlit keys, tamper output, and EEPROM memory, with all programming done directly from the keypad.
| Operating Voltage | 12~24 VAC/VDC |
| Current Draw (@12VDC) | Standby: 80mA |
| Keypress: 114mA | |
| Output 1 active: 150mA | |
| Outputs 1 & 2 active: 180mA | |
| Outputs 1,2, & 3 active: 220mA | |
| Wiegand data output: 150mA | |
| Outputs | #1 Form C: 5A@24VDC |
| #2 Form C: 1A@24VDC | |
| #3 Form C: 1A@24VDC | |
| K or A: 100mA@24VDC | |
| Durass: 100mA@24VDC | |
| Interlock: 100mA@24VDC | |
| Tamper: 50mA@24VDC | |
| Wiegand: 26~37bits | |
| Inputs | Egress: N.O. |
| Ground Door sensor: N.C. | |
| Ground Door inhibit: N.O. Ground | |
| Proximity reader frequency | 125kHz (EM125) |
| Proximity reader sensing distance | 1-1/2″ (38mm) |
| IP Rating | Weatherproof IP66 |
| Operating humidity | 5~95%, non-condensing |
| Operating Temperature | -4º~158º F (-20º~70º C) |
| Material | Faceplate:1/16″ (1.5mm) Stainless steel |
| Housing: 5/64″ (2mm) Anodized steel, powder paint | |
| Dimensions | 5-1/4″x7-1/16″x3-3/8″ (133x180x85 mm) |
| Weight | 3-lb 12-oz (1.7kg) |
