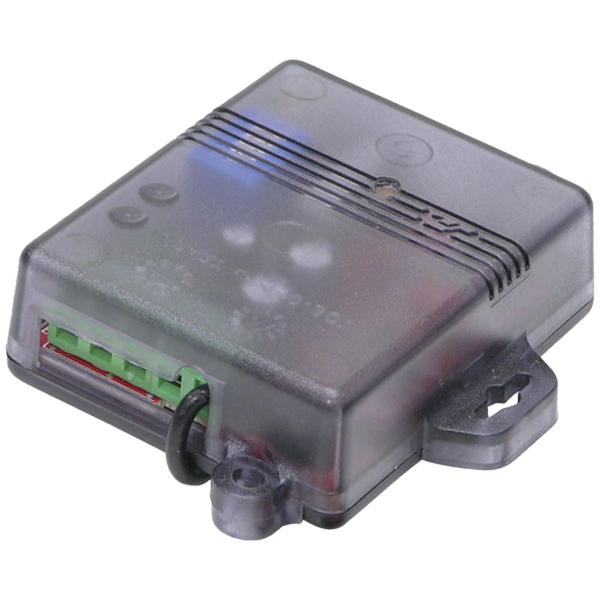

SECO-LARM - SK-910RAQ - 1-Channel Miniature 315MHz RF Receiver with Relay Output
Part number:
SK-910RAQ
Price:
- • Small size: 33/16“x29/16“x3/4” (80 x 65 x 19 mm)
- • Control garage doors, etc.
- • Four programmable relay output modes: 4-Second momentary, 1-second momentary, toggle, and validity outputs
- • Flexible operating voltage: 11-24 V AC/DC (16~24 VAC/DC must cut LP4)
- • Compatible with all 315MHz ENFORCER transmitters, including both fixed-code and code-hopping (CODEBUMPTM)
- • 315MHz (433.92MHz) available
- • LED Indicates RF reception, learn mode entered, transmitter learned, and memory cleared
- • Mode switches for easy transmitter learning
| Type | WIRELESS – 1-Channel Miniature RF Receiver Relay Output |
| Operating voltage | 11-24 V AC/DC (16~24 VAC/DC must cut LP4) |
| Output Mode | 3A Form ‘C’ relay (NO/NC/C) |
| Current Draw | 5mA standby, 50mA LED flashing @ 12VDC |
| Output type | Transistor GND x 1, 5A@12VDC |
| Transmitter | Compatible with all ENFORCER 315MHz transmitters |
| Dimensions | 3-3/16″ x 2-9/16″ x 3/4″ (80 x 65 x 19 mm) |
Name
Description
Size
Downloads
File
Product Information Sheet
1mb
File
Manual
0.1mb
This mini RF receiver is compatible with all 315 MHz ENFORCER transmitters, including code-hopping and fixed-code models. See page 4 of the manual for a full list of compatible transmitters. It can be used for various applications, such as enabling the same transmitter to open and close both a gate and a garage door. The receiver is available in one- or two-channel versions. Each channel can store up to 15 different transmitter button codes.
