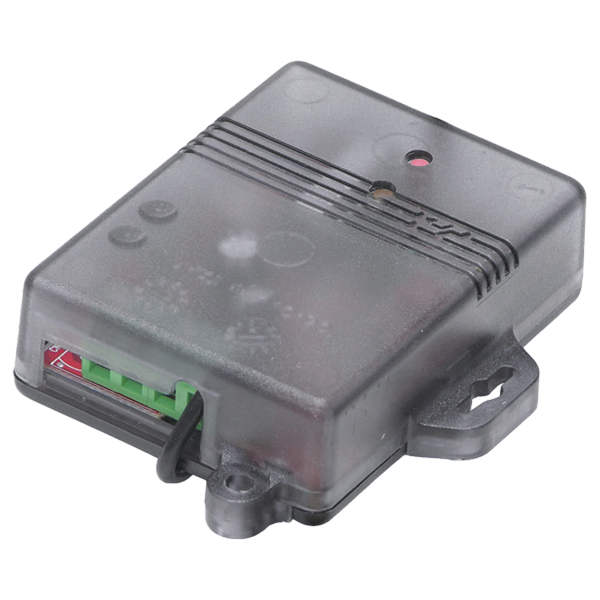

SECO-LARM - SK-910RAVQ - 1-Channel, 315MHz, Miniature RF Receiver with Transistor Ground Output
Part number:
SK-910RAVQ
Price:
- • Small size: 33/16“x29/16“x3/4” (80 x 65 x 19 mm)
- • Control garage doors, etc.
- • Four programmable relay output modes: 4-second momentary, 1-second momentary, toggle, and validity outputs
- • Flexible operating voltage: 3~13.8 VCC
- • Compatible with all 315MHz ENFORCER transmitters, including both fixed-code and code-hopping (CODEBUMPTM)
- • 433MHz (433.92MHz) available
- • LED Indicates RF reception, learn mode entered, transmitter learned, and memory cleared
- • Mode switches for easy transmitter learning
| Type | WIRELESS – 1-Channel Miniature RF Receiver with Transistor Ground Output |
| Operating voltage | 3~13.8 VDC |
| Output Mode | Transistor ground, 5A |
| Current Draw | 5mA standby, 15mA LED flashing @ 12VDC |
| Transmitter | Compatible with all ENFORCER 315MHz transmitters |
| Dimensions | 3-3/16″ x 2-9/16″ x 3/4″ (80 x 65 x 19 mm) |
Name
Description
Size
Downloads
File
Product Information Sheet
1mb
File
Manual
0.1mb
This mini RF receiver is compatible with both code hopping and fixed-code 315 MHz ENFORCER transmitters. See page 4 of the manual for a list of compatible transmitters. It can be used for a variety of applications, such as enabling the same transmitter to open and close a gate and a garage door. The receiver is available in one- or two-channel versions. Each channel can learn the codes of up to 15 different transmitter buttons.
